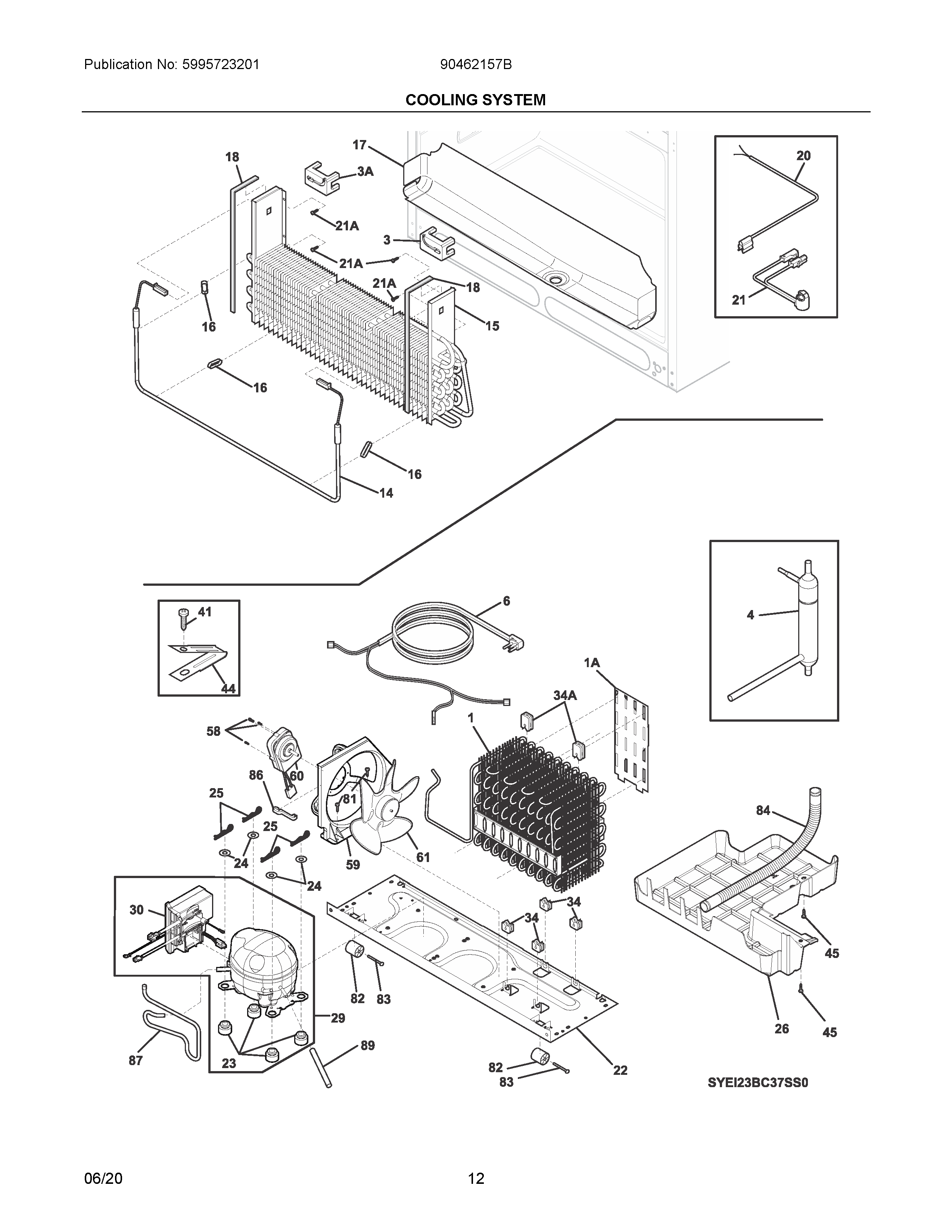

90462157B 06 – COOLING SYSTEM

90462157B 06 – COOLING SYSTEM

Written by

in

90462157B 06 – COOLING SYSTEM

Products

Position	Product
NI	218515401 Frigidaire Refrigerator Clip
NI	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
NI	TUBE-CONNECTOR, SUCTION
NI	241812301 Frigidaire Refrigerator Compressor Mount Washer
NI	5303918776 Frigidaire Refrigerator Thermistor
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NI	WCI 215346900
NI	240409302 Frigidaire Refrigerator Condenser Tube Spacer
NI	241838401 Frigidaire Refrigerator Block-Evaporator Coil
1	218709101 Frigidaire Refrigerator Handle Mounting Screw
4A	241947701 Frigidaire Refrigerator Spacer
4	241862903 Frigidaire Refrigerator Condenser
6	241987301 Frigidaire Refrigerator Deflector-Air
8	241510904 Frigidaire Refrigerator Dispenser Harness
14	241838402 Frigidaire Refrigerator Block-Evaporator Coil
14	5303305677 Frigidaire Replacement Filter Dryer Filters
15	241516904 Frigidaire Refrigerator Service Cord
16A	5304521779 Frigidaire Refrigerator Harness-Electrical
17	240356229 Frigidaire Refrigerator Defrost Heater
18	5303918410 Frigidaire Refrigerator Defrost Heater Kit
20	5303918569 Frigidaire Refrigerator Evaporator Kit
21A	241791201 Frigidaire Refrigerator Trough-Drain
21	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
22	241860101 Frigidaire Refrigerator Gasket
23	5304521781 Frigidaire Refrigerator Thermostat
23	5303918445 Frigidaire Refrigerator Heat Exchanger
24	242015001 Frigidaire Refrigerator Screw
25	241602112 Frigidaire Refrigerator Base Compressor
26A	218252201 Frigidaire Refrigerator Screw
29	218513300 Frigidaire Refrigerator Compressor Mount Grommet
30	242037702 Frigidaire Refrigerator Spring Clip
34	241920608 Frigidaire PAN-DEFROST
34A	241706201 Frigidaire Refrigerator Compressor
41A	5303918411 Frigidaire Refrigerator Compressor
44	241577505 Frigidaire Refrigerator Inverter
45	241929901 Frigidaire GROMMET-COND MTG
58	241929902 Frigidaire Condenser Mounting Grommet
59	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
60	5304455650 Frigidaire Refrigerator Screw
61	240569202 Frigidaire Refrigerator Screw
81	241946106 Frigidaire Refrigerator Shroud-Cond Fan
82A	240346701 Frigidaire Refrigerator Foam Seal Tape
83	MOTOR-CONDENSER FAN
84	241639502 Frigidaire Refrigerator Condenser Fan Blade
86	240335202 Frigidaire Refrigerator Roller
87	5304455655 Frigidaire Refrigerator Rivet
89	241830904 Frigidaire Refrigerator Drain Tube
