Products

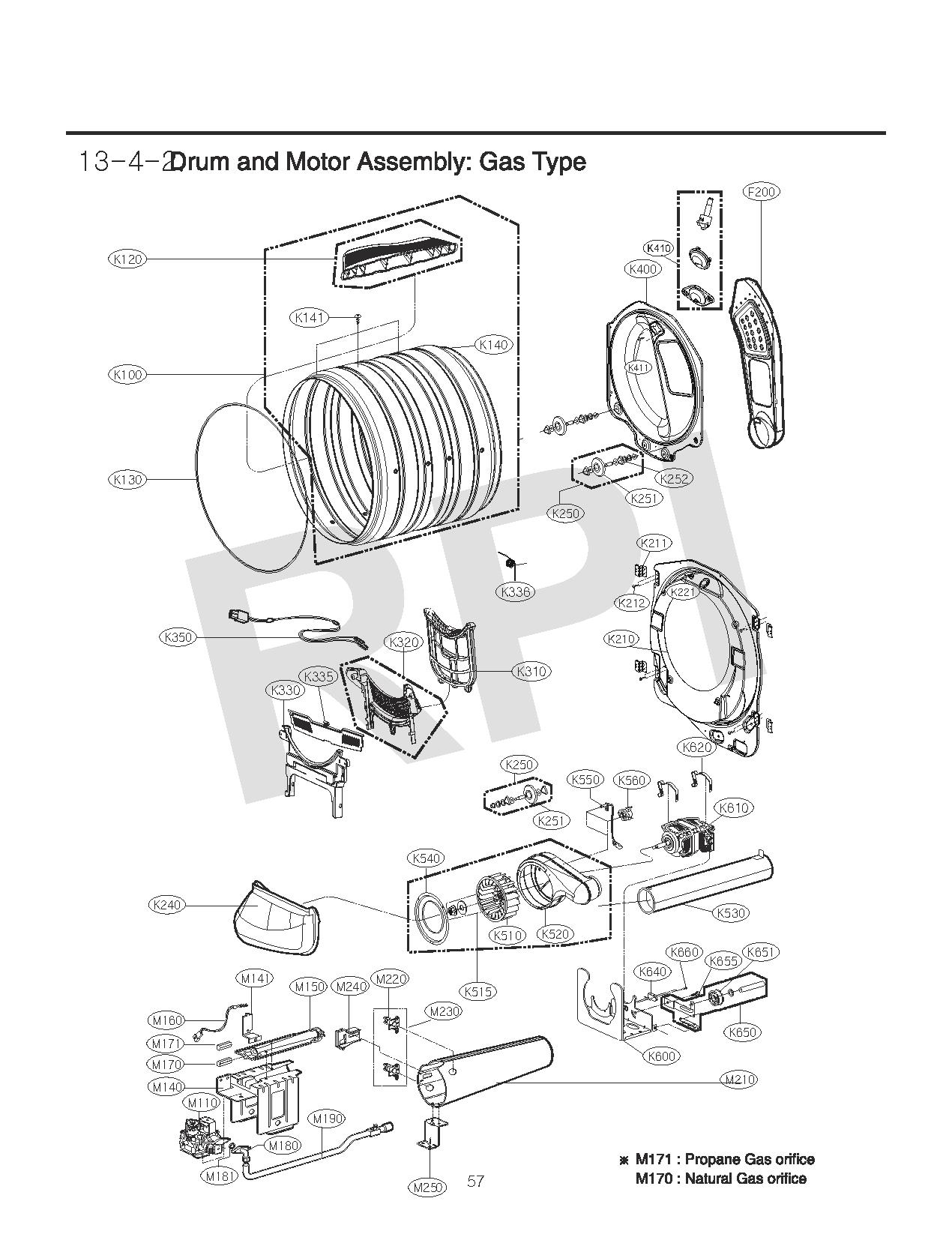

PositionProduct
F200ADJ73392903 LG Duct Assembly
M1404974EL1001A LG Dryer Burner Guide
M1105221EL2002A LG Dryer Gas Valve Assembly
K6104681EL1008G LG DC Drum Motor Assembly
K5305209EL1006F LG Duct Assembly
K400MJT62002901 LG Rear Drum Tub Assembly
K335MCK66826301 LG Filter Cover
K330MEA62790801 LG Filter Guide
K320MEA62770801 LG Guide Cover
K2121SBF0402418 LG Laptop Screw
K2114810EL3008A LG Tub Bracket
K210MJT62002801 LG Front Tub Drum
M1414810EL3002A LG Base Bracket
M1505201EL3001A LG Assembly Pipe
M2504980EL3001A LG Holder Supporter
M240SENSOR ASSY
M2306931EL3003C LG Thermostat
M2206931EL3004B LG Dryer High Limit Thermostat
M2103016EL1001A LG Funnel
M1905201EL2001A LG Pipe Assembly
M1814036EL3002A LG Gasket
M1804932EL4001A LG Pipe Connector
M171383EEL3002R LG Dryer Conversion Parts Assembly
M1704948EL4001B LG Dryer LP to Natural Gas Orifice Conversion
M1605318EL3001A LG Dryer Gas Igniter
K1404036EL3001B LG Gasket
K130BELT-POLY V
K120MFE61921001 LG Lifter
K2524W50100F LG Customized
K2514581EL3001M LG Roller Assembly
K2504581EL2002H LG Dryer Drum Roller Assembly
K1411FTF0503507 LG Screw Laptite
K6601TPL0303218 LG Tapping Screw
K6551SZZEL3001A LG Customized Screw
K6514560EL3001A LG Dryer Idler Pulley Wheel
K650PULLEY ASSY-MOTOR
K640EBF61734701 LG Dryer Micro Switch
K6204860EL3001A LG Dryer Blower Motor Clamp
K600MAZ66065301 LG Bracket Motor
K3364970EL4002C LG Dryer Distortion Spring
K410AGB34327803 LG Dryer Steam Nozzle Assembly
K100AJQ73274302 LG Drum Tub Assembly
K3506631EL3003F LG Harness Assembly
K310ADQ73373201 LG Dryer Lint Screen Filter Replacement Assembly
K240ADJ73372401 LG Duct Assembly
K4111SZZEL2001A LG Screw Customized
K221EAQ61400801 LG LED Lamp
K520MEK37661701 LG Blower Housing
K5506323EL2001B LG Dryer Thermistor Assembly
K5404975EL3001A LG Guide Assembly
K515HOUSING- BLOWER + HARDWARE
K5105835EL1002A LG Dryer Blower Fan Assembly
K5606931EL3002M LG Dryer Thermostat
