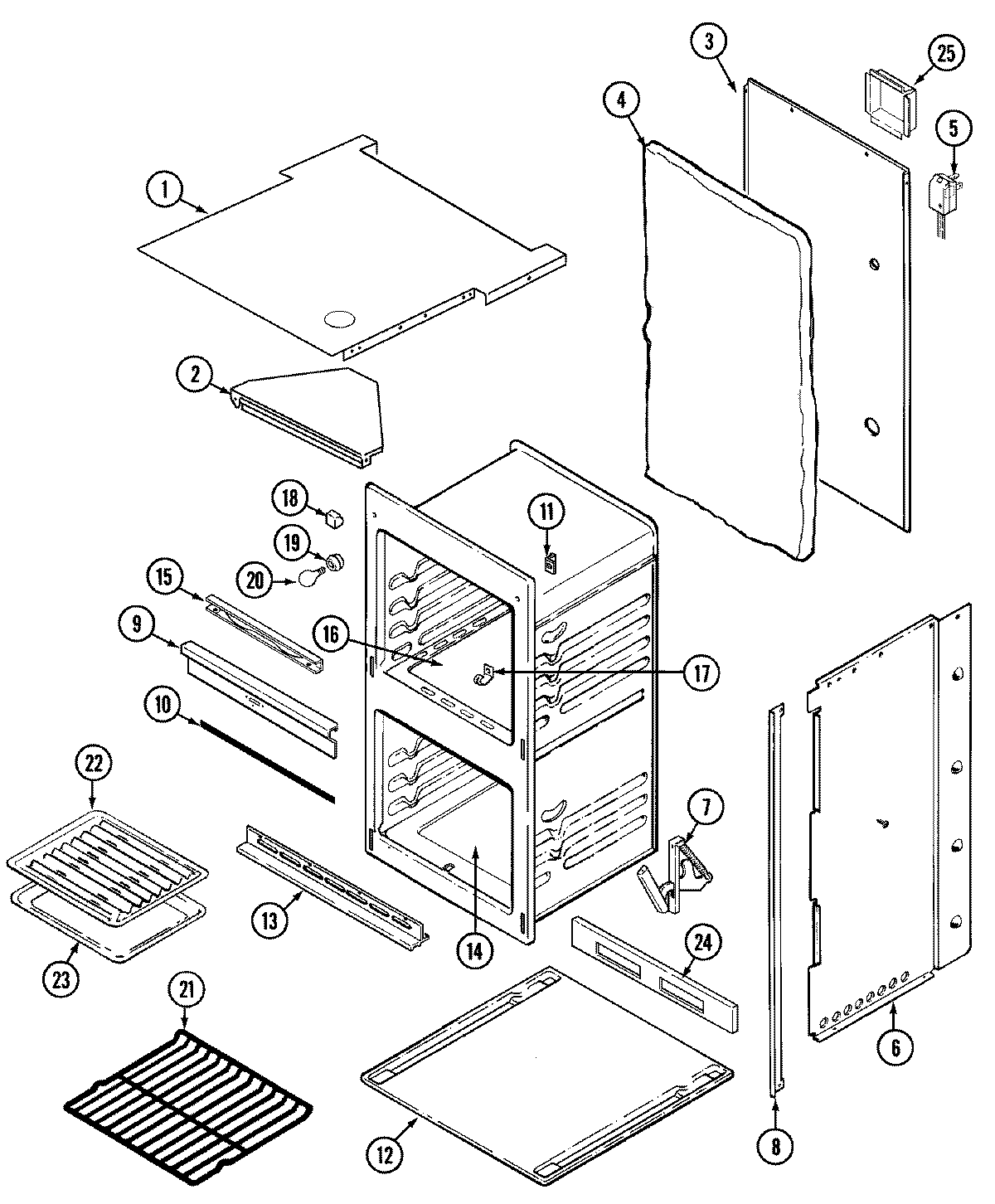

9122VUV 04 – OVEN/BODY
Written by
in
9122VUV 04 – OVEN/BODY
Products
Position
Product
1
MAY 7401P037-60
1
MAY 4005F152-51
1
MAY 8008P004-60
2
MAY 4006W077-19
3
MAY 74001988
4
MAY 74001850
4
MAY 74001883
5
MAY 74002963
5
MAY 74001926
6
MAY 2618F115-51
6
MAY 2618F116-51
7
WP4159193 Whirlpool Screw
7
74001856 Whirlpool Hinge Assembly
7
MAY 74001882
7
74004059 Whirlpool Door Hinge
8
MAY 74001880
8
MAY 74001881
8
NUT, SNAP (ROUND-WHT)
9
MAY 3601F109-45
9
MAY 7103P100-60
10
MAY 7212P014-60
11
MAY 7112P020-60
12
SCREW (10ABX1.0-ZN)
12
MAY 74001925
13
MAY 74001859
13
SCREW
14
MAY 2205F005-19
15
MAY 7101P058-60
15
MAY 3807F029-80
15
MAY 5720A011-23
16
MAY 74004661
16
MAY 2205F008-19
17
WP7112P004-60 Whirlpool Thermal Clip
17
MAY 4005F011-35
18
MAY 8003P009-60
19
MAY 7408P035-60
20
RANGE ONLY 40W 120V APPL BULB
21
MAY 7801P005-60
21
W10282521 Whirlpool Rack
22
MAY Y3413F01619
23
MAY Y3401F02019
24
MAY 3807F139-80
25
MAY 4005F088-80
25
MAY 7101P356-60
26
MAY 7111P007-60
27
MAY 7103P051-60
27
MAY 7103P040-60
←
