9475XVB 04 – DOOR (SER. PRE. 14) – Aparts

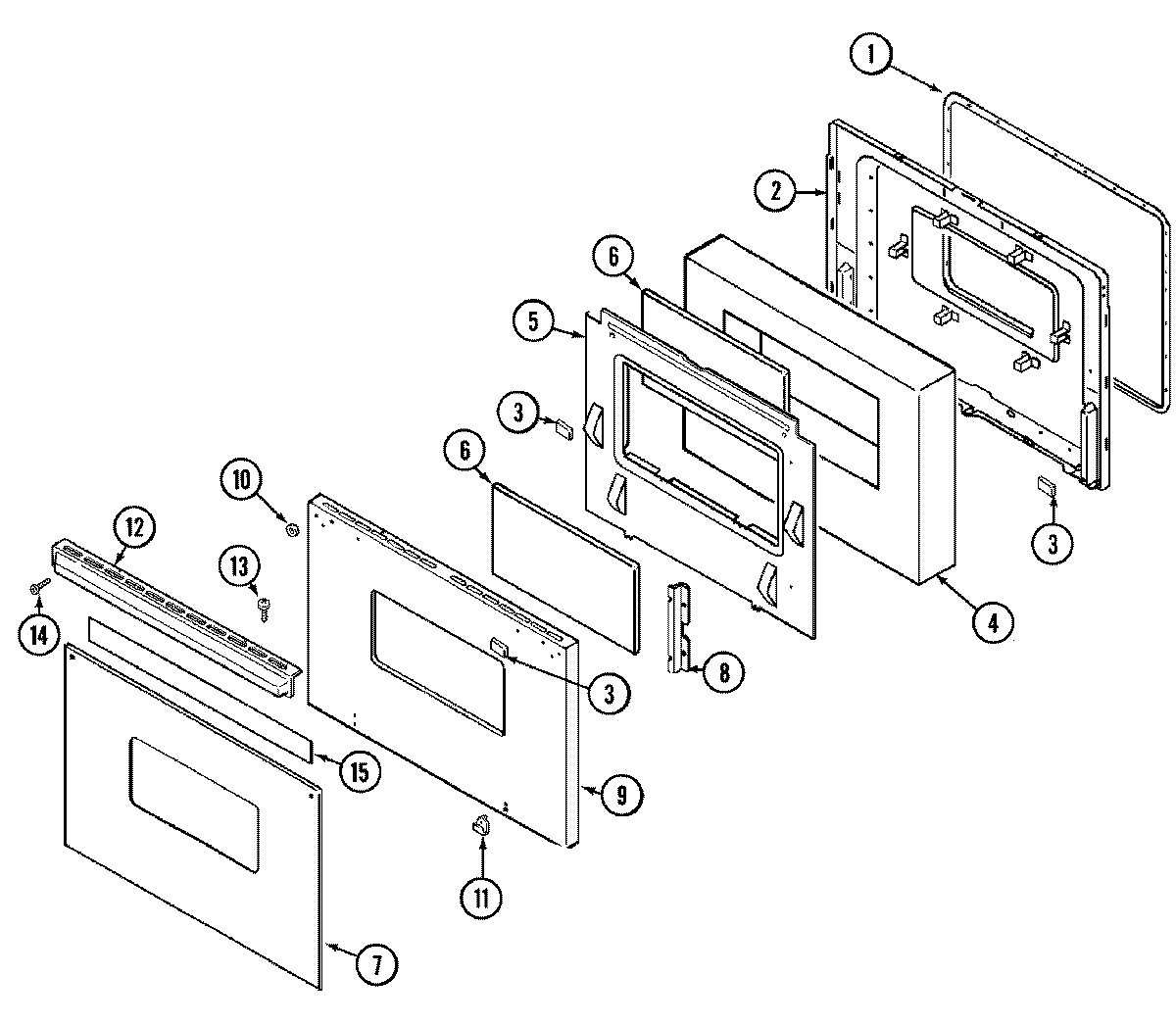

9475XVB 04 – DOOR (SER. PRE. 14)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 7902P350-60
8	MAY 74001844
9	SCREW
9	MAY 2401F123-70
10	MAY 8010P016-60
12	MAY 7701P120-60
13	WP98008545 Whirlpool Screw
14	MAY 7101P324-60
14	W10080180 Whirlpool Nut
15	TAPE, FOIL (3`` WIDE)
