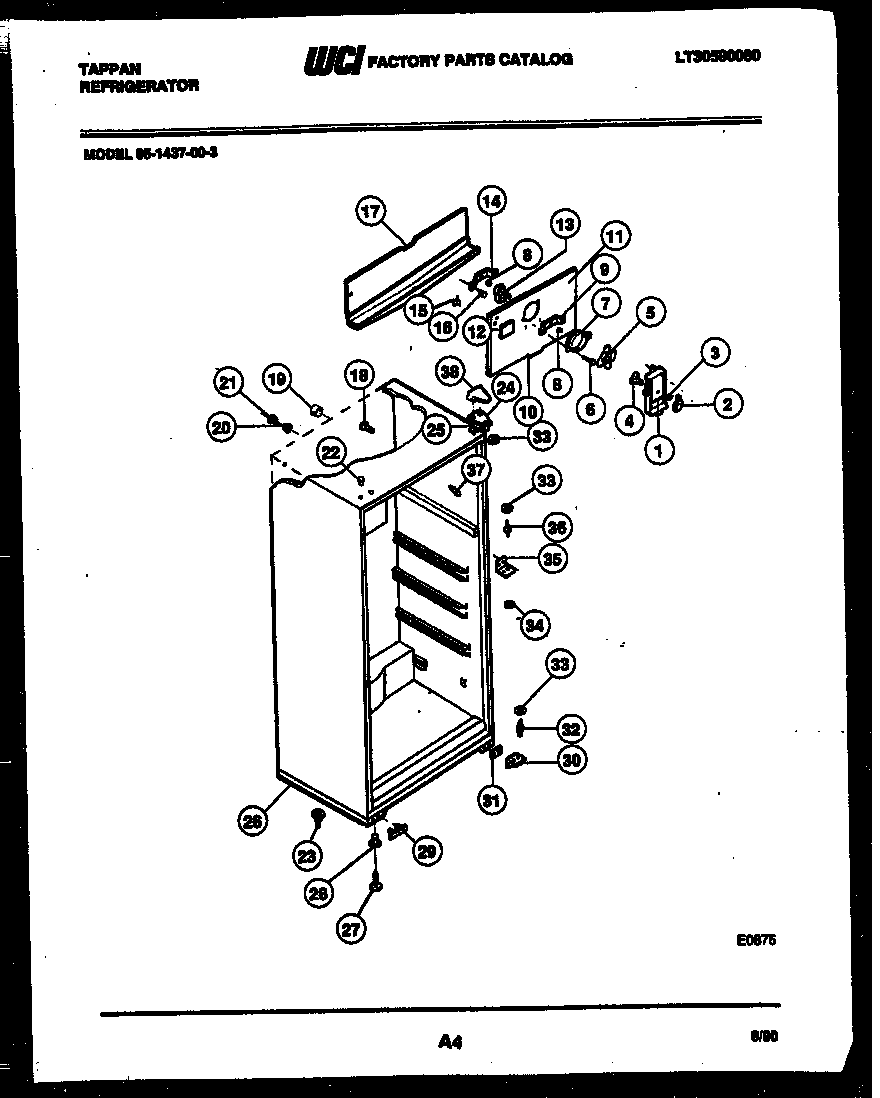

95-1437-00-03 03 – CABINET PARTS

Products

PositionProduct
*38348PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001334
2KNOB-DAMPER CONTROL
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
65304455650 Frigidaire Refrigerator Screw
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10WCI 3001358
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10A5308000133 Frigidaire Refrigerator Clamp
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 3001328
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
165304455651 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG, COFFEE
22BUTTON-HINGE-WHEAT
22BUTTON-HINGE-AVOCADO
22PLUG-BUTTON, WHITE
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23TUBE – DRAIN
24BRACKET-UPPER HINGE
25SHIM – UPPER HINGE
26WCI 5303006086
27SCREW-LEVELING (4)
28WCI 5308003584
29WCI 3001478
30HINGE – LOWER DOOR
30A241710601 Frigidaire Refrigerator Screw
30BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
31SHIM-LOWER HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WASHER, .34 X .62 X .05, NYLON
34WASHER, .28 X .62 X .19, NYLON
35AWCI 5308012258
35BWASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
35BRACKET-CTR HINGE
36WCI 5308000184
37CORNER TRIM, WHITE (4)
37CORNER TRIM-AVOC
37TRIM-CAB CORNER-WHEAT
37TRIM-CAB CORNER-ALMD
37CORNER TRIM, COFFEE (4)
38COVER-UPPER HINGE, ALMOND
38COVER-UPPER HINGE, WHITE
38WCI 5303001666
38COVER – HINGE-WHEAT
38COVER-HINGE-AVOCADO
