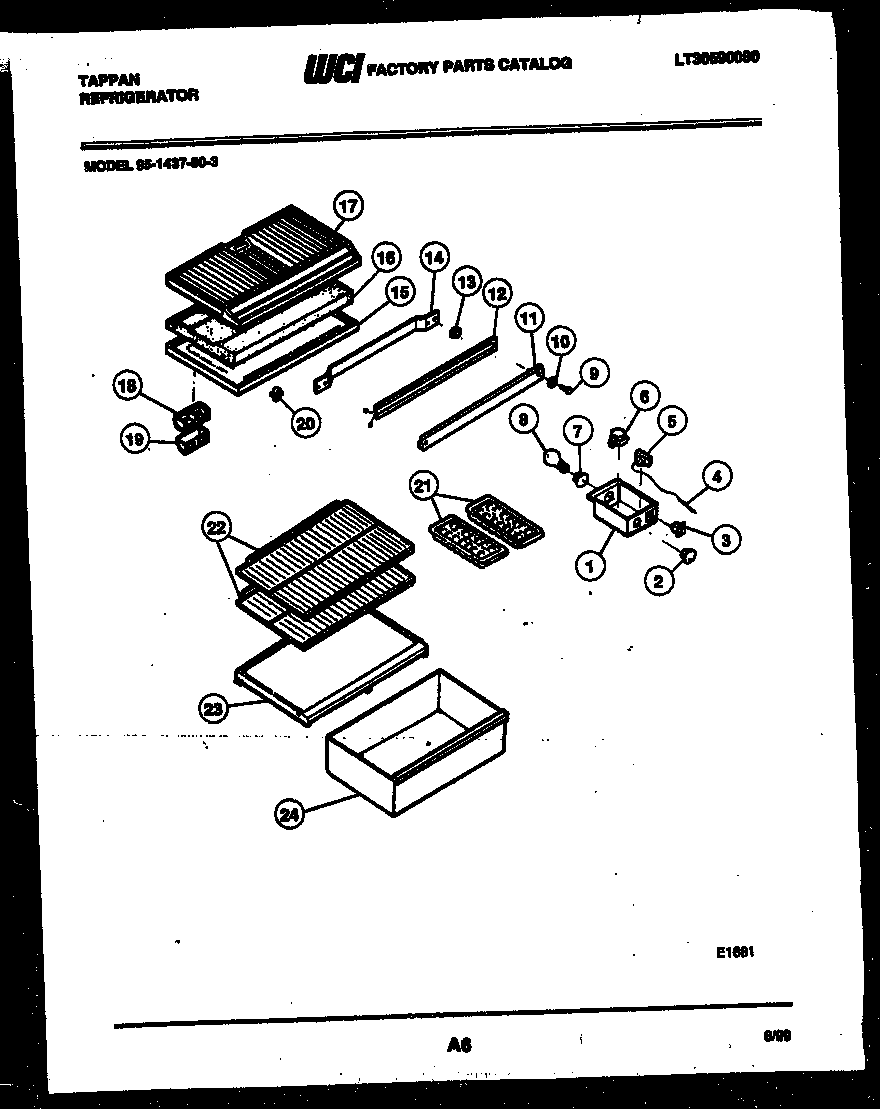

95-1437-23-03 04 – SHELVES AND SUPPORTS

95-1437-23-03 04 – SHELVES AND SUPPORTS

Written by

in

95-1437-23-03 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1ALABEL-CONTROL BOX
1WCI 3001545
2WCI 3001335
3SWITCH-ENERGY SAVER, SLIDE TYPE
4TUBE
5WCI 5308015762
5AWCI 5303001260
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
6A5304455649 Frigidaire Refrigerator Screw
7SOCKET-LIGHT/LAMP
8316538904 Frigidaire Oven Lamp Light
9WCI 5308012258
10WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
11WCI 5303916134
12WCI 5308017408
13WCI 3001370
14WCI 5308003604
15TOP PANEL-REFR, W/ SNAP BUSHING
15AWCI 5303001380
16AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
16WCI 5308000759
17WCI 5308000748
18DEFLECTOR-AIR
19COVER – AIR DEFLECTOR
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22SHELF-SLIDING, REFR, (2)
23COVER-CRISPER PAN
24WCI 3001541
