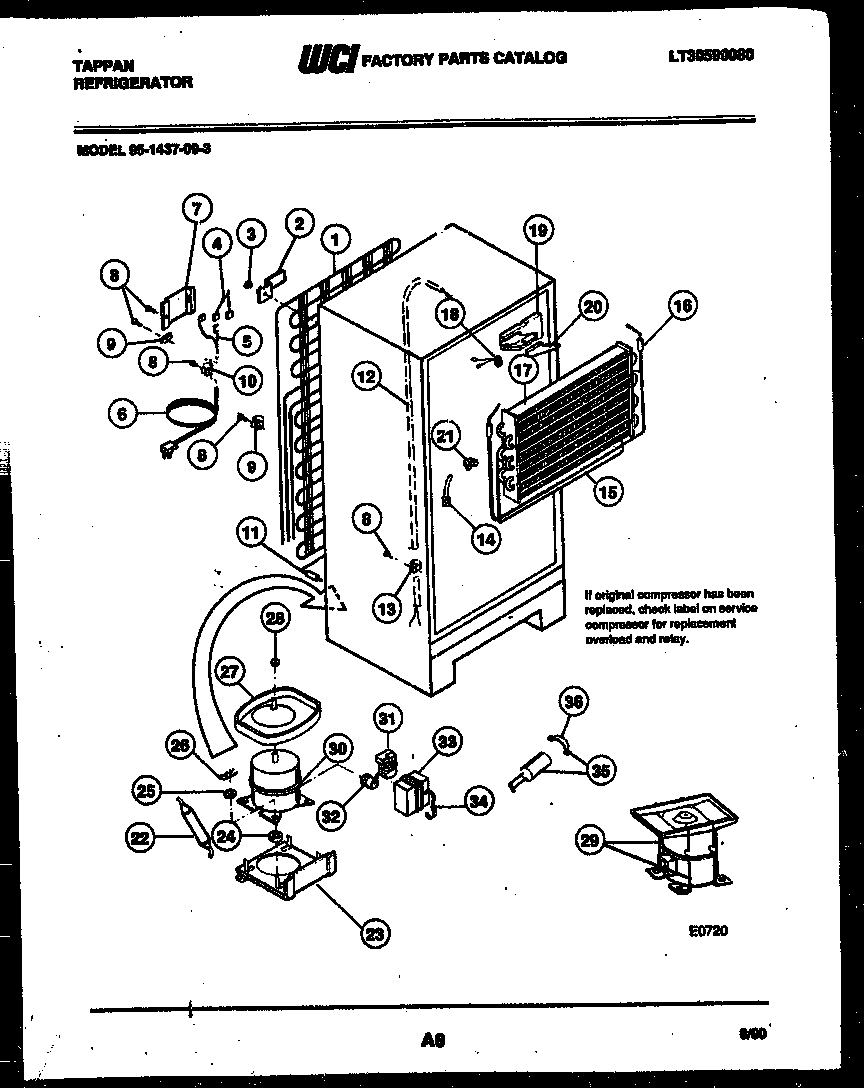

95-1437-23-03 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*38356WCI 530817610
*38356HOT TUBE REPAIR KIT-SERVICE
1WCI 5303001341
2BRACKET-MTG (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303017691 Frigidaire Refrigerator Spacer-Tube
12HEAT EXCHANGER, SUCTION LINE
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15INSULATOR-EVAP, PLASTIC
16WCI 5303001362
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19INSULATION BLOCK, RH
20INSULATION PLUG, RH
21INSULATION BLOCK, LH
22AWCI 3201679
225303305677 Frigidaire Replacement Filter Dryer Filters
22B218843801 Frigidaire Refrigerator Screw
23WCI 5308009596
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30COMPRESSOR W/ ELEC
31RELAY-TL
32WCI 5303001713
345303006412 Frigidaire Refrigerator Cover Mounting Strap
35CAPACITOR
36STRAP CAPACITOR
