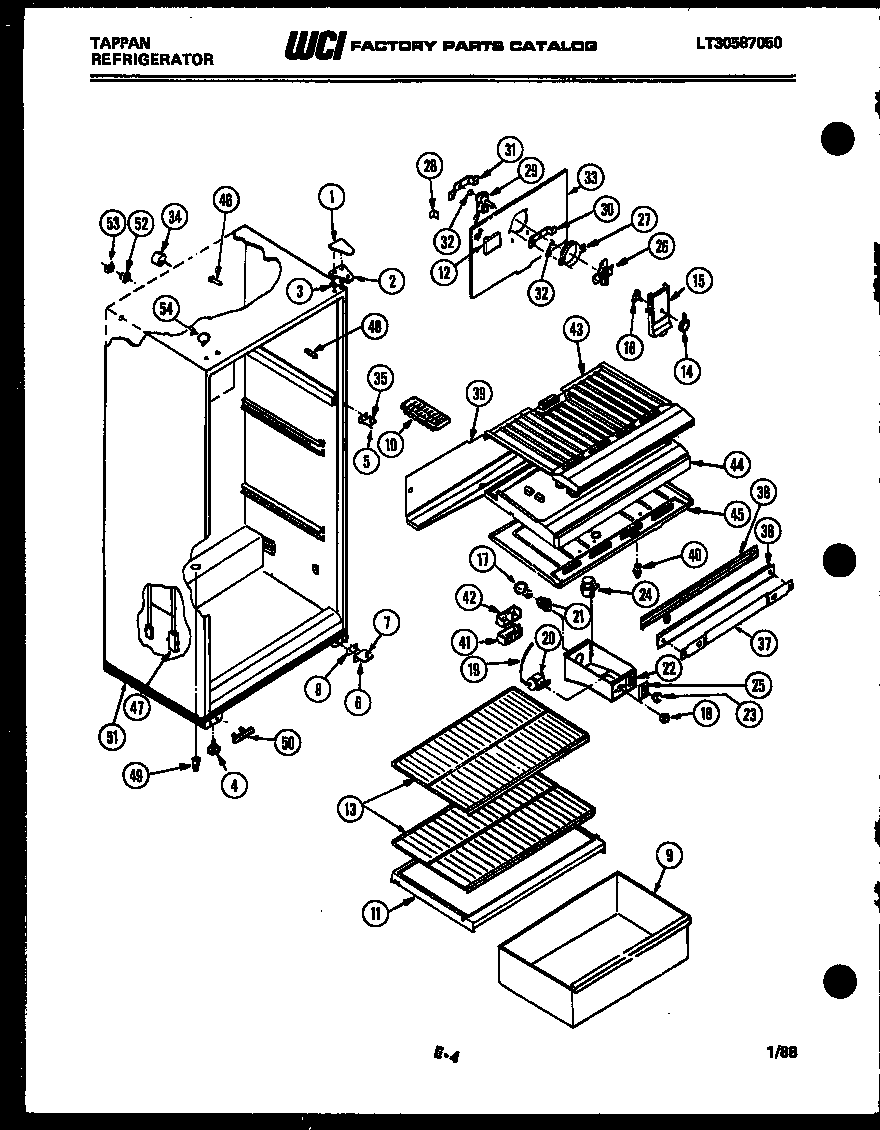

95-1437-45-01 03 – CABINET PARTS

Products

Position	Product
1	COVER HINGE-COFFEE
2	WCI 3001298
2A	WCI 3001299
3	SHIM-TOP HINGE
4A	WCI 3001412
4	WCI 3001301
5	PIN-CENTER HINGE
5A	WCI 3001038
6	HINGE BRACKET BOTTOM
7	5303001321 Frigidaire Refrigerator Lower Hinge Pin
8A	WCI 3007090
8	SHIM-BOTTOM HINGE
9	WCI 3001541
10	215667501 Frigidaire Refrigerator Ice Tray Primary
11	WCI 3001327
12	WCI 3001328
13	WCI 3001542
14	KNOB, DAMPER CONT.
15	WCI 3001544
16A	WCI 3001028
16	WCI 3001331
17	316538904 Frigidaire Oven Lamp Light
18	WCI 3001335
19	TUBE
20	CONTROL-TEMPERATURE
20A	5304455649 Frigidaire Refrigerator Screw
21	WCI 3001267
22A	SCREW-MOUNTING (NON-ILLUSTRATED)
22	WCI 3001545
23	WCI 3001670
24	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25	WCI 3001339
26	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
27	WCI 3001217
28A	5304455651 Frigidaire Refrigerator Screw
28	BRACKET-CONNECTOR
29	5300158289 Frigidaire Evaporator Fan Motor
30	WCI 3001226
31	WCI 3001227
32	G187559 Frigidaire Refrigerator Bushing
33	WCI 3001358
34	WCI 3001198
35	HINGE BRACKET CENTER
35A	WCI 3006446
36	MULLION-COFFEE
36	WCI 3001370
37	WCI 3001373
38	WCI 3007419
39	WCI 3001374
40	5309918806 Frigidaire Refrigerator Light Switch Door
41	WCI 3001546
42	WCI 3001378
43	WCI 3001379
44	WCI 3001381
45A	SCREW MOUNTING (3) (NON-ILLUSTRATED)
45	TOP, REFRIGERATOR
46	SUPPORT COIL COVER
47	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
48	CORNER TRIM-COFFEE
49	WCI 3001386
50	WCI 3001478
51	WCI 3006086
52	WCI 3001286
53	WCI 3001287
54	BUTTON, PLUG, ALMD (2)
54	PLUG HINGE-WHITE
