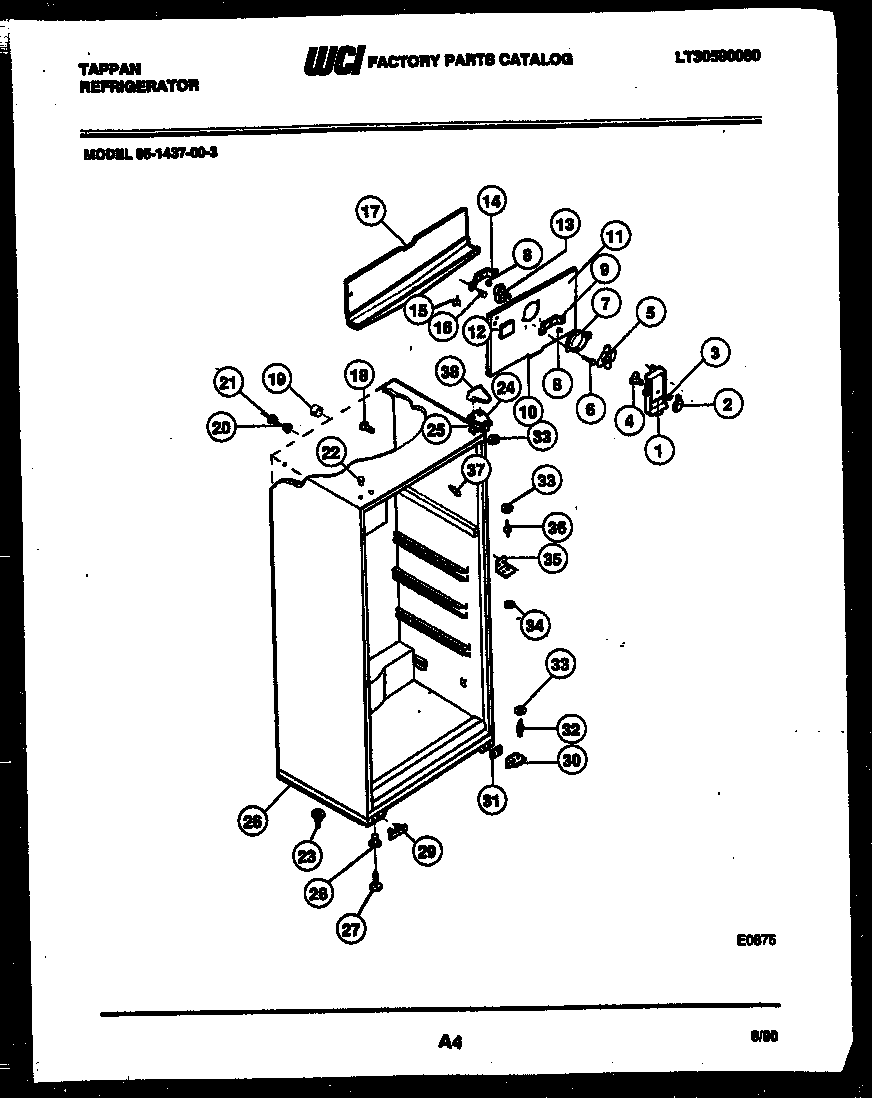

95-1437-45-03 03 – CABINET PARTS

Products

Position	Product
*38348	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001334
2	KNOB-DAMPER CONTROL
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455650 Frigidaire Refrigerator Screw
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303001226
10	WCI 3001358
10B	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10A	5308000133 Frigidaire Refrigerator Clamp
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15	WCI 5308000107
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG, COFFEE
23	TUBE - DRAIN
24	BRACKET-UPPER HINGE
25	SHIM - UPPER HINGE
26	WCI 5303006086
27	SCREW-LEVELING (4)
28	WCI 5308003584
29	WCI 3001478
30	HINGE - LOWER DOOR
30A	241710601 Frigidaire Refrigerator Screw
30B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
31	SHIM-LOWER HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WASHER, .34 X .62 X .05, NYLON
34	WASHER, .28 X .62 X .19, NYLON
35	BRACKET-CTR HINGE
35A	WCI 5308012258
35B	WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
36	WCI 5308000184
37	CORNER TRIM, COFFEE (4)
38	WCI 5303001666
