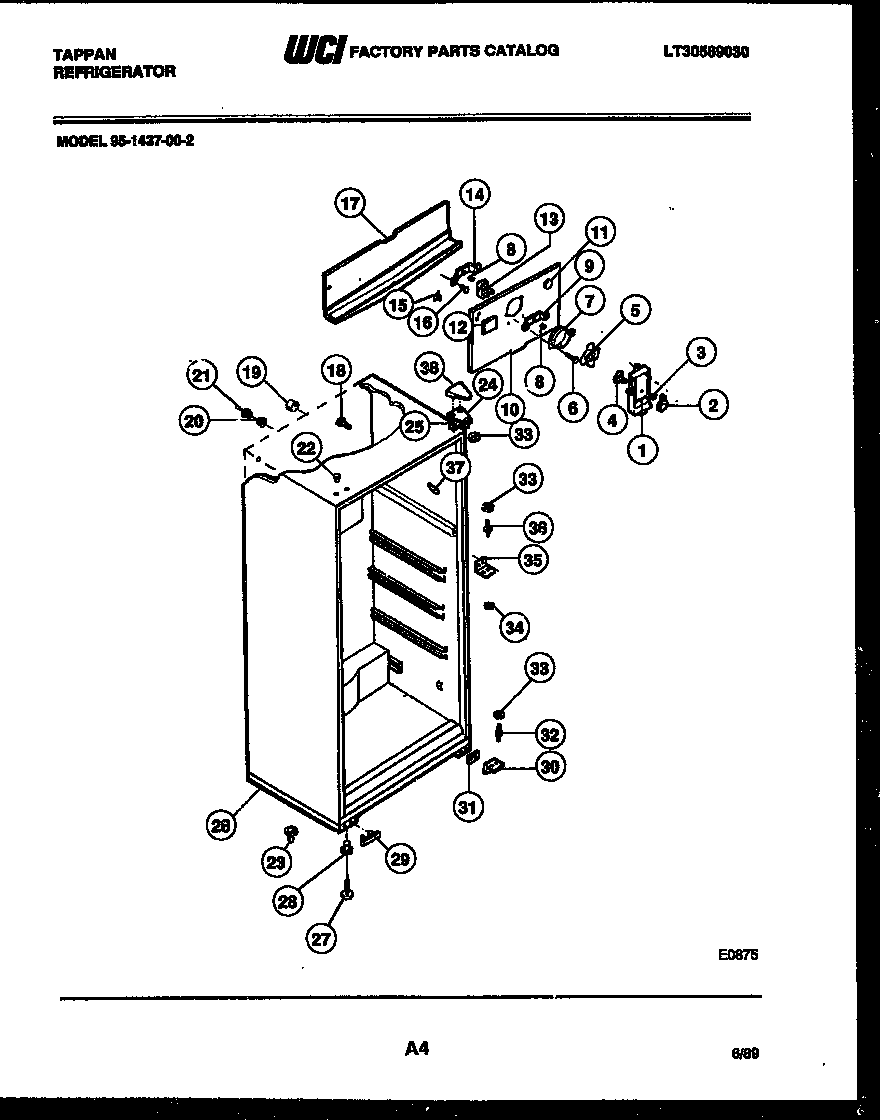

95-1437-57-02 03 – CABINET PARTS

Products

Position	Product
*88442	BUTTON, LINER
1	WCI 3001544
2	KNOB, DAMPER CONT.
3	WCI 3001028
4	WCI 3001331
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455650 Frigidaire Refrigerator Screw
7	WCI 3001217
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 3001226
10	WCI 3001358
10A	240396801 Frigidaire Refrigerator Tube Clamp
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 3001227
15	BRACKET-CONNECTOR
16	5304455651 Frigidaire Refrigerator Screw
17	WCI 3001374
18	SUPPORT COIL COVER
19	WCI 3001198
20	WCI 3001286
21	WCI 3001287
22	PLUG HINGE-AVOCADO
23	WCI 3001386
24	WCI 3001298
25	SHIM-TOP HINGE
26	WCI 3006086
27	WCI 3001301
28	WCI 3001412
29	WCI 3001478
30B	WCI 3007090
30	HINGE BRACKET BOTTOM
30A	241710601 Frigidaire Refrigerator Screw
31	SHIM-BOTTOM HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI 3001299
34	WCI 3001038
35B	WCI 3006446
35A	SCREW, HINGE (4) NO. 10-24 X 7/8
35	HINGE BRACKET CENTER
36	PIN-CENTER HINGE
37	CORNER TRIM-AVOCADO
38	COVER HINGE-AVOCADO
