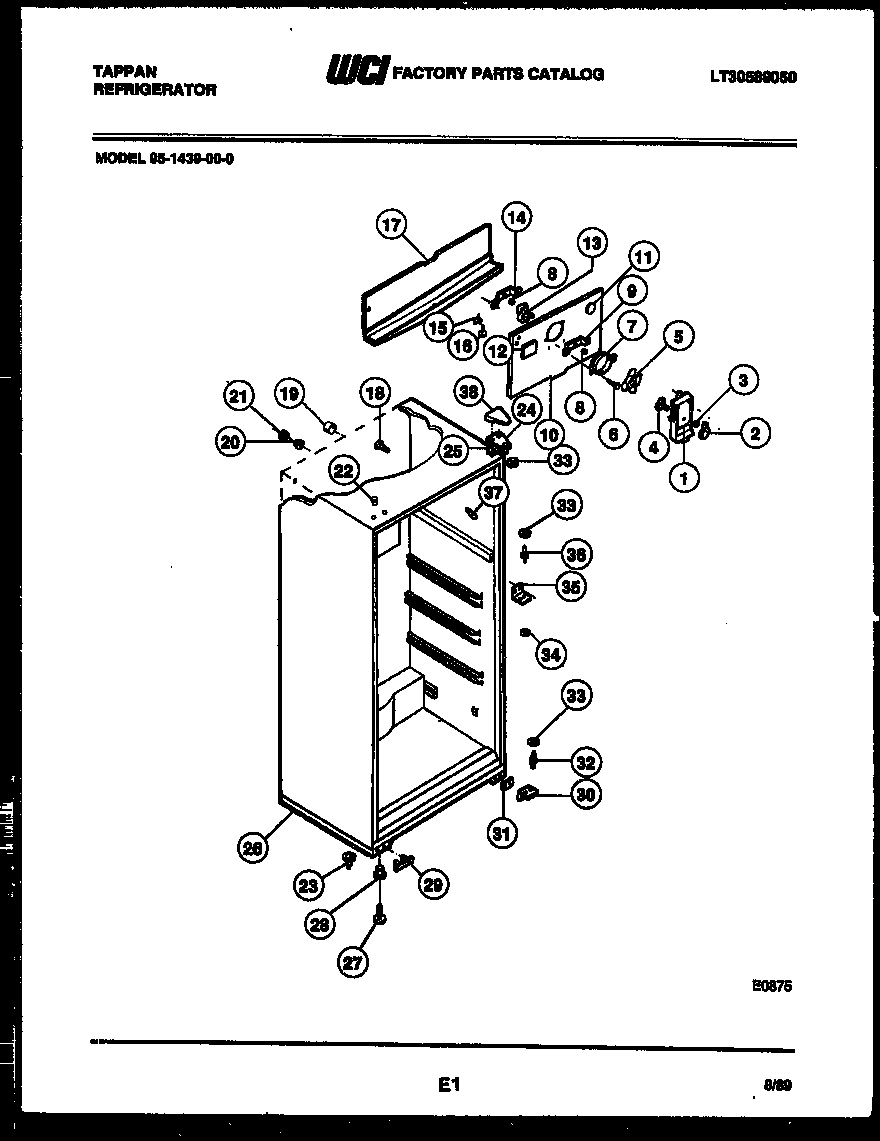

95-1439-00-00 03 – CABINET PARTS

Products

Position	Product
*28116	BUTTON, LINER
1	WCI 3001544
2	KNOB, DAMPER CONT.
3	WCI 3001028
4	WCI 3001331
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	WCI 3001217
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 3001226
10C	WCI 08000126
10A	240396801 Frigidaire Refrigerator Tube Clamp
10	WCI 3001358
10B	5304455650 Frigidaire Refrigerator Screw
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 3001227
15	BRACKET-CONNECTOR
16	218843801 Frigidaire Refrigerator Screw
17	WCI 3001374
18	SUPPORT COIL COVER
19	WCI 3001198
20	WCI 3001286
21	WCI 3001287
22	PLUG HINGE-WHITE
23	WCI 3001386
24A	TAPPING PLATE (2)
24	WCI 3001298
25	SHIM-TOP HINGE
26	WCI 3006086
27	WCI 3001301
28	WCI 3001412
29	WCI 3001478
30A	241710601 Frigidaire Refrigerator Screw
30	HINGE BRACKET BOTTOM
30B	WCI 3007090
31	SHIM-BOTTOM HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI 3001299
34	WCI 3001038
35A	SCREW, HINGE (4) NO. 10-24 X 7/8
35B	WCI 3006446
35	HINGE BRACKET CENTER
36	PIN-CENTER HINGE
37	CORNER TRIM-WHITE
38	COVER, HINGE-WHITE
