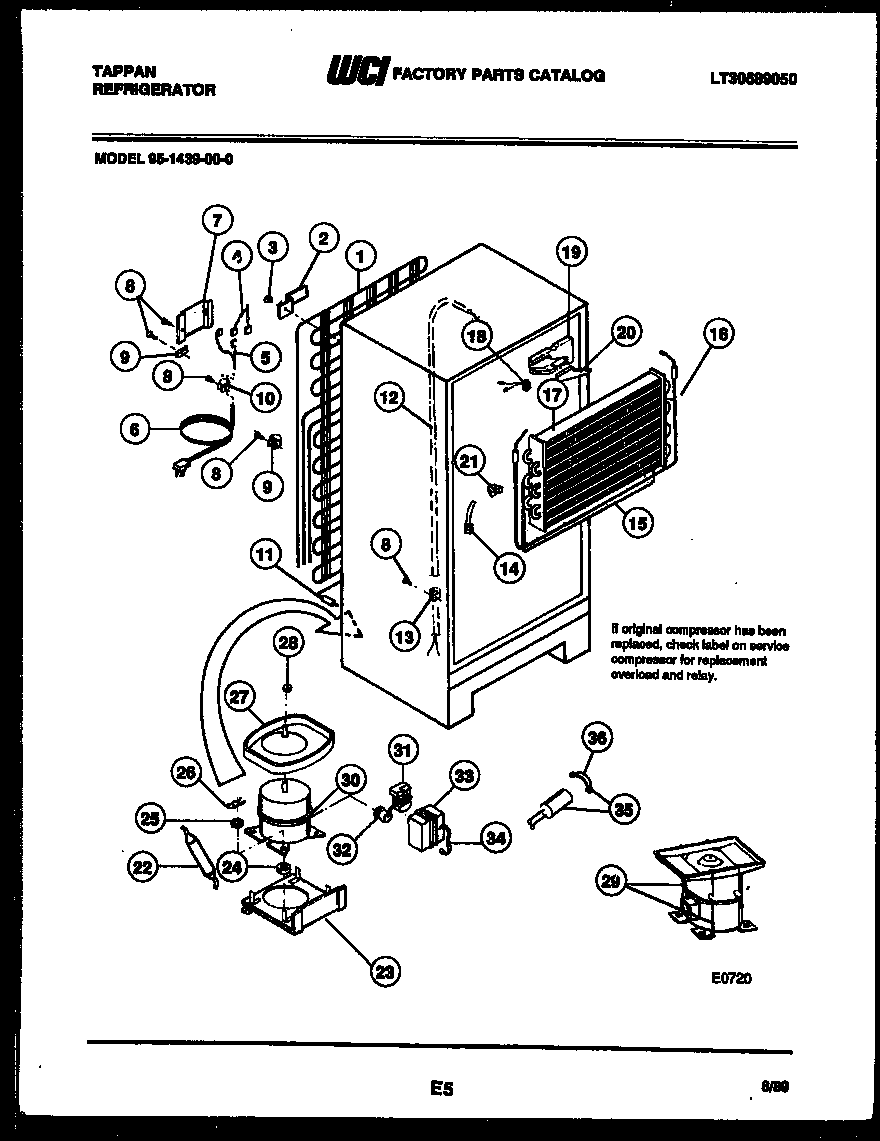

95-1439-00-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*28122	HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1	WCI 3001341
2	BRACKET-CONDENSER MOUNTING (4)
3	5308000039 Frigidaire Refrigerator Screw
3A	WASHER
4	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5	HARNESS-COMPRESSOR
6	WCI 3001200
7	WCI 3001197
8	5304455651 Frigidaire Refrigerator Screw
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
11	5303017691 Frigidaire Refrigerator Spacer-Tube
12	EXCHANGER-HEAT
13	240396801 Frigidaire Refrigerator Tube Clamp
14	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15	INSUL. EVAP.
16	WCI 3001362
17	EVAPORATOR
18	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19	BLOCK-EVAPORATOR RH
20	PLUG-EVAPORATOR INSULATION RH
21	BLOCK-EVAPORATOR LH
22	5303305677 Frigidaire Replacement Filter Dryer Filters
22B	218843801 Frigidaire Refrigerator Screw
22A	WCI 3201679
23	PLATE-COMPRESSOR MOUNTING
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WASHER-COMPRESSOR MOUNTING (4)
26	CLIP-COMPRESSOR MOUNTING (4)
27	WCI 3001349
27A	DEFROST PAN & NUT
28	WCI 3001348
29	PAN RETAINER KIT-SERVICE
30	WCI 3916004
30A	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
31	WCI 3007173
32A	WCI 3202891
32	WCI 3202863
33	WCI 08016583
34	STRAP-BALE
35	CAPACITOR-RUN
36	WCI 3001391
