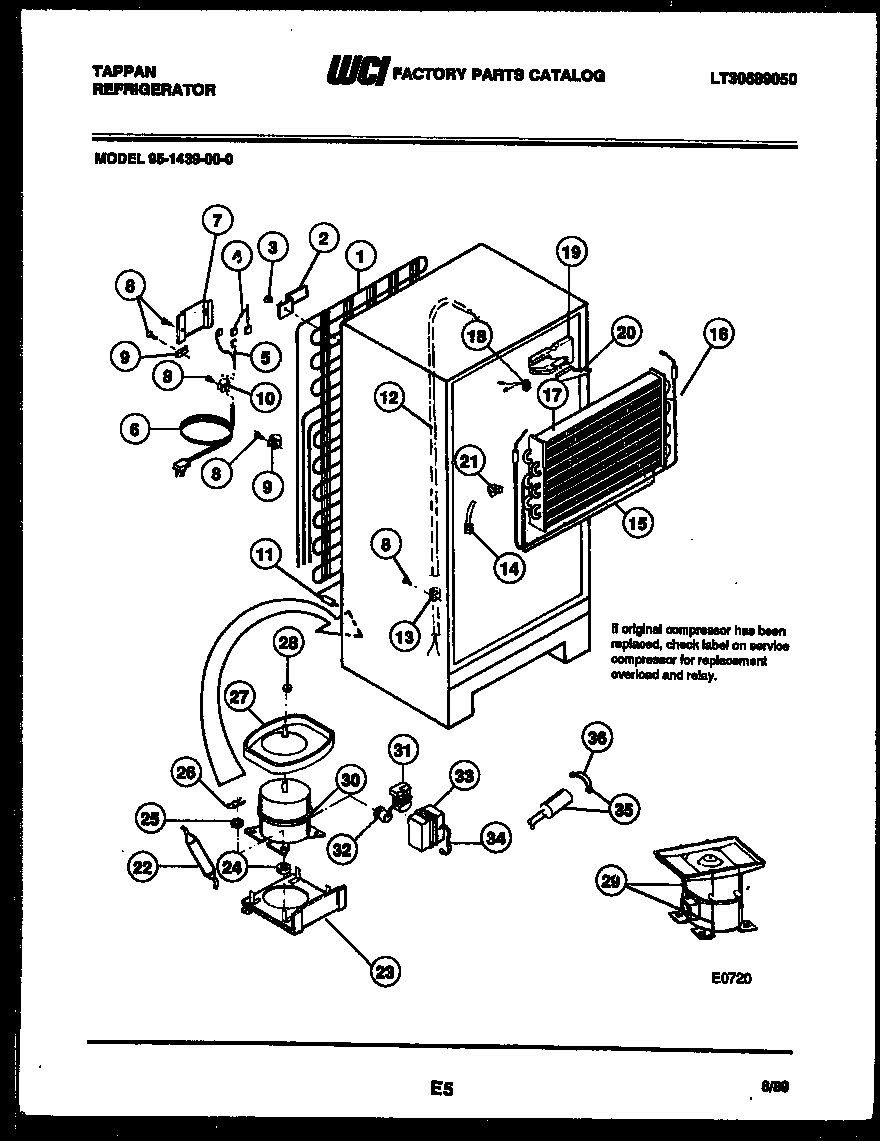

95-1439-23-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

95-1439-23-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

95-1439-23-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*28122HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
1WCI 3001341
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
3AWASHER
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5HARNESS-COMPRESSOR
6WCI 3001200
7WCI 3001197
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303017691 Frigidaire Refrigerator Spacer-Tube
12EXCHANGER-HEAT
13240396801 Frigidaire Refrigerator Tube Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15INSUL. EVAP.
16WCI 3001362
17EVAPORATOR
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19BLOCK-EVAPORATOR RH
20PLUG-EVAPORATOR INSULATION RH
21BLOCK-EVAPORATOR LH
225303305677 Frigidaire Replacement Filter Dryer Filters
22B218843801 Frigidaire Refrigerator Screw
22AWCI 3201679
23PLATE-COMPRESSOR MOUNTING
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPRESSOR MOUNTING (4)
26CLIP-COMPRESSOR MOUNTING (4)
27WCI 3001349
27ADEFROST PAN & NUT
28WCI 3001348
29PAN RETAINER KIT-SERVICE
30WCI 3916004
30A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
31WCI 3007173
32AWCI 3202891
32WCI 3202863
33WCI 08016583
34STRAP-BALE
35CAPACITOR-RUN
36WCI 3001391
