95-1487-00-1 02 – FOOD AND FREEZER DOORS

95-1487-00-1 02 – FOOD AND FREEZER DOORS

Written by

in

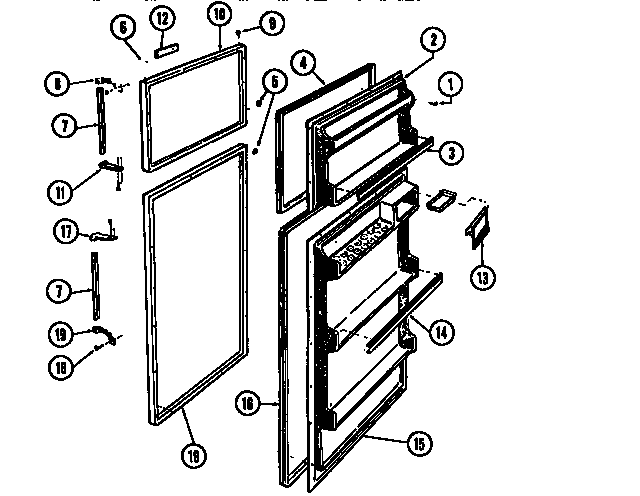

95-1487-00-1 02 – FOOD AND FREEZER DOORS

Products

PositionProduct
15304455651 Frigidaire Refrigerator Screw
2INNER PANEL-FRZR
3WCI 3001611
4GASKET-FREEZER
5BUTTON, PLUG HNDL. HOLE (6) ALMOND
6BUTTON, PLUG HNG. HOLE (2) ALMOND
6PLUG BUTTON-WHITE
7GRIP-HANDLE (2)
8WCI 3001297
9WCI 3001021
10PANEL FREEZER-WHITE
10PNL. O.D. ALMOND
12WCI 3001312
13DAIRY DOOR
14RACK-FREEZER LOWER
15INNER PANEL-REFR
16GASKET-REFRIGERATOR
17WCI 3001296
18SCREW HANDLE (8)
19PANEL-REFRIGERATOR-WHITE
19PNL. O.D. (ALMOND)
