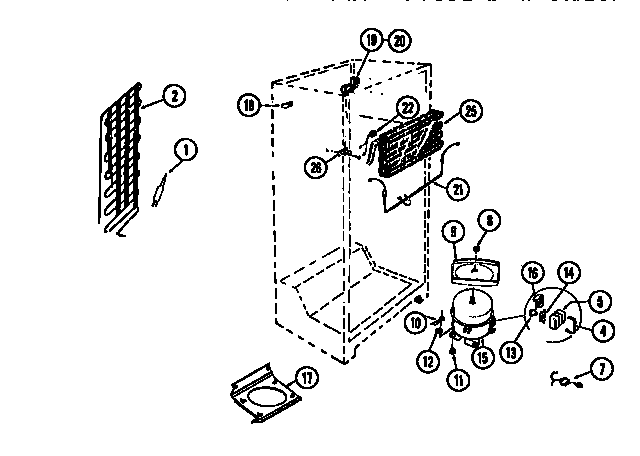

95-1487-23-1 03 – COMPRESSOR, CONDENSER, EVAPORATOR

95-1487-23-1 03 – COMPRESSOR, CONDENSER, EVAPORATOR

Written by

in

95-1487-23-1 03 – COMPRESSOR, CONDENSER, EVAPORATOR

Products

PositionProduct
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 3001341
3BRACKET-CONDENSER MOUNTING (4)
35304455651 Frigidaire Refrigerator Screw
45303006412 Frigidaire Refrigerator Cover Mounting Strap
55303001199 Frigidaire Refrigerator Wiring Harness Clamp
6WCI 3001197
7WCI 3001200
8HARNESS-COMPRESSOR
8WCI 3001348
9WCI 3001349
10CLIP-COMPRESSOR MOUNTING (4)
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12WASHER-COMPRESSOR MOUNTING (4)
13OVERLOAD (NON-ILLUSTRATED)
14WCI 3001353
15COMPRESSOR W/ ELECTRICALS
16WCI 3001355
17PLATE-COMPRESSOR MOUNTING
18WCI 3001359
19BLOCK-EVAPORATOR RH
20PIN-PUSH
21WCI 3001362
225303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23WCI 3001364
24WCI 3001365
25WCI 3001366
265308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
