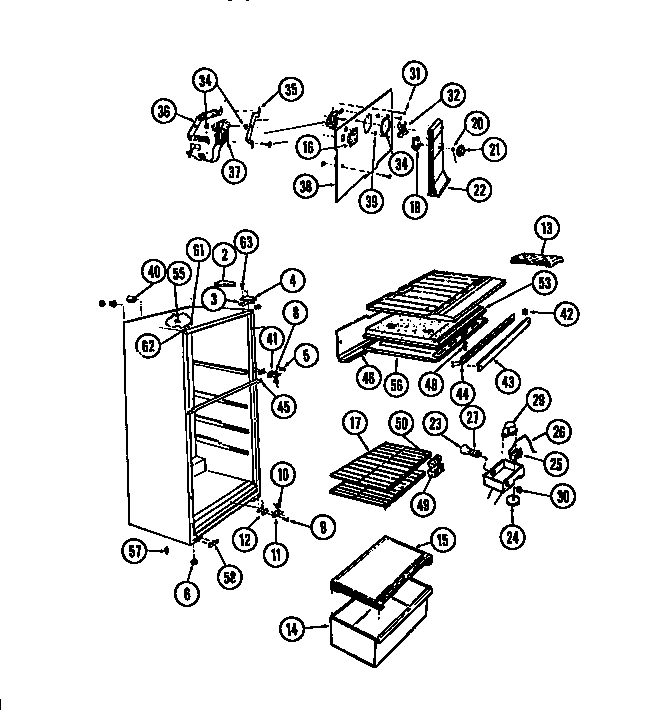

95-1487-23-1 04 – FOOD COMPARTMENT, SHELVES, BLOWER M

Products

Position	Product
1	WCI 3001298
2	COVER, HINGE-WHITE
3	SHIM-TOP HINGE
4	WCI 3001299
5	WCI 3001038
6	WCI 3001301
7	WCI 3001412
8	PIN-CENTER HINGE
9	241710601 Frigidaire Refrigerator Screw
10	5303001321 Frigidaire Refrigerator Lower Hinge Pin
11	HINGE BRACKET BOTTOM
12	SHIM-BOTTOM HINGE
13	215667501 Frigidaire Refrigerator Ice Tray Primary
14	WCI 3001541
15	WCI 3001327
16	WCI 3001328
17	WCI 3001542
18	SCREW, HINGE (4) NO. 10-24 X 7/8
19	WCI 3001331
20	WCI 3001332
21	KNOB, DAMPER CONT.
22	WCI 3001544
23	316538904 Frigidaire Oven Lamp Light
24	WCI 3001335
25	CONTROL-TEMPERATURE
26	5304455649 Frigidaire Refrigerator Screw
26	WCI 3001263
27	WCI 3001267
28	WCI 3001545
29	215846604 Frigidaire Refrigerator Defrost Timer
30	SWITCH, SLIDE
30	WCI 3001339
31	5304455651 Frigidaire Refrigerator Screw
32	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
33	WCI 3001217
34	G187559 Frigidaire Refrigerator Bushing
35	WCI 3001226
36	WCI 3001227
37	5300158289 Frigidaire Evaporator Fan Motor
38	WCI 3001358
39	WCI 3001220
40	WCI 3001198
41	HINGE BRACKET CENTER
42	WCI 3001370
43	MULLION-WHITE
44	HEATER MULLION
45	WCI 3001373
46	WCI 3001374
47	INSUL. EVAP.
48	5309918806 Frigidaire Refrigerator Light Switch Door
49	WCI 3001546
50	WCI 3001378
51	WCI 3001379
52	SCREW MOUNTING (3) (NON-ILLUSTRATED)
53	WCI 3001381
54	HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
54	TOP, REFRIGERATOR
55	SUPPORT COIL COVER
56	CORNER TRIM-WHITE
56	BUTTON, PLUG LINER (NON-ILLUSTRATED)
56	TRIM, CAB. CORNER ALMD (4)
57	WCI 3001386
58	BUTTON, PLUG
59	WCI 3001286
60	WCI 3001287
61	PLUG HINGE-WHITE
62	BUTTON, PLUG, ALMD (2)
