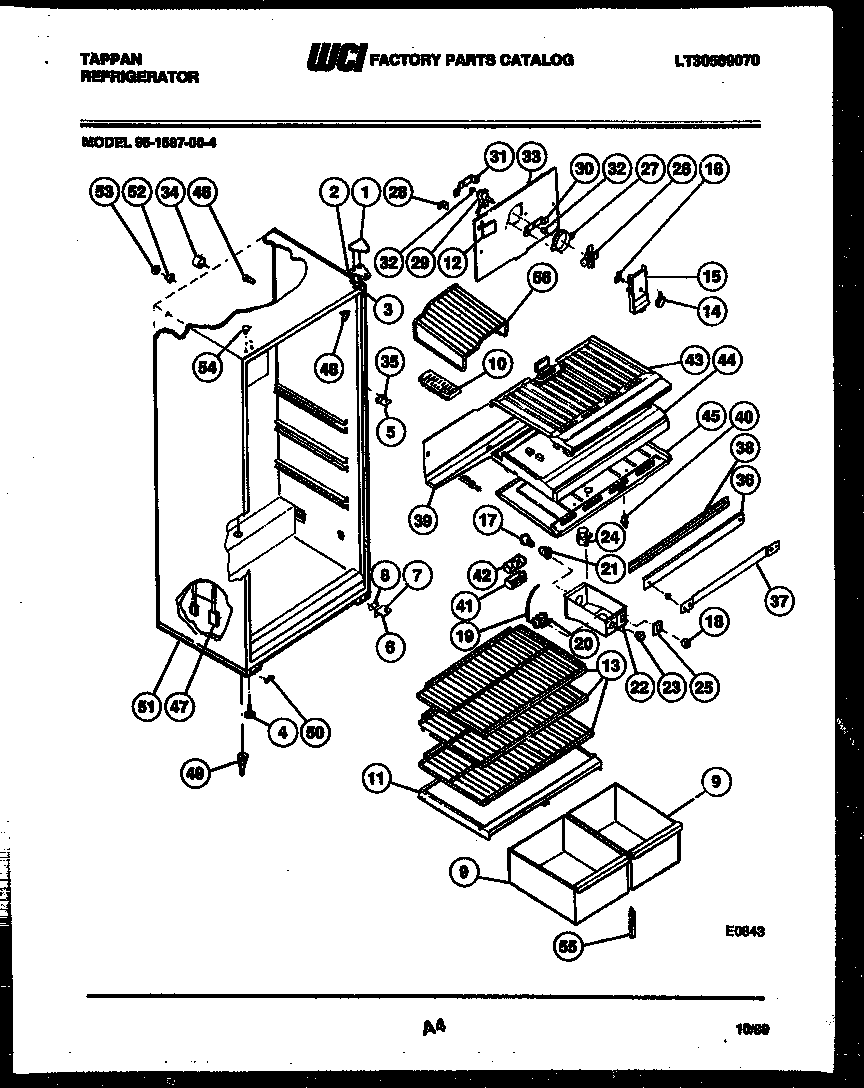

95-1587-00-04 03 – CABINET PARTS

95-1587-00-04 03 – CABINET PARTS

Written by

in

95-1587-00-04 03 – CABINET PARTS

Products

PositionProduct
1COVER, HINGE-WHITE
2BWCI 3001299
2WCI 3001298
3SHIM-TOP HINGE
3ATAPPING PLATE (2)
4AWCI 3001412
4WCI 3001301
5PIN-CENTER HINGE
5AWCI 3001038
6WCI 08010251
75303001321 Frigidaire Refrigerator Lower Hinge Pin
7A241710601 Frigidaire Refrigerator Screw
8SHIM-BOTTOM HINGE
8AWCI 3007090
9PAN STORAGE (2)
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 3001327
12WCI 3001328
13SHELF-SLIDING (3)
14WCI 3001452
15WCI 3001334
16AWCI 3001028
16WCI 3001331
17316538904 Frigidaire Oven Lamp Light
18WCI 3001335
19TUBE
20A5304455649 Frigidaire Refrigerator Screw
20CONTROL-TEMPERATURE
21WCI 3001267
22A5304455650 Frigidaire Refrigerator Screw
22CONTROL BOX
23WCI 3001670
24215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24ASCREW-MOUNTING (NON-ILLUSTRATED)
25WCI 3001339
265308000010 Frigidaire Refrigerator Evaporator Fan Blade
27WCI 3001217
27A218843801 Frigidaire Refrigerator Screw
28A5304455651 Frigidaire Refrigerator Screw
28BRACKET-CONNECTOR
295300158289 Frigidaire Evaporator Fan Motor
30WCI 3205118
31WCI 3205119
32G187559 Frigidaire Refrigerator Bushing
33ANUT, ORIFICE (2)
33WCI 3001358
34WCI 3001198
35AWCI 3006446
35HINGE BRACKET CENTER
36BWCI 3001370
36ASCREW, BRACKET MOUNTING (4)
36WCI 3916134
37WCI 3001373
38WCI 3007419
39WCI 3001374
405309918806 Frigidaire Refrigerator Light Switch Door
41WCI 3001546
42WCI 3001378
43WCI 3001379
44WCI 3001381
45TOP-REFRIGERATOR
45ASCREW MOUNTING (3) (NON-ILLUSTRATED)
46SUPPORT COIL COVER
47HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
48CORNER TRIM-WHITE
49WCI 3001386
50WCI 3001478
51WCI 3006086
52WCI 3001286
53WCI 3001287
54PLUG HINGE-WHITE
55SUPPORT-CRISPER CVR, ADJUSTABLE
56SHELF FREEZER
