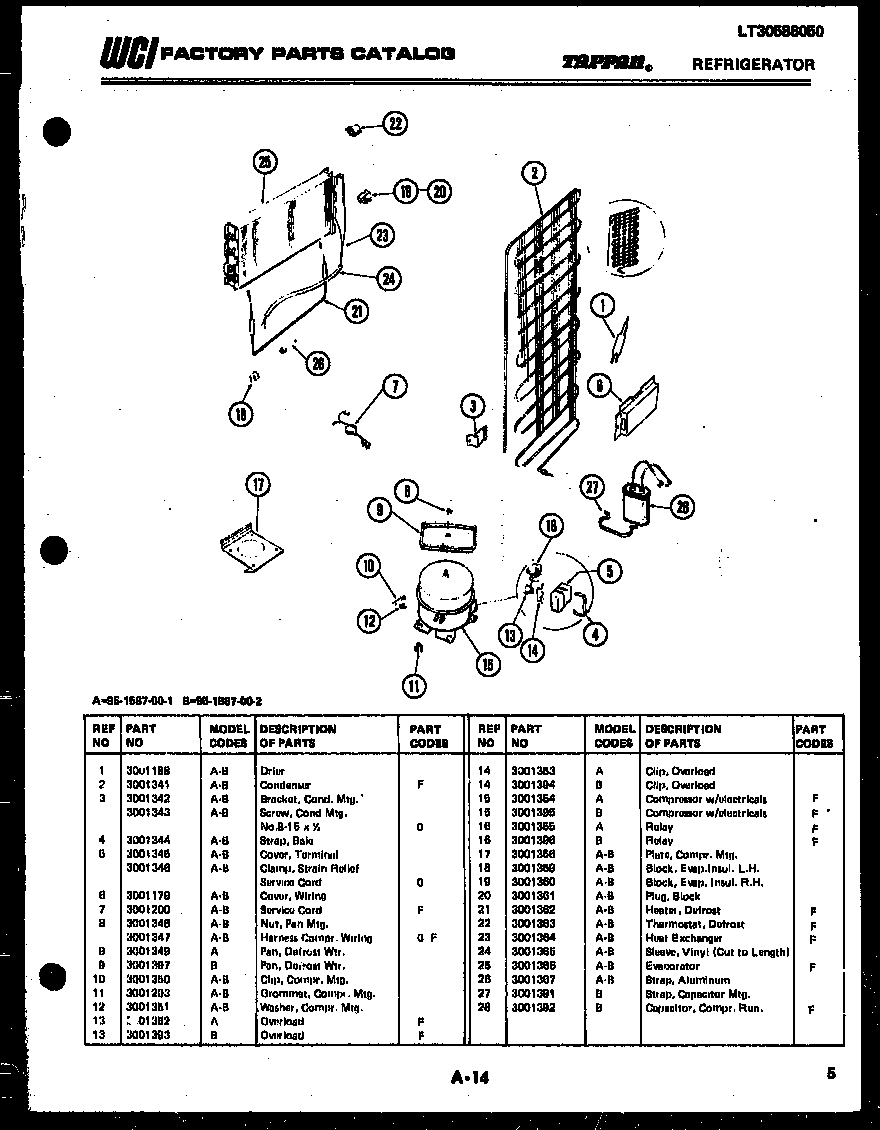

95-1587-23-01 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 3001341
3A	5304455651 Frigidaire Refrigerator Screw
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
5A	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
6	316538904 Frigidaire Oven Lamp Light
7	WCI 3001200
8A	HARNESS-COMPRESSOR
8	WCI 3001348
9	WCI 3001349
10	CLIP-COMPRESSOR MOUNTING (4)
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12	WASHER-COMPRESSOR MOUNTING (4)
13	OVERLOAD (NON-ILLUSTRATED)
14	WCI 3001353
15	COMPRESSOR W/ ELECTRICALS
16	WCI 3001355
17	PLATE-COMPRESSOR MOUNTING
18	WCI 3001359
19	BLOCK-EVAPORATOR RH
20	PIN-PUSH
21	WCI 3001362
22	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
23	WCI 3001364
24	WCI 3001365
25	WCI 3001366
26	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
