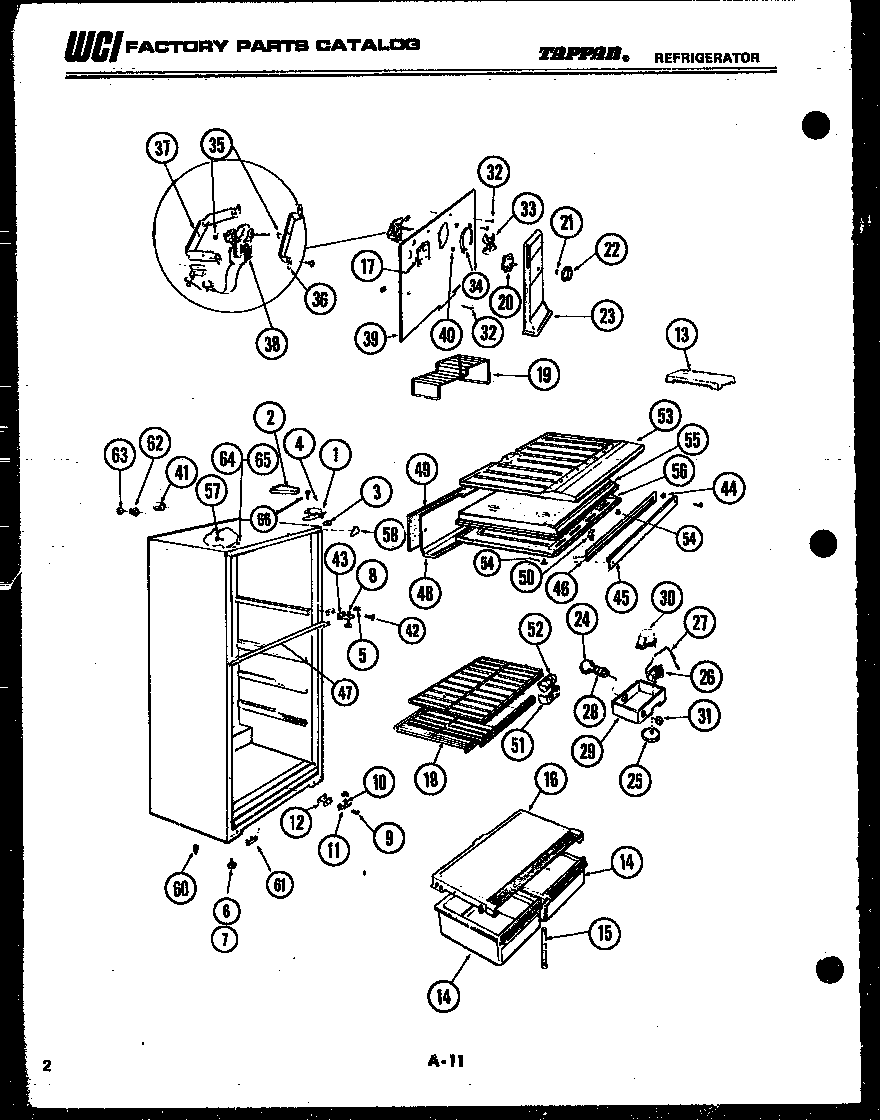

95-1587-23-02 02 – CABINET PARTS

Products

Position	Product
1	WCI 3001298
2	COVER, HINGE-ALMOND
3	SHIM-TOP HINGE
4	WCI 3001299
5	WCI 3001038
6	WCI 3001301
7	WCI 3001412
8	PIN-CENTER HINGE
9	241710601 Frigidaire Refrigerator Screw
10	5303001321 Frigidaire Refrigerator Lower Hinge Pin
11	HINGE BRACKET BOTTOM
12	SHIM-BOTTOM HINGE
13	215667501 Frigidaire Refrigerator Ice Tray Primary
14	PAN STORAGE (2)
15	SUPPORT COVER
16	WCI 3001327
17	WCI 3001328
18	SHELF-SLIDING (3)
19	SHELF FREEZER
20	WCI 3001331
21	WCI 3001332
22	WCI 3001333
23	WCI 3001334
24	316538904 Frigidaire Oven Lamp Light
25	WCI 3001335
26	CONTROL-TEMPERATURE
27A	5304455649 Frigidaire Refrigerator Screw
27	WCI 3001263
28	WCI 3001267
29	WCI 3001337
30	215846604 Frigidaire Refrigerator Defrost Timer
31	SWITCH, SLIDE
31A	WCI 3001339
32	5304455651 Frigidaire Refrigerator Screw
33	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
34	WCI 3001217
35	G187559 Frigidaire Refrigerator Bushing
36	WCI 3001226
37	WCI 3001227
38	5300158289 Frigidaire Evaporator Fan Motor
39	WCI 3001358
40	WCI 3001220
41	WCI 3001198
42	SCREW, HINGE (4) NO. 10-24 X 7/8
43	HINGE BRACKET CENTER
44	WCI 3001370
46	HEATER MULLION
47	WCI 3001373
48	WCI 3001374
49	INSUL. EVAP.
50	5309918806 Frigidaire Refrigerator Light Switch Door
51	WCI 3001377
52	WCI 3001378
53	WCI 3001379
54	SCREW MOUNTING (3) (NON-ILLUSTRATED)
55	WCI 3001381
56B	WCI 3001390
56	TOP, REFRIGERATOR
57	SUPPORT COIL COVER
58	TRIM, CAB. CORNER ALMD (4)
58A	BUTTON, PLUG LINER (NON-ILLUSTRATED)
60	WCI 3001386
61	BUTTON, PLUG
62	WCI 3001286
63	WCI 3001287
65	BUTTON, PLUG, ALMD (2)
