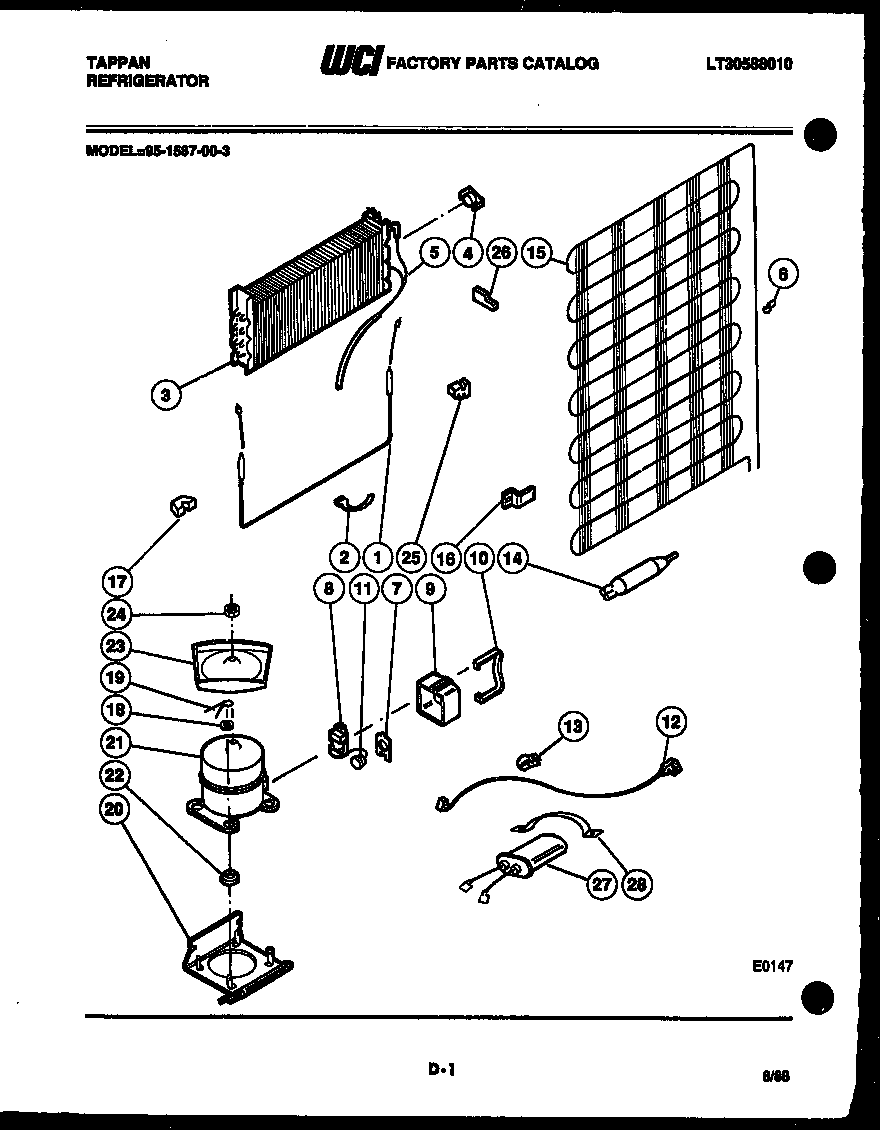

95-1587-23-03 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*141525303017691 Frigidaire Refrigerator Spacer-Tube
*14152HARNESS-COMPRESSOR
1WCI 3001362
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3WCI 3001366
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5WCI 3001364
6WCI 3001558
7WCI 3001394
8WCI 3001645
105303006412 Frigidaire Refrigerator Cover Mounting Strap
11OVERLOAD
12WCI 3001200
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI 3001341
16BRACKET-CONDENSER MOUNTING (4)
17BLOCK-EVAPORATOR LH
18WASHER-COMPRESSOR MOUNTING (4)
19CLIP-COMPRESSOR MOUNTING (4)
20PLATE-COMPRESSOR MOUNTING
21WCI 3916004
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23WCI 3001397
24WCI 3001348
25BLOCK-EVAPORATOR RH
26PLUG-EVAPORATOR INSULATION RH
27WCI 3001650
28WCI 3001391
