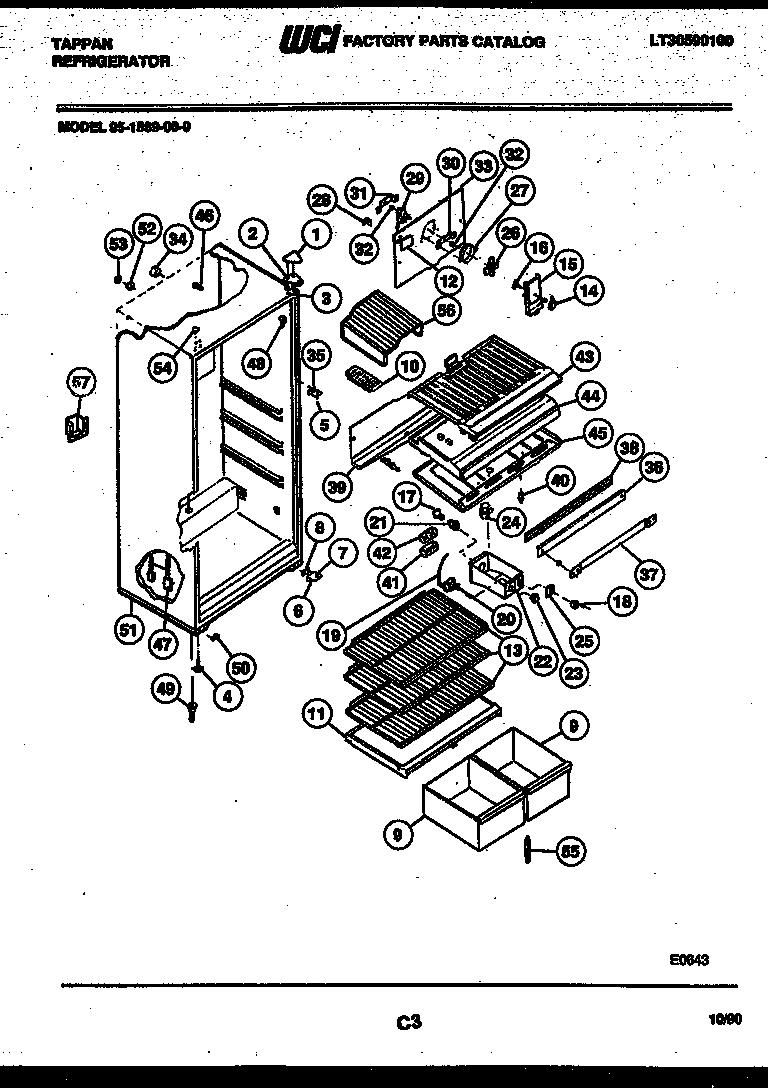

95-1589-00-00 03 – CABINET PARTS

Products

PositionProduct
*39403PLUG, BUTTON, CABINET LINER (NI)
1COVER-UPPER HINGE, WHITE
1COVER-UPPER HINGE, ALMOND
1WCI 5303001666
1COVER-HINGE-AVOCADO
1COVER – HINGE-WHEAT
2BWASHER, .34 X .62 X .05, NYLON
2BRACKET-UPPER HINGE
3SHIM – UPPER HINGE
4AWCI 5308003584
4SCREW-LEVELING (4)
5WCI 5308000184
5AWASHER, .28 X .62 X .19, NYLON
6A241710601 Frigidaire Refrigerator Screw
6HINGE – LOWER DOOR
75303001321 Frigidaire Refrigerator Lower Hinge Pin
8SHIM-LOWER HINGE
8AWCI 3007090
9WCI 5303001325
10215667501 Frigidaire Refrigerator Ice Tray Primary
11COVER-CRISPER PAN
12A5303208309 Frigidaire Refrigerator Plug Hole
12WCI 3001328
13WCI 5317217202
14WCI 3001452
15WCI 5303001334
16ANut,push-on
16DAMPER-FAN COVER
17316538904 Frigidaire Oven Lamp Light
18WCI 3001335
19TUBE
20A5304455649 Frigidaire Refrigerator Screw
20WCI 5308015762
21SOCKET-LIGHT/LAMP
22CONTROL BOX
22ASCREW-MOUNTING (NON-ILLUSTRATED)
23SWITCH-ENERGY SAVER, SLIDE TYPE
24215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25LABEL-CONTROL BOX
265308000010 Frigidaire Refrigerator Evaporator Fan Blade
27RING-FAN ORIFICE
28A5304455651 Frigidaire Refrigerator Screw
28WCI 5308000107
295300158289 Frigidaire Evaporator Fan Motor
30WCI 5303001226
31BRACKET-MOTOR MTG, REAR
32G187559 Frigidaire Refrigerator Bushing
33WCI 3001358
33A5304455650 Frigidaire Refrigerator Screw
34TUBE-RUBBER
35BRACKET-CTR HINGE
35AWCI 5308012258
35BWASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
36AWCI 3001370
36WCI 3916135
36WCI 5303916134
36WCI 3916133
36WCI 3916132
36WCI 5303200465
37WCI 5308003604
38WCI 5308017408
39TROUGH-DRAIN
405309918806 Frigidaire Refrigerator Light Switch Door
41COVER – AIR DEFLECTOR
42DEFLECTOR-AIR
43WCI 5308000748
44WCI 5308000759
45TOP PANEL-REFR, W/ SNAP BUSHING
45AWCI 5303001380
46SUPPORT-COIL COVER
47HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
48CORNER TRIM, WHITE (4)
48CORNER TRIM, COFFEE (4)
48TRIM-CAB CORNER-ALMD
48CORNER TRIM-AVOC
48TRIM-CAB CORNER-WHEAT
49TUBE – DRAIN
50COVER-HOLE, LOWER HINGE
51WCI 5303006086
52WCI 5303001286
53WCI 5303001287
54BUTTON-HINGE-AVOCADO
54PLUG, COFFEE
54PLUG-BUTTON, ALMOND, UPR HINGE HOLES
54PLUG-BUTTON, WHITE
54BUTTON-HINGE-WHEAT
55SUPPORT-CRISPER CVR, ADJUSTABLE
56SHELF FREEZER
57WCI 5303001197
