95-1589-00-00 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

95-1589-00-00 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

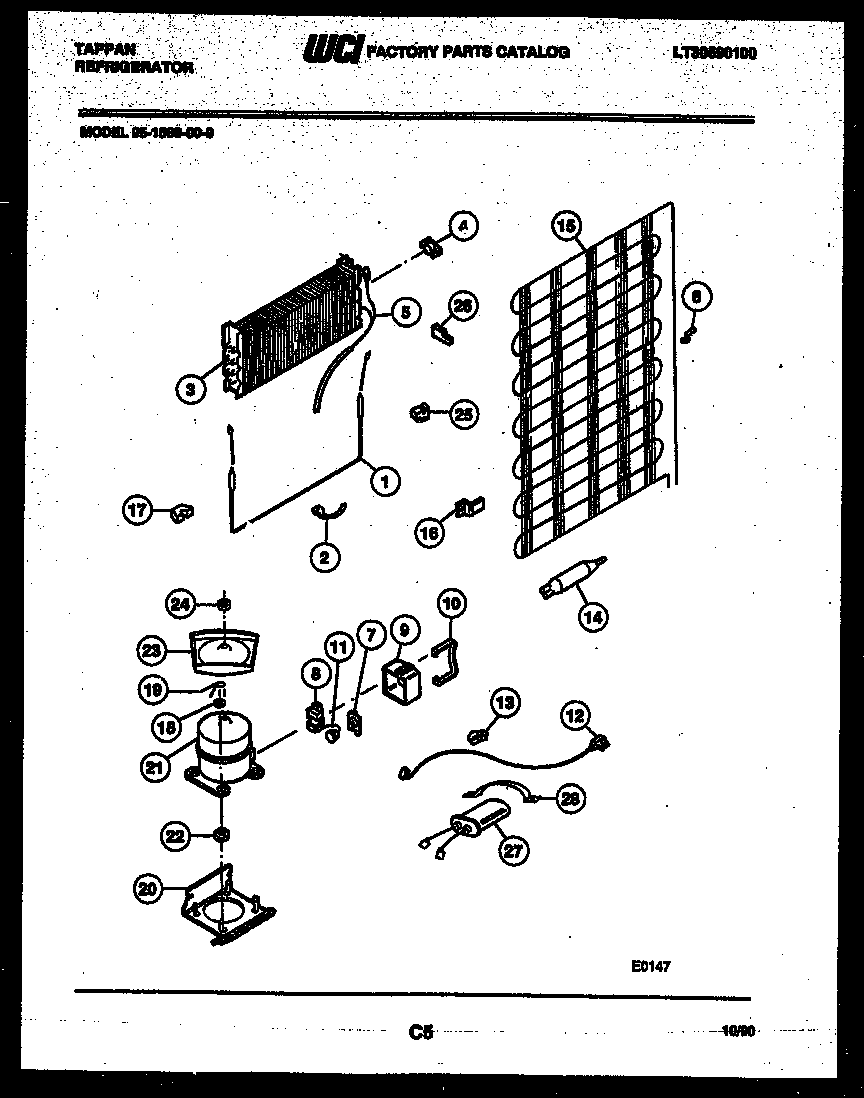

95-1589-00-00 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*39410HOT TUBE REPAIR KIT-SERVICE
*39409WIRING HARNESS, COMPRESSOR,
*39409SPACER-COND TUBE,BLACK
*394095304455651 Frigidaire Refrigerator Screw
*39409WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*394105303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1WCI 5303001362
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3EVAPORATOR
45303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5HEAT EXCHANGER, SUCTION LINE
65308000133 Frigidaire Refrigerator Clamp
7WCI 3202891
8RELAY-TL
9WCI 5303209254
10WCI 5303211232
11WCI 3202863
12CORD-ELECTRIC POWER
135303001199 Frigidaire Refrigerator Wiring Harness Clamp
145303305677 Frigidaire Replacement Filter Dryer Filters
15WCI 5303001341
16BRACKET-MTG (4)
17INSULATION BLOCK, LH
18WASHER-COMPR MTG
19CLIP – COMPRESSOR MTG
20WCI 5308009596
21COMPRESSOR W/ ELECTRICALS
22218513300 Frigidaire Refrigerator Compressor Mount Grommet
23APAN-DEFROST DRAIN, ORIG/SVCE COMPR
23BPAN RETAINER KIT, SERVICE
23PAN-DEFROST-ORIG COMPRESSOR
24Nut,lock `1/4-20 ,drain pan mtg
25INSULATION BLOCK, RH
26INSULATION PLUG, RH
27WCI 5303018427
28STRAP CAPACITOR
