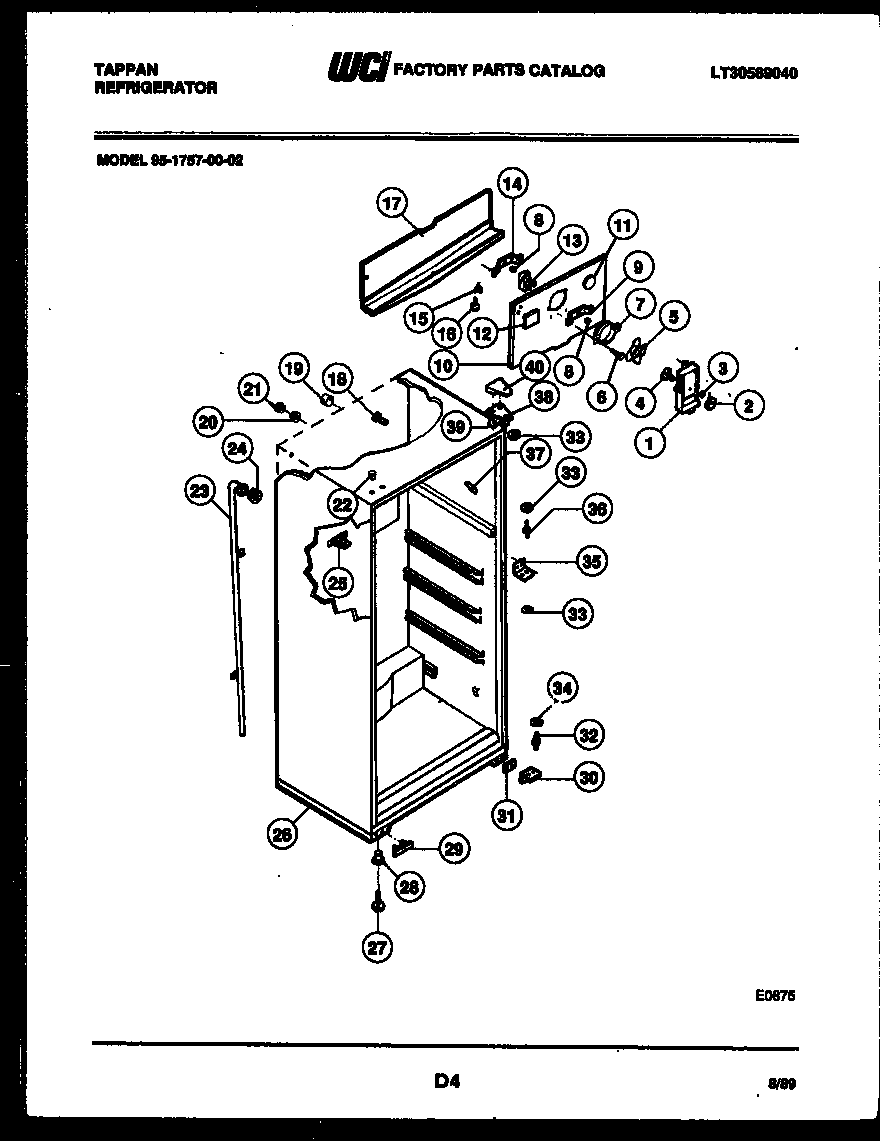

95-1757-45-02 03 – CABINET PARTS

Products

Position	Product
*28042	BUTTON, LINER
1	WCI 3001496
2	WCI G162747-22
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10	COVER-COIL
10A	5304455650 Frigidaire Refrigerator Screw
10B	NUT, ORIFICE (2)
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	218843801 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-10
23	WCI 3001458
23A	5304455651 Frigidaire Refrigerator Screw
24	RING, SEAL (NON-ILLUSTRATED)
25A	PIN-PUSH
25	SPOUT DRAIN TUBE
26	WCI 08010091
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	HINGE-BRACKET-BOTTOM
31A	TAPPING, PLATE (2)
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	BRACKET, HINGE CENTER
35A	SCREW, BRACKET MOUNTING (4)
36	WCI G142220
37	WCI 3202339
38	BRACKET, TOP HINGE
38A	241710601 Frigidaire Refrigerator Screw
38	TAPPING PLATE (2)
39	WCI G183861
40	COVER HINGE, COFFEE
