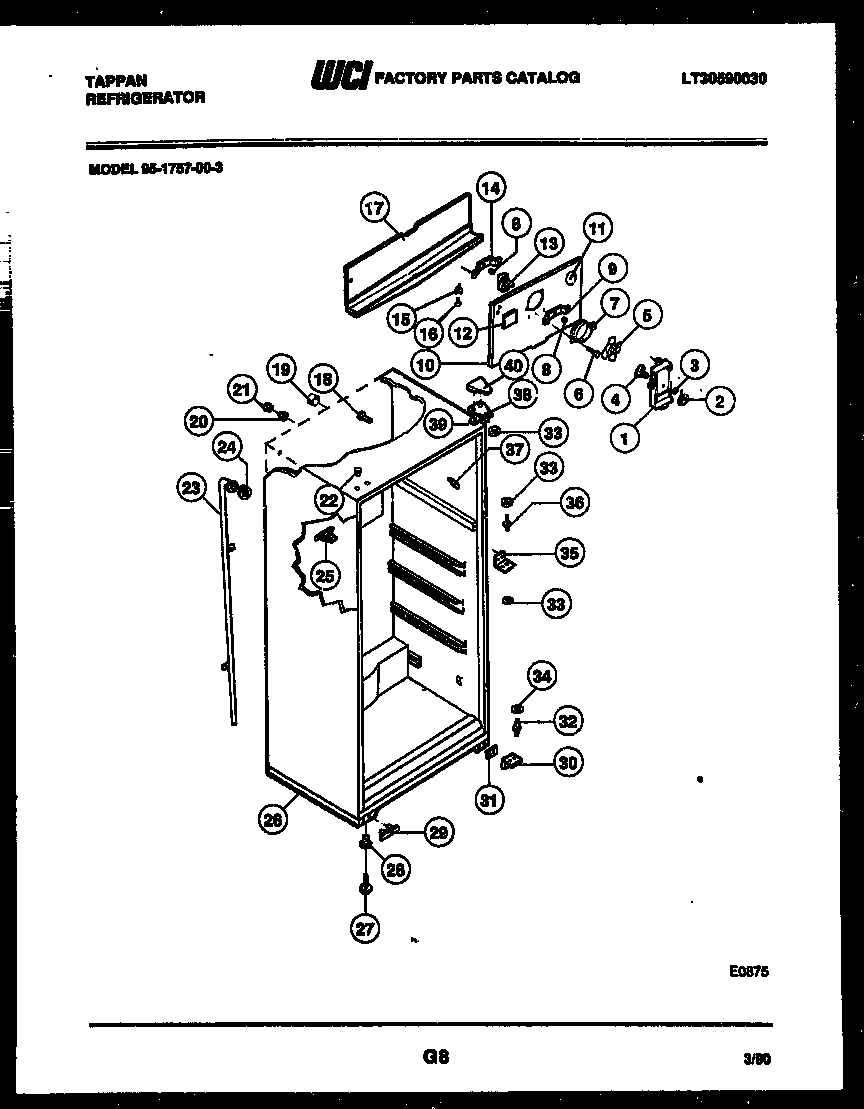

95-1757-45-03 03 – CABINET PARTS

Products

PositionProduct
*12944PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001496
2KNOB-DAMPER CONTROL
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10WCI 3001527
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10A5304455650 Frigidaire Refrigerator Screw
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 3001328
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
16218843801 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22BUTTON-HINGE-WHEAT
22PLUG-BUTTON, WHITE
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
22PLUG, COFFEE
22BUTTON-HINGE-AVOCADO
23WCI 5303001458
23A5304455651 Frigidaire Refrigerator Screw
24WCI 5303207353
25WCI 5308000056
25AWCI 5303001361
26WCI 08010091
27SCREW-LEVELING (4)
28WCI 5308003584
29COVER-HOLE, LOWER HINGE
30HINGE BRACKET – BOTTOM
30A241710601 Frigidaire Refrigerator Screw
31SHIM-LOWER HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WASHER, .34 X .62 X .05, NYLON
34WCI 5308000186
35BRACKET-CTR HINGE
35AWCI 5308012258
36WCI 5308000184
37WCI 5303202339
38BRACKET-UPPER HINGE
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
40COVER – HINGE-WHEAT
40WCI 5303001666
40COVER-HINGE-AVOCADO
40COVER-UPPER HINGE, WHITE
40COVER-UPPER HINGE, ALMOND
