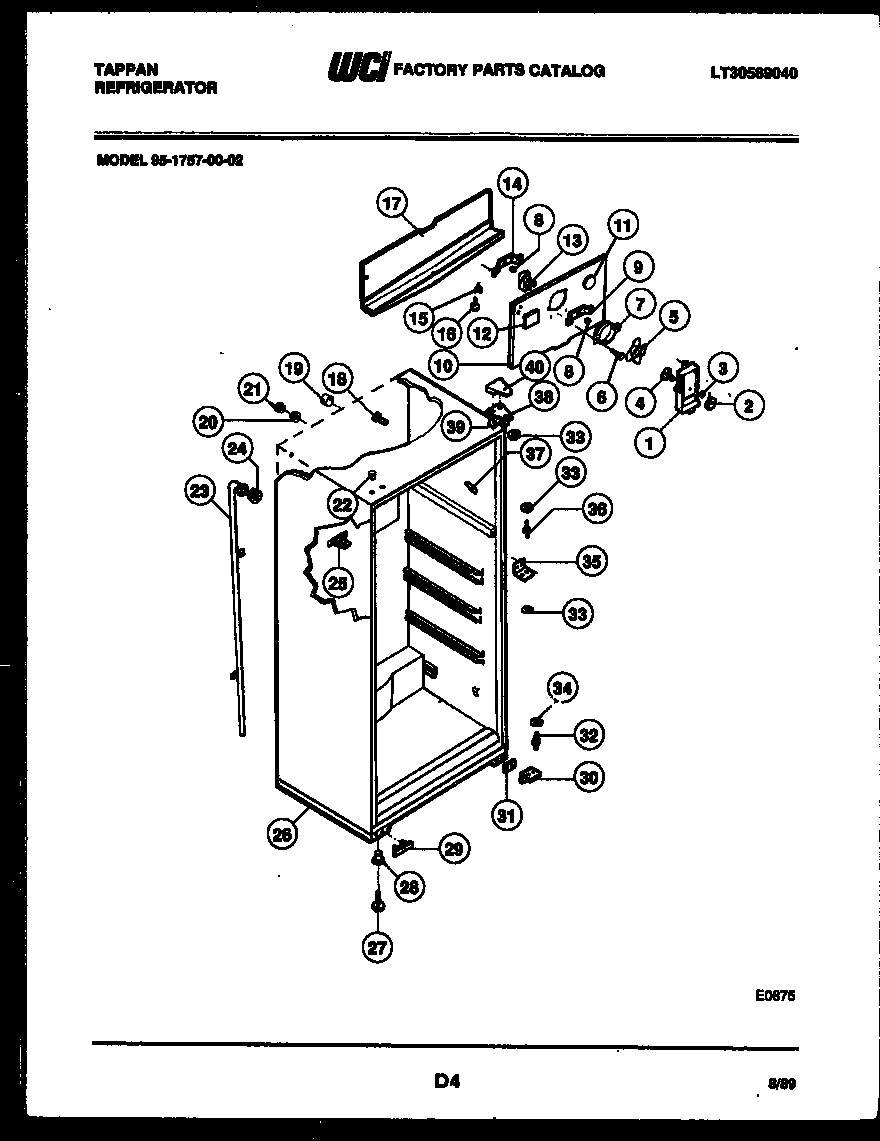

95-1757-57-02 03 – CABINET PARTS

Products

Position	Product
*28042	BUTTON, LINER
1	WCI 3001496
2	WCI G162747-22
3	NUT, DAMPER MOUNTING
4	DAMPER FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING, FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI G185302
10B	NUT, ORIFICE (2)
10A	5304455650 Frigidaire Refrigerator Screw
10	COVER-COIL
11	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI G185303
15	WCI G164571
16	218843801 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	WCI G163669
19	TUBE, INSULATION (2)
20	WCI G174733
21	WCI G174734
22	WCI G174747-08
23A	5304455651 Frigidaire Refrigerator Screw
23	WCI 3001458
24	RING, SEAL (NON-ILLUSTRATED)
25A	PIN-PUSH
25	SPOUT DRAIN TUBE
26	WCI 08010091
27	LEG-LEVELING (2)
28	NUT, ANCHOR (2)
29	WCI G166912
30	HINGE-BRACKET-BOTTOM
31A	TAPPING, PLATE (2)
31	SHIM, HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WCI G103903
34	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35	BRACKET, HINGE CENTER
35A	SCREW, BRACKET MOUNTING (4)
36	WCI G142220
37	CORNER TRIM-AVOCADO
38	BRACKET, TOP HINGE
38A	241710601 Frigidaire Refrigerator Screw
38	TAPPING PLATE (2)
39	WCI G183861
40	COVER, TOP HINGE, AVOCADO
