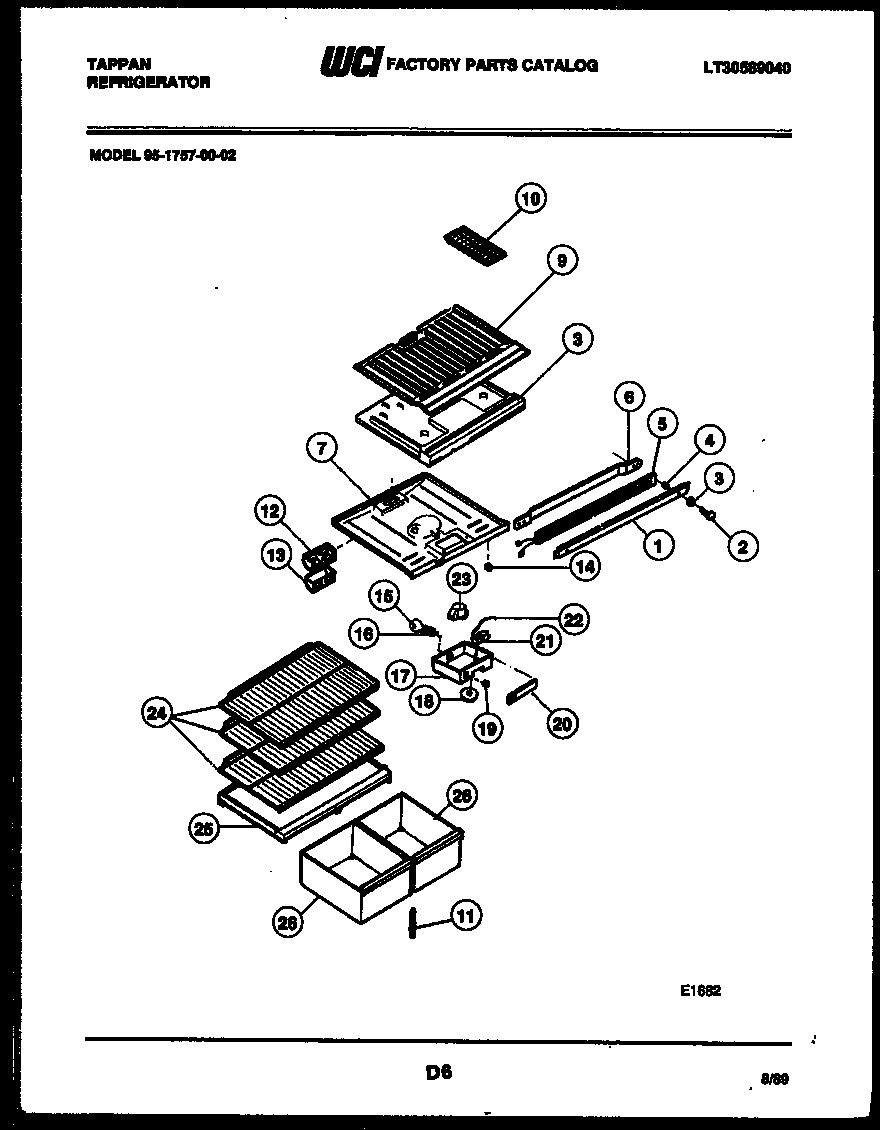

95-1757-57-02 04 – SHELVES AND SUPPORTS

95-1757-57-02 04 – SHELVES AND SUPPORTS

Written by

in

95-1757-57-02 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3916135
2SCREW, BRACKET MOUNTING (4)
3WASHER (2)
4SPACER (NON-ILLUSTRATED)
5WCI 08017408
6CLAMP, MULLION MOUNTING
7TOP-REFRIGERATOR
7ASCREW (5)
8DIVIDER, CENTER
8AHARNESS, WIRING
9BTM, FZR.
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SUPPORT, CRISPER COVER
12DEFLECTOR AIR
13WCI G162178
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET LIGHT
17WCI G174655-18
17A5304455650 Frigidaire Refrigerator Screw
18WCI 3001335
19SWITCH SLIDE
20WCI G178294-01
21WCI 3200810
21AWCI G107080
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI G178511-01
25WCI 3001523
26PAN, CRISPER
