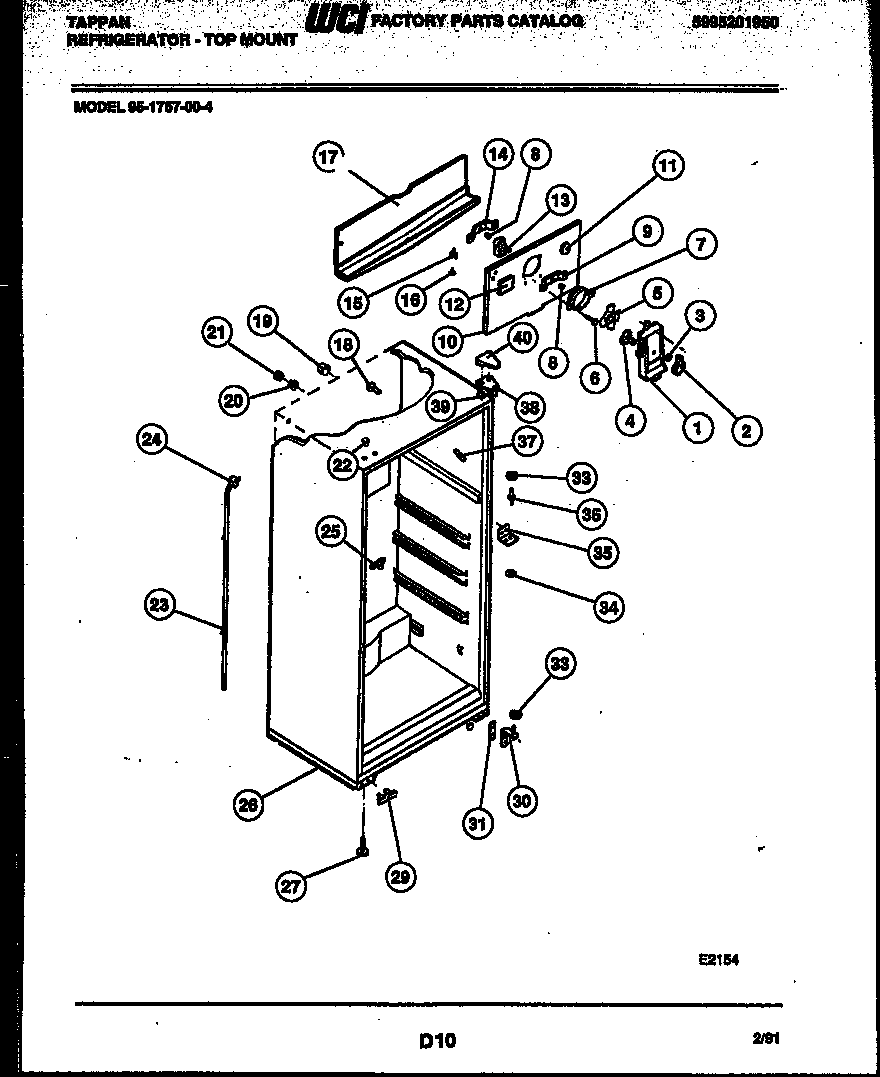

95-1757-57-04 03 – CABINET PARTS

Products

Position	Product
*45567	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001496
2	WCI 5308011762
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303001226
10	WCI 3001527
10A	5304455650 Frigidaire Refrigerator Screw
10B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	BUTTON – DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15	WCI 5308000107
16	5304455651 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	BUTTON-HINGE-AVOCADO
23	WCI 5303210377
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5308000056
26	BASE-CABINET
27	Screw-leveling,(2)
29	COVER-HOLE, LOWER HINGE
30B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
30C	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30A	241710601 Frigidaire Refrigerator Screw
31	WCI 5303212488
33	WASHER, .34 X .62 X .05, NYLON
34	WCI 5308000186
35	BRACKET-CTR HINGE
35A	WCI 5308012258
36	WCI 5308000184
37	CORNER
38	BRACKET-UPPER HINGE
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM – UPPER HINGE
40	COVER-HINGE-AVOCADO
