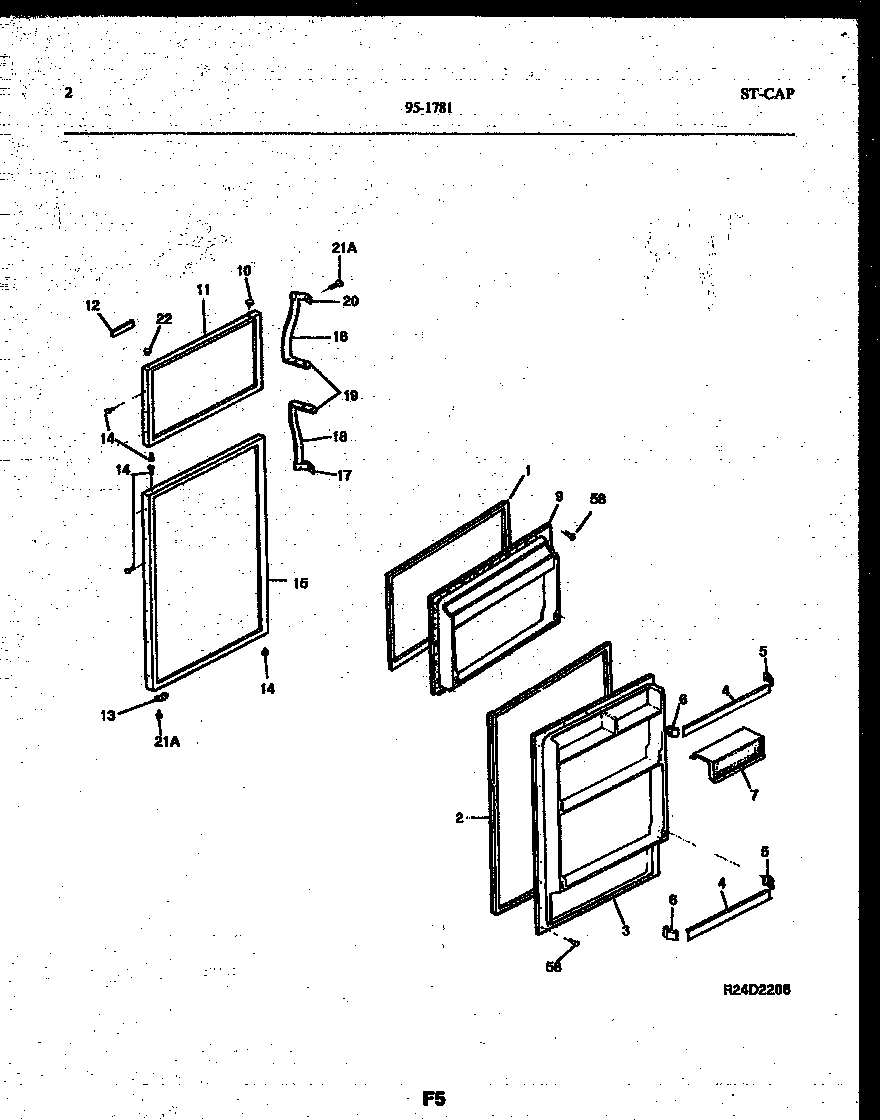

95-1781-00-01 02 – DOOR PARTS

95-1781-00-01 02 – DOOR PARTS

Written by

in

95-1781-00-01 02 – DOOR PARTS

Products

PositionProduct
*70490INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001399
2218730603 Frigidaire Door Gasket
3PANEL-INNER DOOR, REFR
4RACK-DOOR
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7WCI 5316177644
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11PANEL-FRZR DOOR, WHITE
12WCI 3001312
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR, WHITE
17WCI 5303001297
18HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2)
19WCI 5303001296
20BOTTOM HANDLE END CAP
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
