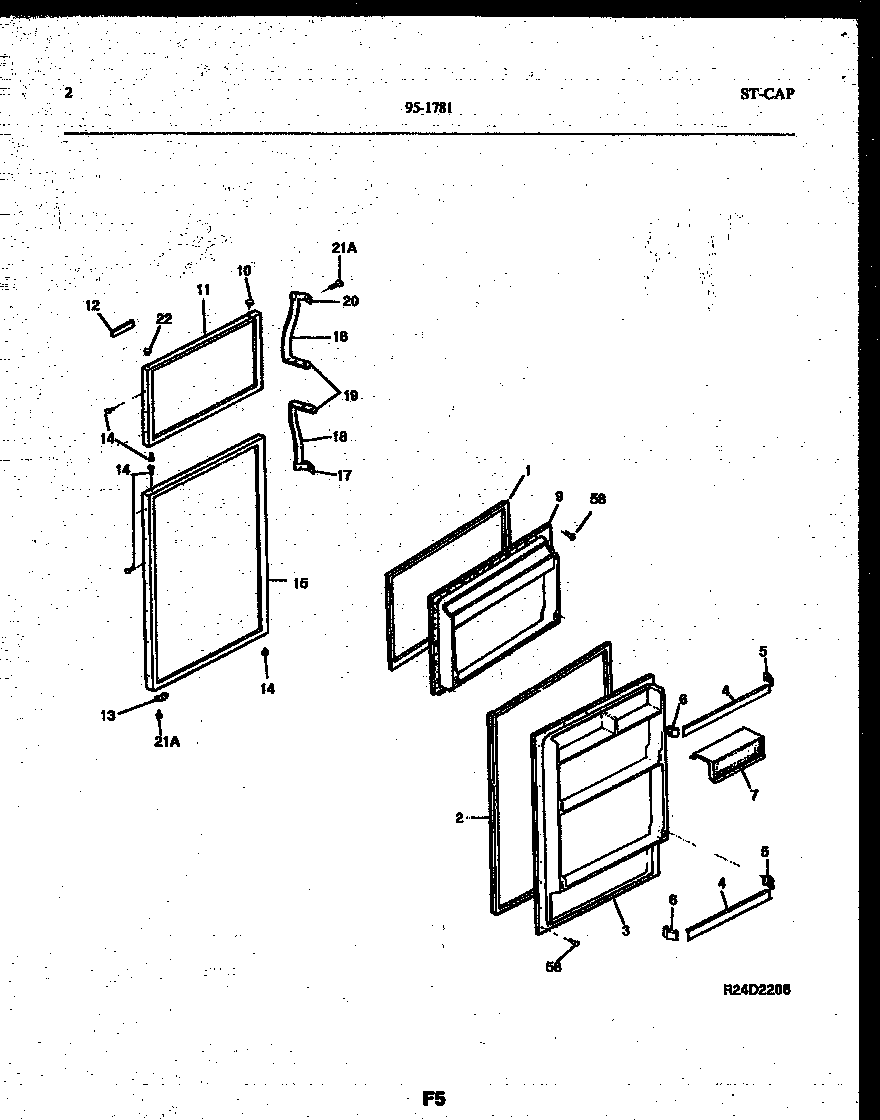

95-1781-23-01 02 – DOOR PARTS

95-1781-23-01 02 – DOOR PARTS

Written by

in

95-1781-23-01 02 – DOOR PARTS

Products

PositionProduct
*70490INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001399
2218730603 Frigidaire Door Gasket
3PANEL-INNER DOOR, REFR
4RACK-DOOR
5SUPPORT-DOOR RACK, RH
6SUPPORT-DOOR RACK, LH
7WCI 5316177644
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND
12WCI 3001312
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917023
17WCI 5303001297
18HANDLE-DOOR, BLACK VINYL, REFR/FRZR, (2)
19WCI 5303001296
20BOTTOM HANDLE END CAP
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
