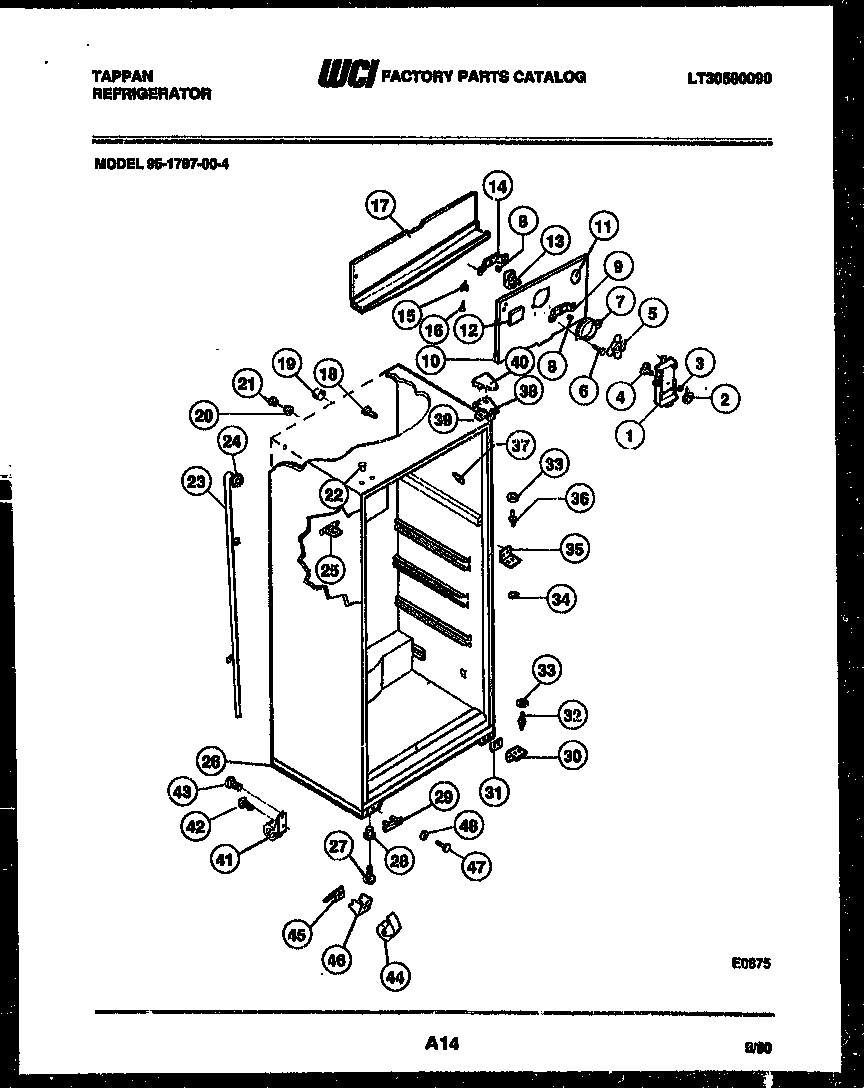

95-1787-00-04 03 – CABINET PARTS

95-1787-00-04 03 – CABINET PARTS

Written by

in

95-1787-00-04 03 – CABINET PARTS

Products

PositionProduct
*12301PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001496
2KNOB-DAMPER CONTROL
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 3001527
10A5304455650 Frigidaire Refrigerator Screw
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 3001328
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
16218843801 Frigidaire Refrigerator Screw
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG, COFFEE
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
22BUTTON-HINGE-WHEAT
22BUTTON-HINGE-AVOCADO
22PLUG-BUTTON, WHITE
23AWCI 5303207353
24WCI 5303001361
25WCI 5303210377
26WCI 08010091
27SCREW-LEVELING (4)
28WCI 5308003584
29COVER-HOLE, LOWER HINGE
30A241710601 Frigidaire Refrigerator Screw
30HINGE BRACKET – BOTTOM
31SHIM-LOWER HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WASHER, .34 X .62 X .05, NYLON
34WCI 5308000186
35AWCI 5308012258
35BRACKET-CTR HINGE
36WCI 5308000184
37WCI 5303202339
37WCI 5303202338
37TRIM-CABINET CORNER, WHITE
37TRIM-CABINET CORNER, ALMOND
37CORNER
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
40COVER – HINGE-WHEAT
40COVER-HINGE-AVOCADO
40WCI 5303001666
40COVER-UPPER HINGE, WHITE
40COVER-UPPER HINGE, ALMOND
41WCI 5308009773
42BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
435304455651 Frigidaire Refrigerator Screw
44WCI 5308009760
45WCI 5308009790
46SUPPORT, BASE (2)
47BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
48WCI 5308011326
