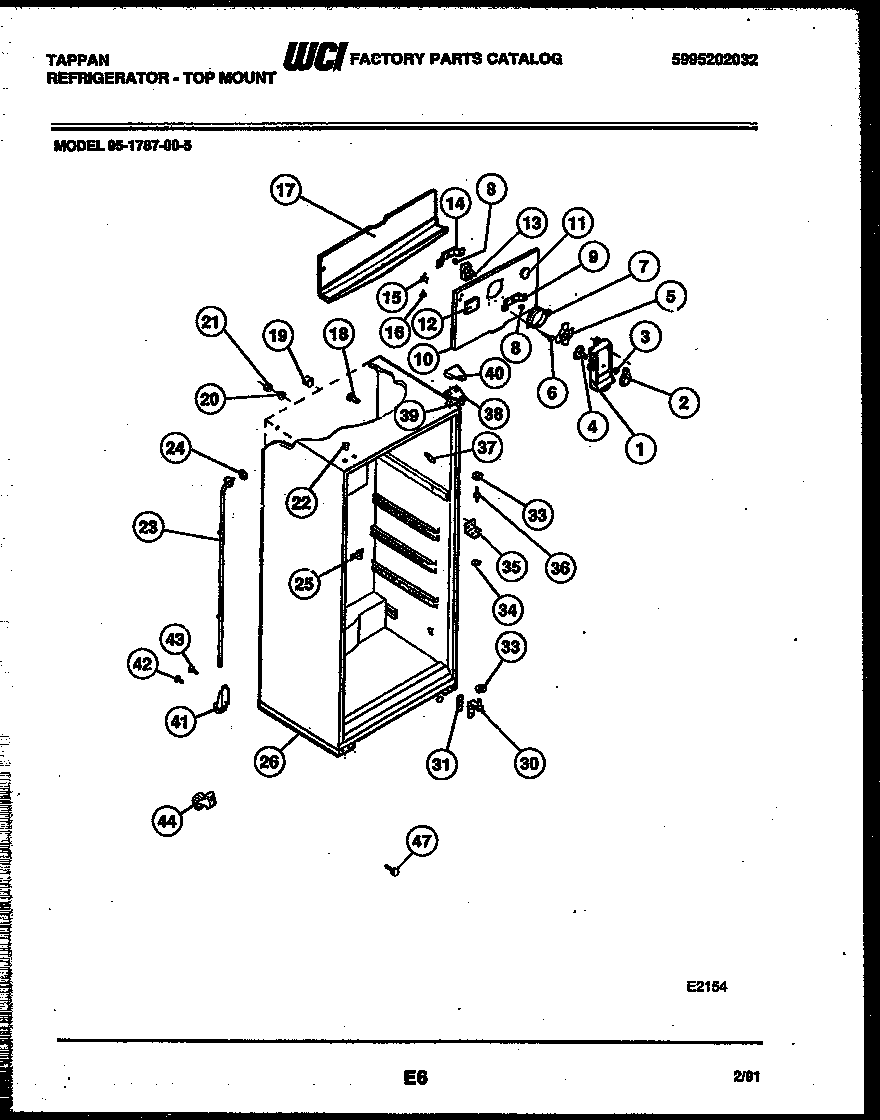

95-1787-00-05 03 – CABINET PARTS

95-1787-00-05 03 – CABINET PARTS

Written by

in

95-1787-00-05 03 – CABINET PARTS

Products

PositionProduct
*45652PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001496
2WCI 5308011762
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
65304455651 Frigidaire Refrigerator Screw
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10WCI 3001527
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10A5304455650 Frigidaire Refrigerator Screw
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
17TROUGH-DRAIN
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
22BUTTON-HINGE-WHEAT
22BUTTON-HINGE-AVOCADO
22PLUG, COFFEE
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
23AWCI 5303207353
24WCI 5303001361
25WCI 5308000056
26BASE-CABINET
30BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30A241710601 Frigidaire Refrigerator Screw
30BRACKET-LOWER HINGE, W/ HINGE PIN
30CTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
31WCI 5303212488
33WASHER, .34 X .62 X .05, NYLON
34WCI 5308000186
35AWCI 5308012258
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
37WCI 5303202338
37TRIM-CABINET CORNER, ALMOND
37CORNER
37WCI 5303202339
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
40COVER-HINGE-AVOCADO
40COVER – HINGE-WHEAT
40WCI 5303001666
40COVER-UPPER HINGE, WHITE
40COVER-UPPER HINGE, ALMOND
41WCI 5308009773
42BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
44WCI 5303212490
47WCI 5303212598
