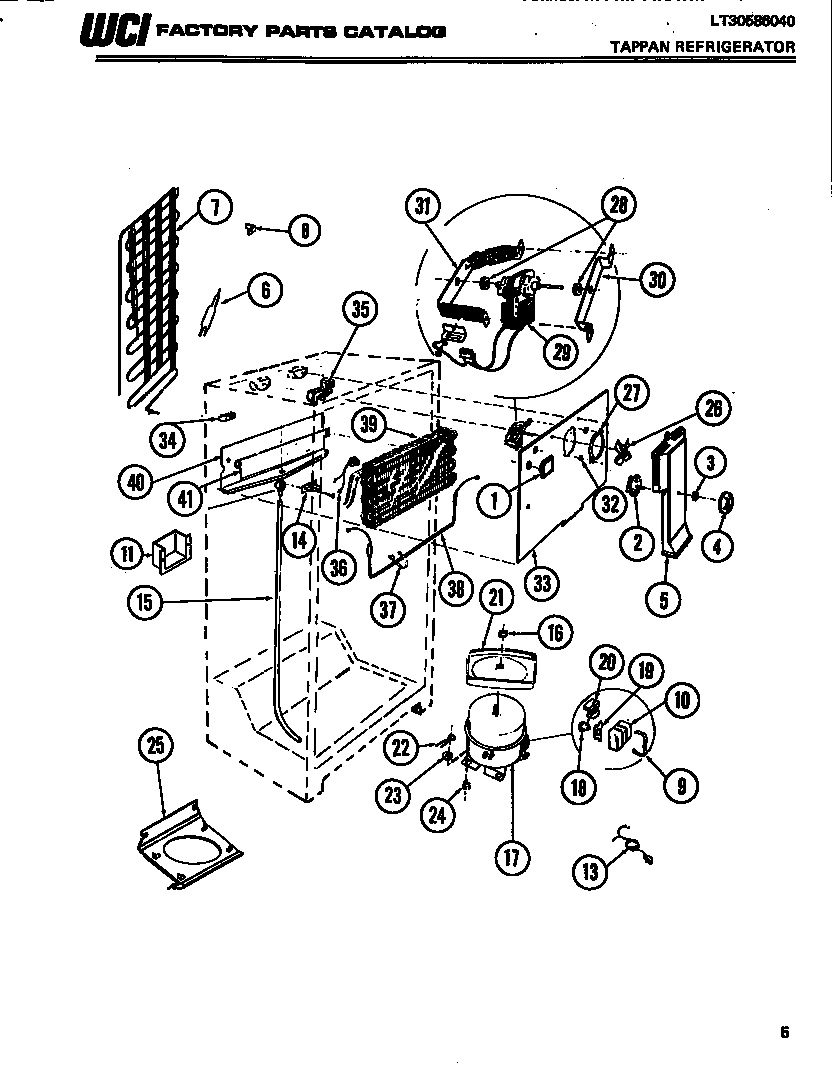

95-1787-23-01 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*47775HARNESS-COMPRESSOR
1WCI 3001328
2WCI 3001331
3WCI 3001332
4WCI 3001333
5WCI 3001496
65303305677 Frigidaire Replacement Filter Dryer Filters
7WCI 3001526
8BRACKET-CONDENSER MOUNTING (4)
95303006412 Frigidaire Refrigerator Cover Mounting Strap
11WCI 3001197
125304455650 Frigidaire Refrigerator Screw
13WCI 3001200
14SPOUT-DRAIN TUBE
15WCI 3001458
16WCI 3001348
17WCI 3001499
18OVERLOAD (NON-ILLUSTRATED)
19WCI 3001353
20WCI 3001355
21WCI 3001397
22CLIP-COMPRESSOR MOUNTING (4)
23WASHER-COMPRESSOR MOUNTING (4)
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25PLATE-COMPR MTG
265308000010 Frigidaire Refrigerator Evaporator Fan Blade
27WCI 3001217
28G187559 Frigidaire Refrigerator Bushing
295300158289 Frigidaire Evaporator Fan Motor
30WCI 3001226
31WCI 3001227
32WCI 3001220
33WCI 3001527
34WCI 3001359
35BLOCK-EVAPORATOR RH
35PIN-PUSH
365303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
375308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
38WCI 3001529
39AHEAT EXCHANGER
39WCI 3001530
39BWCI 3001365
40WCI 3001533
41INSULATOR-EVAPORATOR
