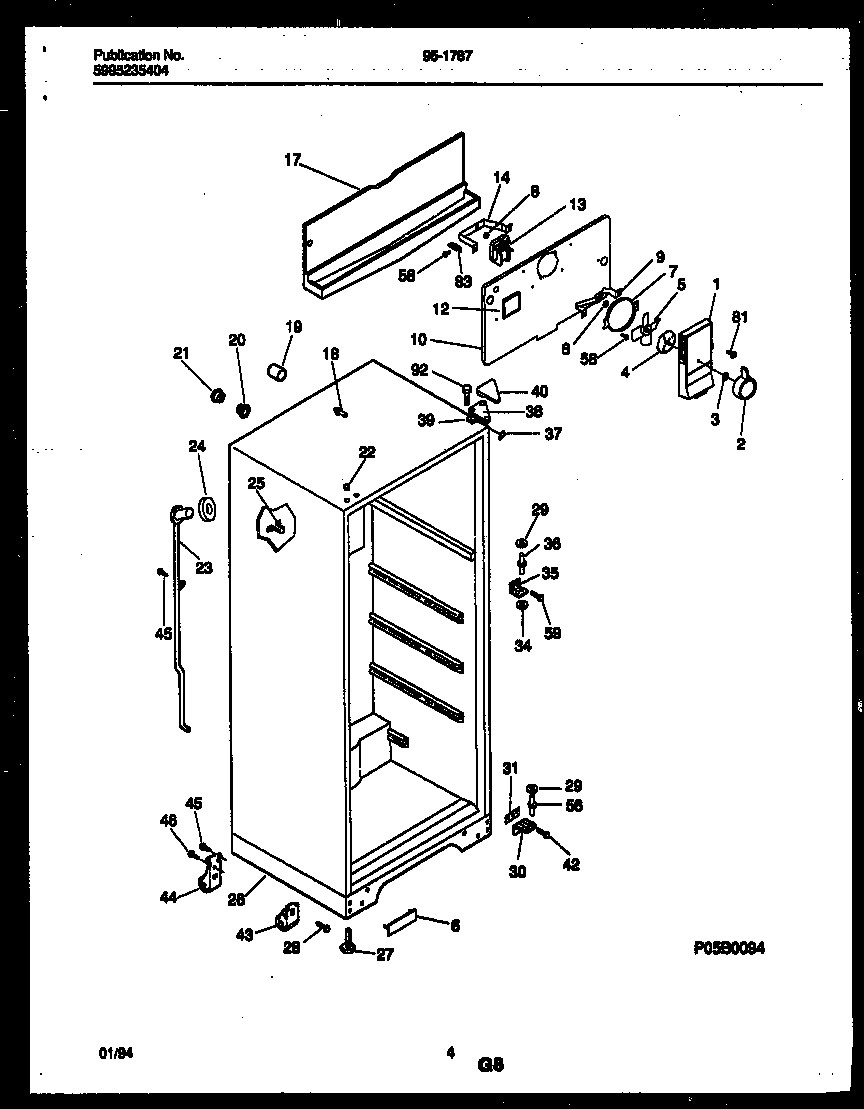

95-1787-23-03 03 – CABINET PARTS

Products

Position	Product
*96174	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001496
2	WCI 5308011762
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	COVER-HOLE, LOWER HINGE
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3001527
10A	NUT-SPEED (2)
12	BUTTON - DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23	WCI 5303210377
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5308000056
26	WCI 08010091
27	WCI 53003205540
27A	WCI 5308003584
28	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
28A	WCI 5308011326
29	WASHER, .34 X .62 X .05, NYLON
30	HINGE BRACKET - BOTTOM
31	SHIM-LOWER HINGE
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38	BRACKET-UPPER HINGE
38A	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
42	241710601 Frigidaire Refrigerator Screw
43A	WCI 5308009790
43B	SUPPORT, BASE (2)
43	WCI 5308009760
44	WCI 5308009773
45	5304455651 Frigidaire Refrigerator Screw
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
