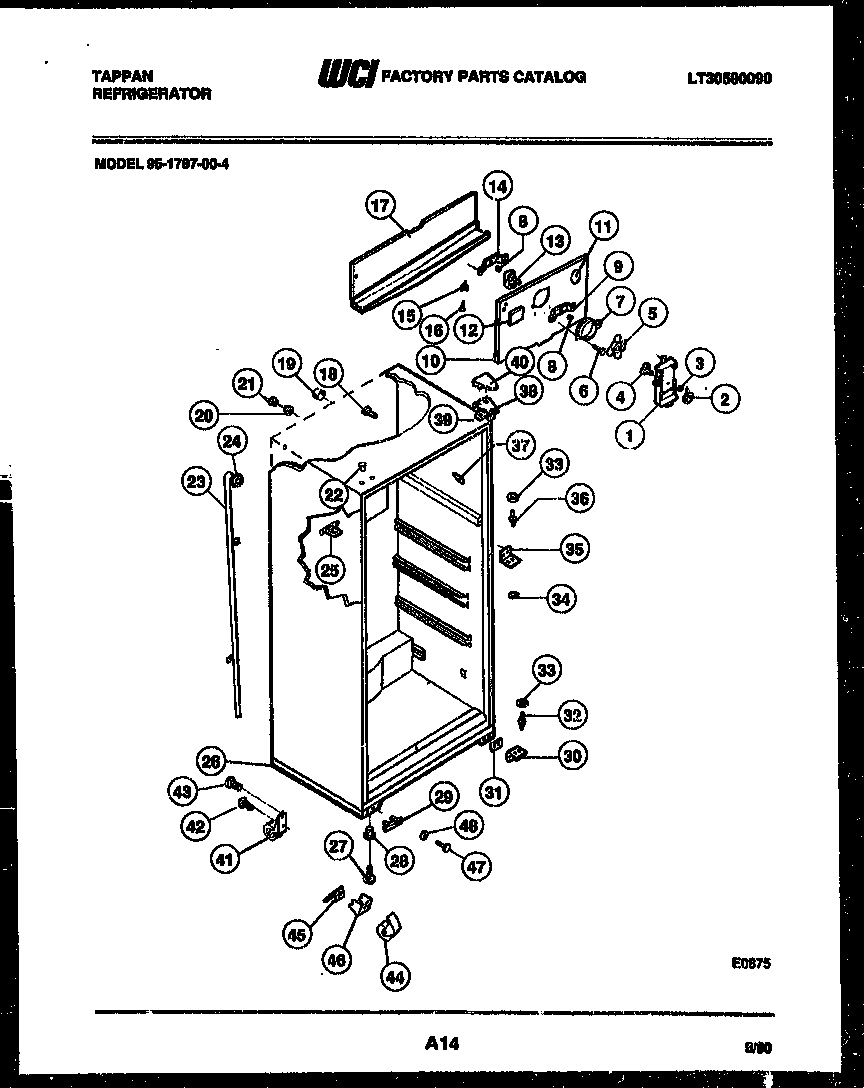

95-1787-23-04 03 – CABINET PARTS

Products

Position	Product
*12301	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001496
2	KNOB-DAMPER CONTROL
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303001226
10A	5304455650 Frigidaire Refrigerator Screw
10B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 3001527
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 3001328
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15	WCI 5308000107
16	218843801 Frigidaire Refrigerator Screw
17	TROUGH-DRAIN
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
22	BUTTON-HINGE-AVOCADO
22	PLUG, COFFEE
22	BUTTON-HINGE-WHEAT
22	PLUG-BUTTON, WHITE
23A	WCI 5303207353
24	WCI 5303001361
25	WCI 5303210377
26	WCI 08010091
27	SCREW-LEVELING (4)
28	WCI 5308003584
29	COVER-HOLE, LOWER HINGE
30A	241710601 Frigidaire Refrigerator Screw
30	HINGE BRACKET – BOTTOM
31	SHIM-LOWER HINGE
32	5303001321 Frigidaire Refrigerator Lower Hinge Pin
33	WASHER, .34 X .62 X .05, NYLON
34	WCI 5308000186
35A	WCI 5308012258
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM – UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
41	WCI 5308009773
42	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
43	5304455651 Frigidaire Refrigerator Screw
44	WCI 5308009760
45	WCI 5308009790
46	SUPPORT, BASE (2)
47	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
48	WCI 5308011326
