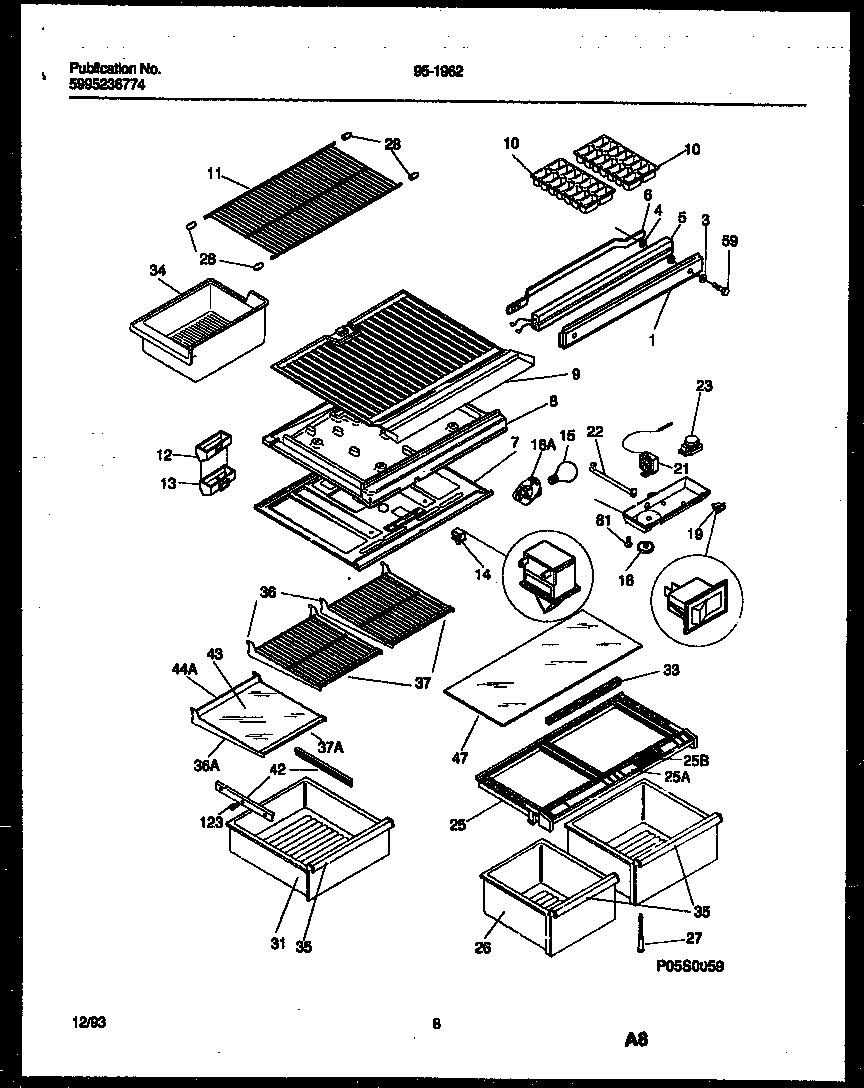

95-1962-00-01 05 – SHELVES AND SUPPORTS

95-1962-00-01 05 – SHELVES AND SUPPORTS

Written by

in

95-1962-00-01 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*91917CLIP-CANTILEVER SHLF
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7AWCI 5303001380
7TOP – REFRIGERATOR
8DIVIDER-FOAM
8B3205266 Frigidaire Refrigerator Edge Protector
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303211425
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 3206130
18WCI 5303206678
19SWITCH-ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
25BWCI 5303275621
25ATRIM-CRISPER COVER
25COVER – CRISPER
26WCI 5317663906
26PAN-CRISPER, 11.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 3204521
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
35WCI 5303298324
36SHELF-HALF, CANTILEVER, WIRE, (2)
36AFRAME-HALF SHELF
37ATRIM-HALF SHELF, FRONT
37WCI 5303298325
37BRETAINER-GLASS, (3) (NON-ILLUSTRATED)
42HANGER-PAN/BASKET, RH
42AHANGER-PAN/BASKET, LH
43GLASS-SHELF, MEAT KPR SHELL
44AWCI 5303210045
44BLOCK-SHELF TRIM, REAR
47INSERT-PAN COVER, GLASS
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
