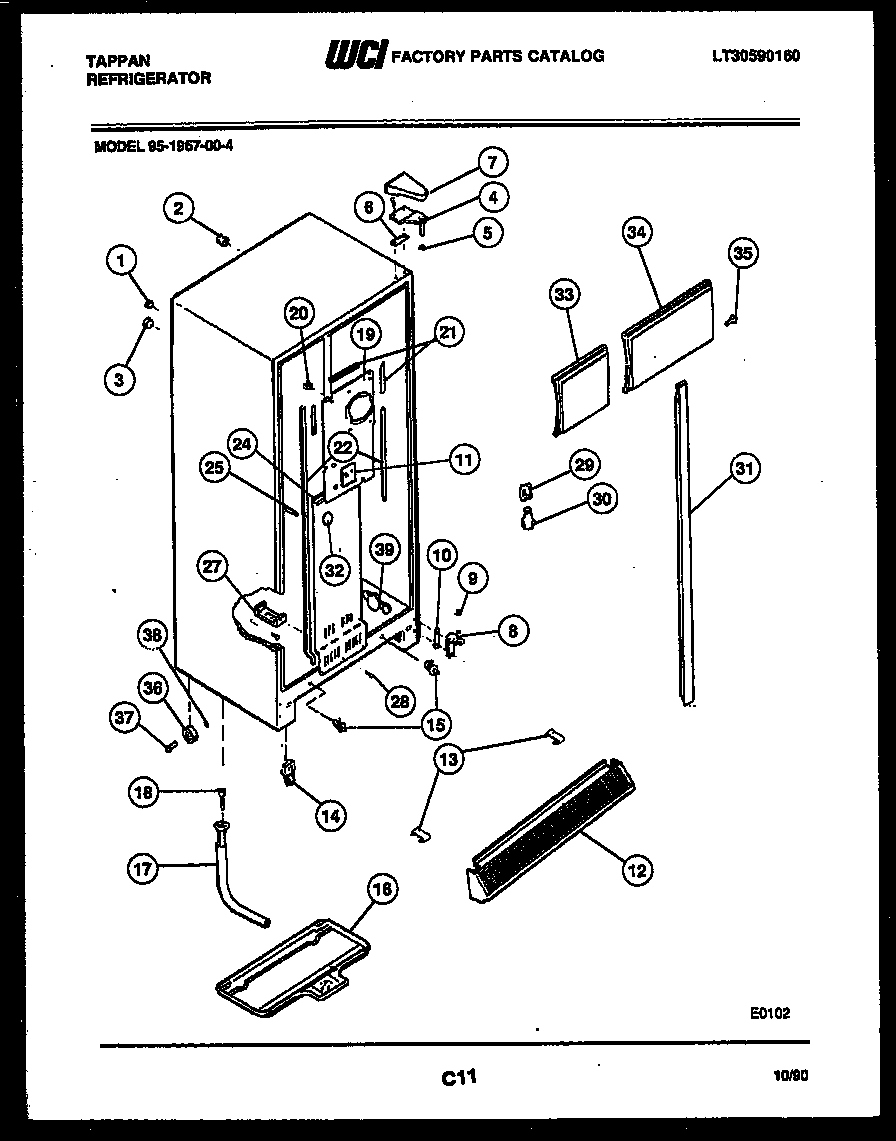

95-1967-00-04 04 – CABINET PARTS

Products

Position	Product
*40337	WCI 3201957
*40337	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001287
2	TUBE-RUBBER
3	WCI 5303001286
4A	WCI 5303001062
4	BRACKET-UPPER HINGE
4B	241710601 Frigidaire Refrigerator Screw
4C	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
5	WCI 5308000186
6	SHIM – UPPER HINGE
7	COVER-UPPER HINGE, WHITE
7	WCI 5303001666
7	COVER-HINGE-AVOCADO
7	COVER – HINGE-WHEAT
7	COVER-UPPER HINGE, ALMOND
8A	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
8	HINGE-BOTTOM
8B	WCI 5303001273
9	WASHER, .28 X .62 X .19, NYLON
10A	WCI 5308000013
10	SHIM-BTM HINGE (3)
10B	WCI 5300077210
11	WCI 3016727
12	WCI 5303016726
13	CLIP-GRILLE
14	ROLLER-FRONT (2)
14A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
15	5303289051 Frigidaire Refrigerator Light Switch
16	WCI 5308000086
17	241957901 Frigidaire Refrigerator Tube-Drain
18	WCI 5308000853
19	WCI 5303006543
19A	NUT-SPEED (2)
20	SUPPORT-COIL COVER
21	WCI 5303001219
22	WCI 5303001233
24	WCI 5308017223
25	WCI 5303001250
27A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
27B	WCI 5303001230
27	WCI 5308000738
28A	WASHER-NYLON,3/16 X 5/8 OD
28	5304455650 Frigidaire Refrigerator Screw
29	218906802 Frigidaire Light Lamp Socket
30	316538904 Frigidaire Oven Lamp Light
31	WCI 3916445
31	WCI 3916446
31	WCI 5303916447
31	WCI 5303916444
31A	WCI 5303001281
31	WCI 5303916448
31A	WCI 5300169100
32	5303208309 Frigidaire Refrigerator Plug Hole
33	WCI 3016709
34	WCI 3016710
35	WCI 5303001213
36	WCI 5303001030
37	WCI 5308000266
38	Nut,push-on
39	DAMPER, MEAT KEEPER
