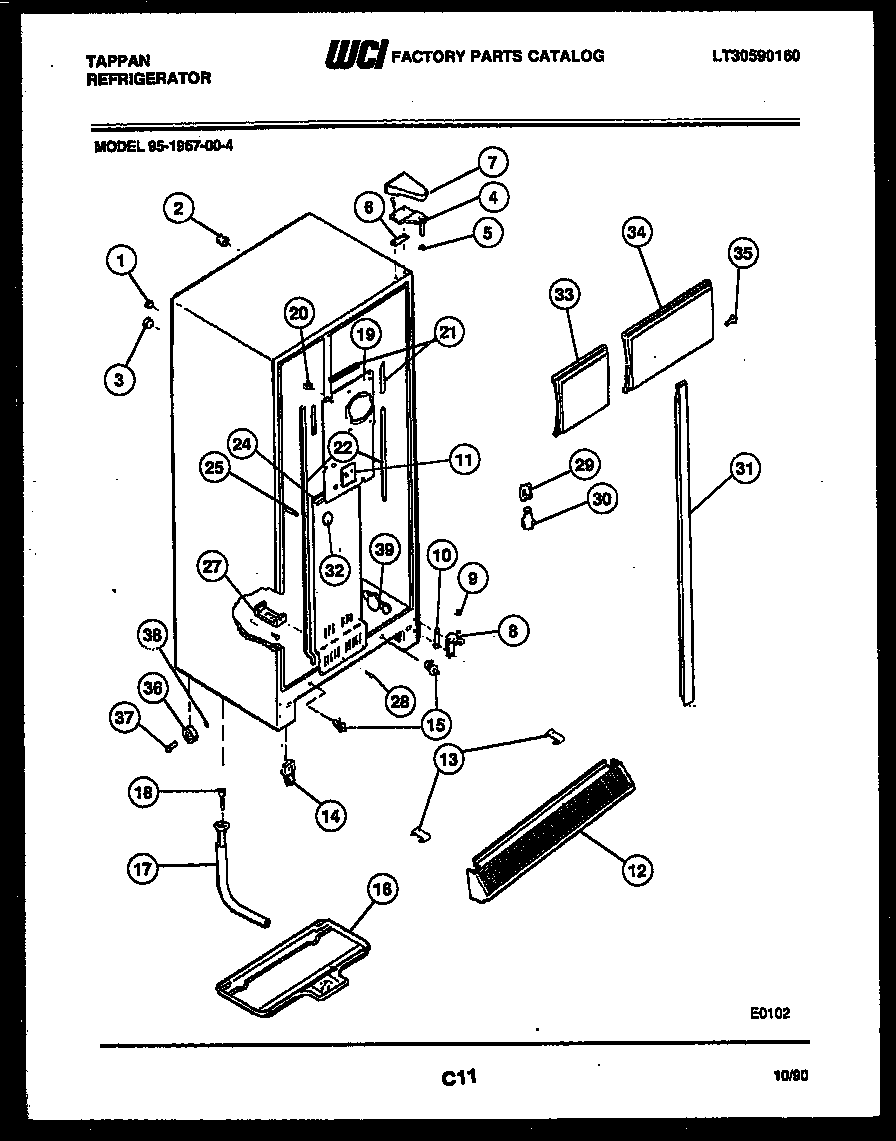

95-1967-23-04 04 – CABINET PARTS

Products

Position	Product
*40337	PLUG, BUTTON, CABINET LINER (NI)
*40337	WCI 3201957
1	WCI 5303001287
2	TUBE-RUBBER
3	WCI 5303001286
4A	WCI 5303001062
4C	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
4B	241710601 Frigidaire Refrigerator Screw
4	BRACKET-UPPER HINGE
5	WCI 5308000186
6	SHIM – UPPER HINGE
7	COVER-UPPER HINGE, ALMOND
8	HINGE-BOTTOM
8A	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
8B	WCI 5303001273
9	WASHER, .28 X .62 X .19, NYLON
10A	WCI 5308000013
10B	WCI 5300077210
10	SHIM-BTM HINGE (3)
11	WCI 3016727
12	WCI 5303016726
13	CLIP-GRILLE
14	ROLLER-FRONT (2)
14A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
15	5303289051 Frigidaire Refrigerator Light Switch
16	WCI 5308000086
17	241957901 Frigidaire Refrigerator Tube-Drain
18	WCI 5308000853
19A	NUT-SPEED (2)
19	WCI 5303006543
20	SUPPORT-COIL COVER
21	WCI 5303001219
22	WCI 5303001233
24	WCI 5308017223
25	WCI 5303001250
27	WCI 5308000738
27B	WCI 5303001230
27A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
28	5304455650 Frigidaire Refrigerator Screw
28A	WASHER-NYLON,3/16 X 5/8 OD
29	218906802 Frigidaire Light Lamp Socket
30	316538904 Frigidaire Oven Lamp Light
31	WCI 5303916448
31A	WCI 5300169100
31A	WCI 5303001281
32	5303208309 Frigidaire Refrigerator Plug Hole
33	WCI 3016709
34	WCI 3016710
35	WCI 5303001213
36	WCI 5303001030
37	WCI 5308000266
38	Nut,push-on
39	DAMPER, MEAT KEEPER
