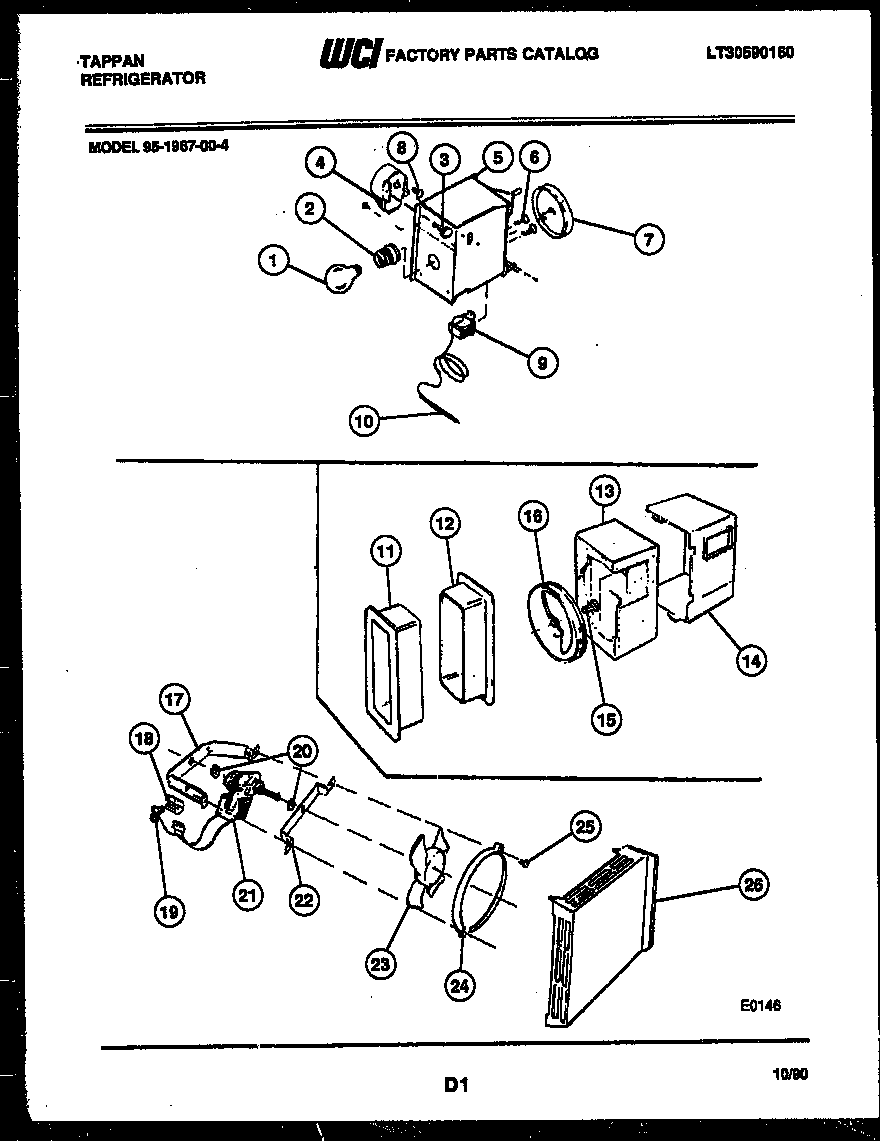

95-1967-23-04 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

95-1967-23-04 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

95-1967-23-04 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
*40342CLIP-WIRING HARNESS
*40341WCI 5303015098
1316538904 Frigidaire Oven Lamp Light
2SOCKET-LIGHT/LAMP
35304455852 Frigidaire Refrigerator Screw
4215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
5WCI 5300189359
5AWCI 5303001280
6WCI 5303001260
7KNOB – TEMPERATURE CONTROL
85304455649 Frigidaire Refrigerator Screw
9WCI 5308000068
10TUBE
11WCI 5303001276
12WCI 5303001277
12AWCI 3001269
13WCI 5308000771
14WCI 5303001252
14A5304455650 Frigidaire Refrigerator Screw
15WCI 5300185373
16WCI 5308010379
17BRACKET-MOTOR MTG, REAR
18WCI 5308000107
20G187559 Frigidaire Refrigerator Bushing
215300158289 Frigidaire Evaporator Fan Motor
22WCI 5303001226
235308000010 Frigidaire Refrigerator Evaporator Fan Blade
24RING-FAN ORIFICE
25218843801 Frigidaire Refrigerator Screw
26WCI 5316465401
