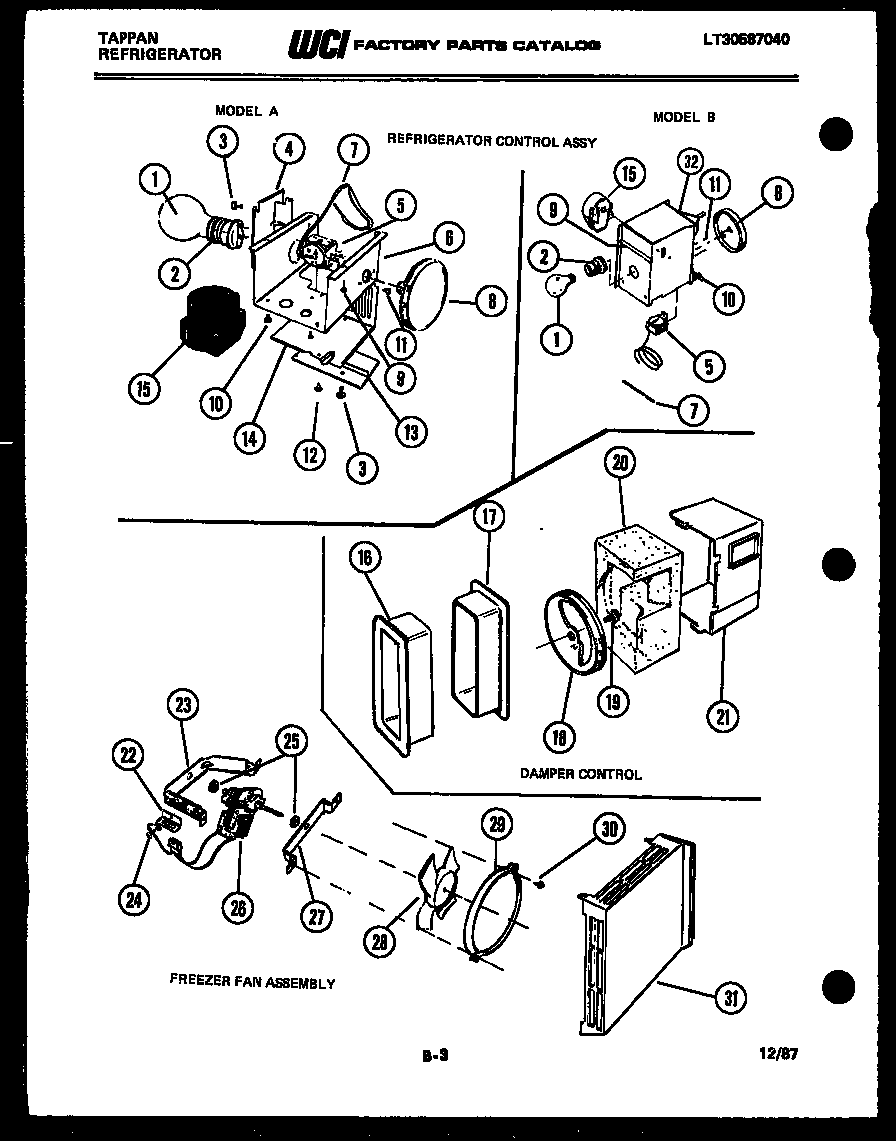

95-1967-45-01 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
*98623WCI 3001256
1316538904 Frigidaire Oven Lamp Light
2WCI 3001267
3WCI 3001255
4WCI 3001266
5WCI 3006112
6WCI 3001264
7TUBE
8WCI 3001265
95304455852 Frigidaire Refrigerator Screw
105304455649 Frigidaire Refrigerator Screw
11SCREW-MOUNTING (NON-ILLUSTRATED)
125308000039 Frigidaire Refrigerator Screw
13WCI 3001261
14WCI 3001262
15215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16WCI 3001276
17WCI 3001277
17AWCI 3001280
18WCI 3001254
19WCI 3001253
20WCI 3001251
21WCI 3001252
22BRACKET-CONNECTOR
23WCI 3001227
245304455651 Frigidaire Refrigerator Screw
25G187559 Frigidaire Refrigerator Bushing
265300158289 Frigidaire Evaporator Fan Motor
27WCI 3001226
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29WCI 3001217
305304455650 Frigidaire Refrigerator Screw
31WCI 3006341
