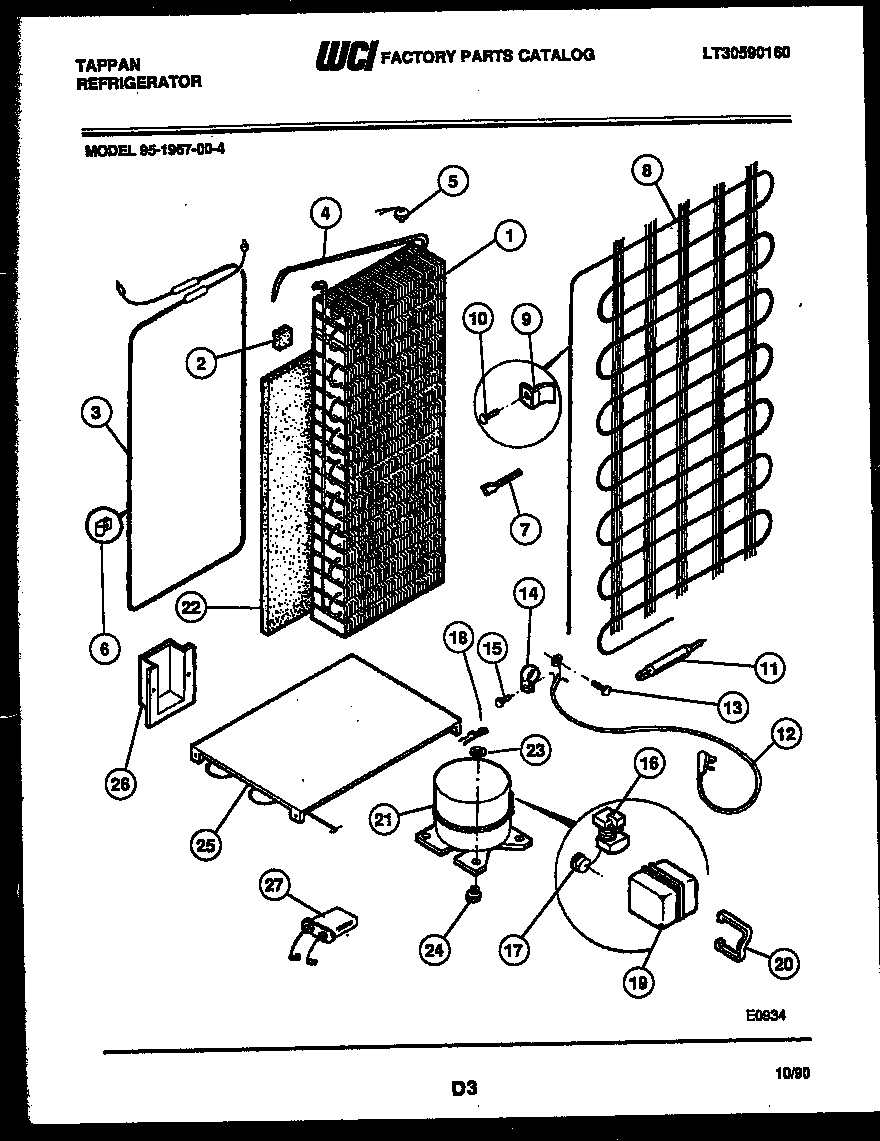

95-1967-57-04 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 3206421
1ATUBE-INLET (NOT ILLUSTRATED)
1BWCI 5308009619
2WCI 5308000828
3WCI 5303007568
4WCI 5308017565
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI 5308002777
75308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8WCI 5308017228
9BRACKET, MOUNTIN, CONDENSER, (4)
10AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
105308000039 Frigidaire Refrigerator Screw
115303305677 Frigidaire Replacement Filter Dryer Filters
11A5308000133 Frigidaire Refrigerator Clamp
11B218843801 Frigidaire Refrigerator Screw
12CORD-ELECTRIC POWER
155304455651 Frigidaire Refrigerator Screw
16RELAY-TL
175303271616 Frigidaire Refrigerator P1-Overload
18CLIP – COMPRESSOR MTG
205303006412 Frigidaire Refrigerator Cover Mounting Strap
21WCI 5308950223
22WCI 5303001235
23WASHER-COMPR MTG
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 5300188724
26AWCI 5303001231
26BWCI 5308009616
26DWCI 5300189379
26E5303001199 Frigidaire Refrigerator Wiring Harness Clamp
26WCI 5303001197
26CCLIP-CABLE
27CAPACITOR
