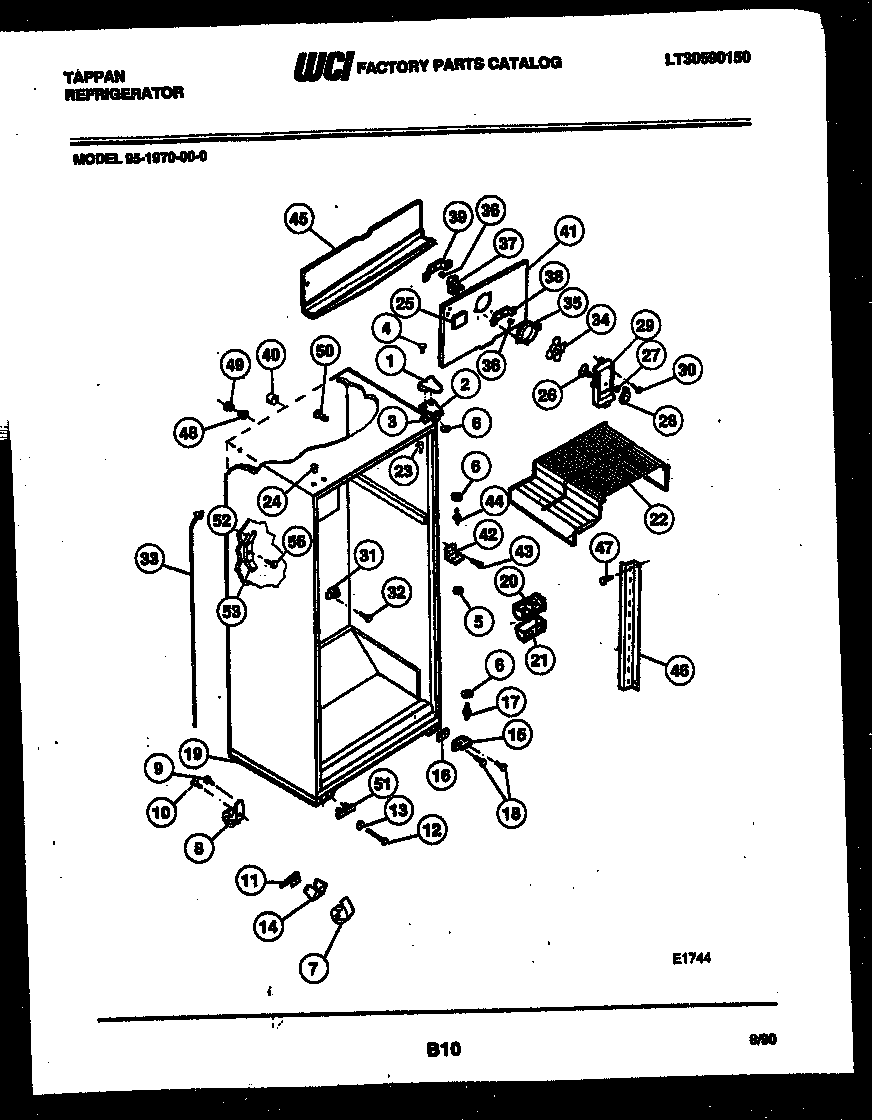

95-1970-00-00 03 – CABINET PARTS

95-1970-00-00 03 – CABINET PARTS

Written by

in

95-1970-00-00 03 – CABINET PARTS

Products

PositionProduct
*38505PLUG, BUTTON, CABINET LINER (NI)
*38504EXTENSION, AIR DEFLECTOR, WITH INSULATION
1COVER – HINGE-WHEAT
1COVER-UPPER HINGE, WHITE
1COVER-HINGE-AVOCADO
1COVER-UPPER HINGE, ALMOND
1WCI 5303001666
2BRACKET-UPPER HINGE
2ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
3SHIM – UPPER HINGE
5WASHER, .34 X .62 X .05, NYLON
6WASHER, .28 X .62 X .19, NYLON
7WCI 5308009760
8BWCI 5308003584
8WCI 5308009773
8ASCREW-LEVELING (4)
95304455651 Frigidaire Refrigerator Screw
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
11WCI 5308009790
12BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
13WCI 5308011326
14SUPPORT, BASE (2)
15HINGE BRACKET – BOTTOM
16SHIM-LOWER HINGE
175303001321 Frigidaire Refrigerator Lower Hinge Pin
18241710601 Frigidaire Refrigerator Screw
19CABINET BASE
20DEFLECTRO, AIR, W/SEAL
20A5303001449 Frigidaire Refrigerator Seal
21WCI 5303001448
22SHELF-FREEZER STEP
23TRIM-CABINET CORNER, WHITE
23TRIM-CABINET CORNER, ALMOND
23WCI 5303202339
23CORNER
23WCI 5303202338
24PLUG-BUTTON, WHITE
24PLUG-BUTTON, ALMOND, UPR HINGE HOLES
24BUTTON-HINGE-AVOCADO
24BUTTON-HINGE-WHEAT
24PLUG, COFFEE
25WCI 3001328
26DAMPER-FAN COVER
27Nut,push-on
28KNOB-DAMPER CONTROL
29WCI 5303001496
31WCI 5308000056
32WCI 5303001361
33AWCI 5303207353
33WCI 5303001458
345308000010 Frigidaire Refrigerator Evaporator Fan Blade
35RING-FAN ORIFICE
36G187559 Frigidaire Refrigerator Bushing
375300158289 Frigidaire Evaporator Fan Motor
38WCI 5303001226
39B218843801 Frigidaire Refrigerator Screw
39AWCI 5308000107
39WCI 5303001227
40TUBE-RUBBER
41WCI 5308009771
41CNUT-SPEED (2)
41BWCI 5303203044
41A5304455650 Frigidaire Refrigerator Screw
42BRACKET-CTR HINGE
43WCI 5308012258
44WCI 5308000184
45WCI 5303001470
46CHANNEL, RH & LH
475304455852 Frigidaire Refrigerator Screw
48WCI 5303001286
49WCI 5303001287
50SUPPORT-COIL COVER
51COVER-HOLE, LOWER HINGE
52DUCT-MEAT KEEPER (UPPER)
53AINSULATION-AIR DUCT, LOWER
53DUCT-MEAT KEEPER, LOWER
53DLABEL-MEAT KPR DUCT
53BINSULATION-AIR DUCT, UPPER
53CCONTROL-DAMPER, MEAT KPR DUCT
56WCI 5308016568
