95-1970-00-00 04 – SHELVES AND SUPPORTS

95-1970-00-00 04 – SHELVES AND SUPPORTS

Written by

in

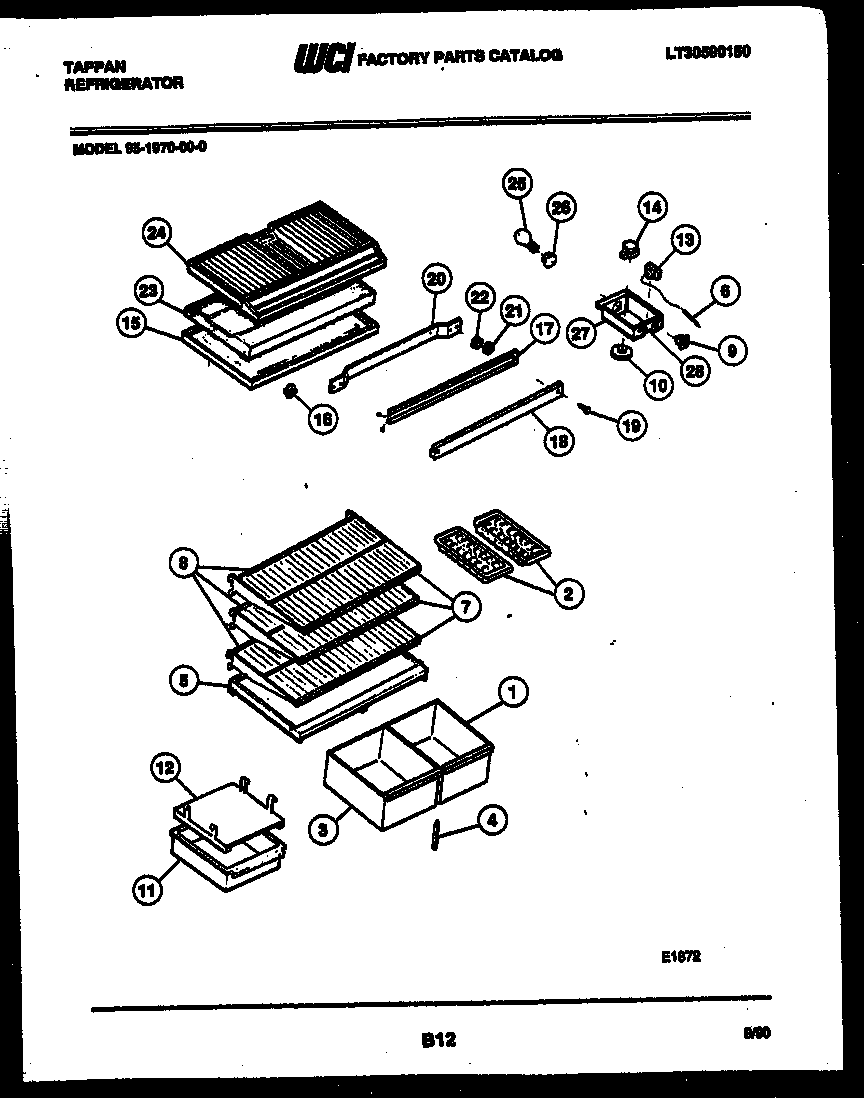

95-1970-00-00 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1PAN-CRISPER, RH
2215667501 Frigidaire Refrigerator Ice Tray Primary
3PAN-CRISPER, LH
4SUPPORT-CRISPER CVR, ADJUSTABLE
5WCI 5303001493
6TUBE
7TRIM-REFR SHELF, SNAP-ON, FRONT, (3)
8SHELF-CANTILEVER, REFR, (3)
9SWITCH-ENERGY SAVER, SLIDE TYPE
10KNOB-CONTROL
11WCI 5303001494
12WCI 5308000263
13WCI 5308015762
13AWCI 5303001260
14215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
14A5304455649 Frigidaire Refrigerator Screw
15TOP PANEL-REFR, W/SNAP BUSHING
15AWCI 5303001380
165309918806 Frigidaire Refrigerator Light Switch Door
17WCI 5308002662
18WCI 5303200368
18WCI 5303200367
18WCI 5303200369
18WCI 5303200370
18WCI 5303200366
19WCI 5308012258
20WCI 5308010008
21WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
22SPACER-MULLION MTG, STEEL
23DIVIDER, STYROFOAM
23AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
24WCI 5303001505
25316538904 Frigidaire Oven Lamp Light
26SOCKET-LIGHT/LAMP
27CONTROL BOX
28LABEL-CONTROL BOX
