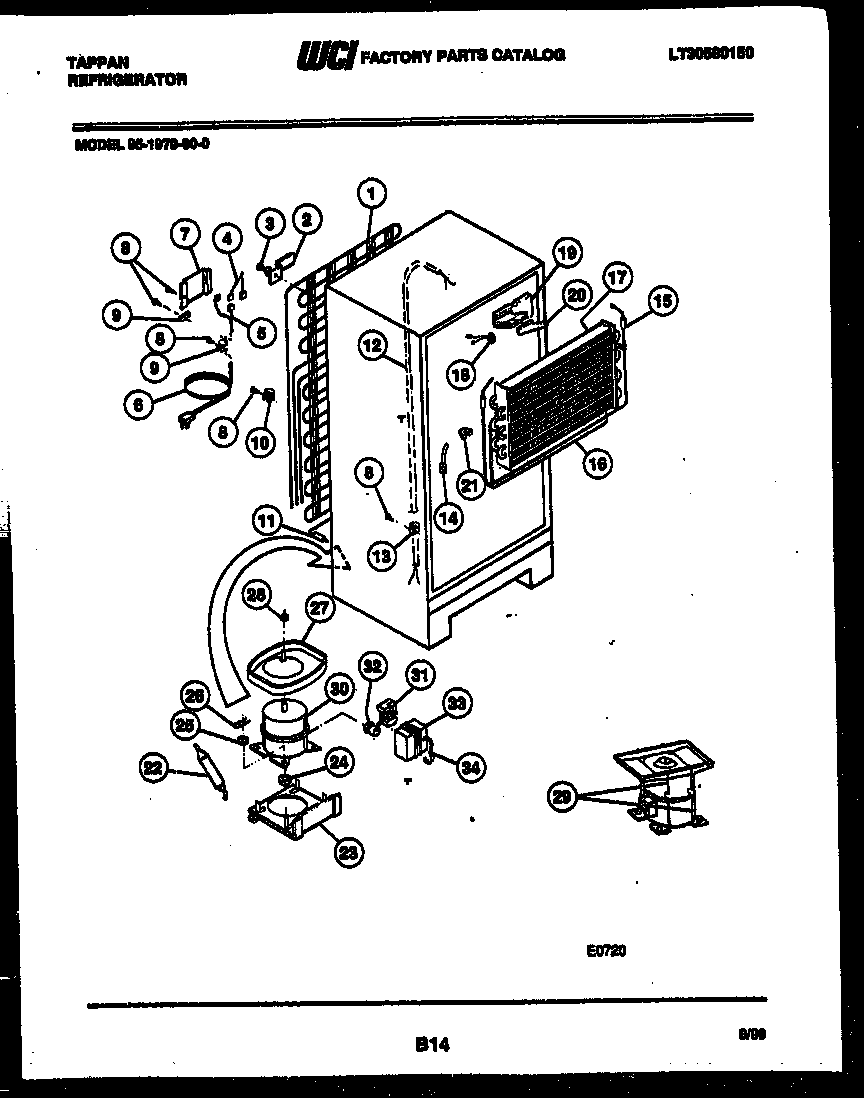

95-1970-57-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

95-1970-57-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

95-1970-57-00 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*38511HOT TUBE REPAIR KIT-SERVICE
*38511CAPACITOR
1WCI 5300163133
2BRACKET, MOUNTIN, CONDENSER, (4)
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6CORD-ELECTRIC POWER
7WCI 5303001197
85304455651 Frigidaire Refrigerator Screw
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
115303017691 Frigidaire Refrigerator Spacer-Tube
12WCI 5308000728
135308000133 Frigidaire Refrigerator Clamp
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
155317842502 Frigidaire Defrost Heater
16INSULATOR-EVAP
17WCI 5300162506
185303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
19INSULATION BLOCK, RH
20INSULATION PLUG, RH
21INSULATION BLOCK, LH
225303305677 Frigidaire Replacement Filter Dryer Filters
23WCI 5308013663
24218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WASHER-COMPR MTG
26CLIP – COMPRESSOR MTG
27PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
28Nut,lock `1/4-20 ,drain pan mtg
29PAN RETAINER KIT, SERVICE
30COMPRESSOR W/ ELEC
31RELAY-TL
32WCI 5303001713
345303006412 Frigidaire Refrigerator Cover Mounting Strap
