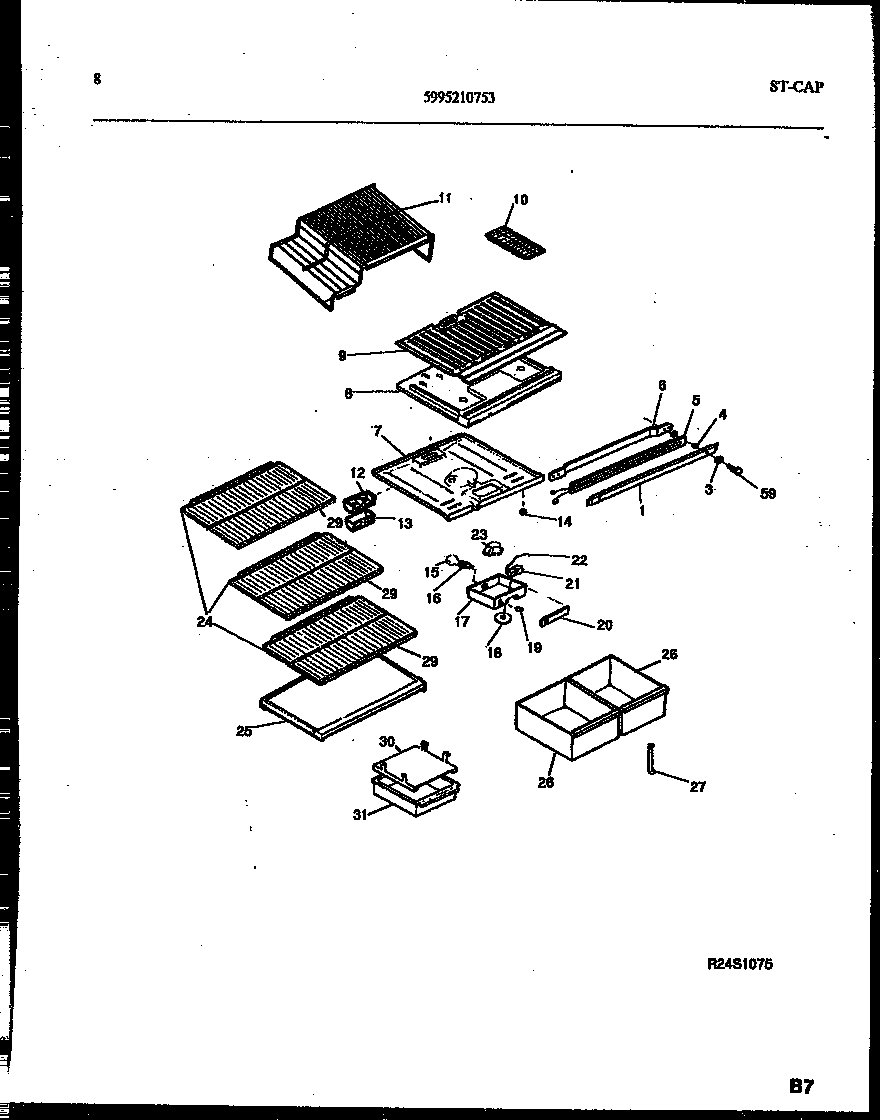

95-1971-23-00 05 – SHELVES AND SUPPORTS

95-1971-23-00 05 – SHELVES AND SUPPORTS

Written by

in

95-1971-23-00 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*563765304455649 Frigidaire Refrigerator Screw
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7AWCI 5303001380
7TOP PANEL-REFR, W/SNAP BUSHING
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER STEP
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17CONTROL BOX
17A5304455650 Frigidaire Refrigerator Screw
18WCI 3001335
19SWITCH-ENERGY SAVER, SLIDE TYPE
20LABEL-CONTROL BOX
21AWCI 5303001260
21WCI 5308015762
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
