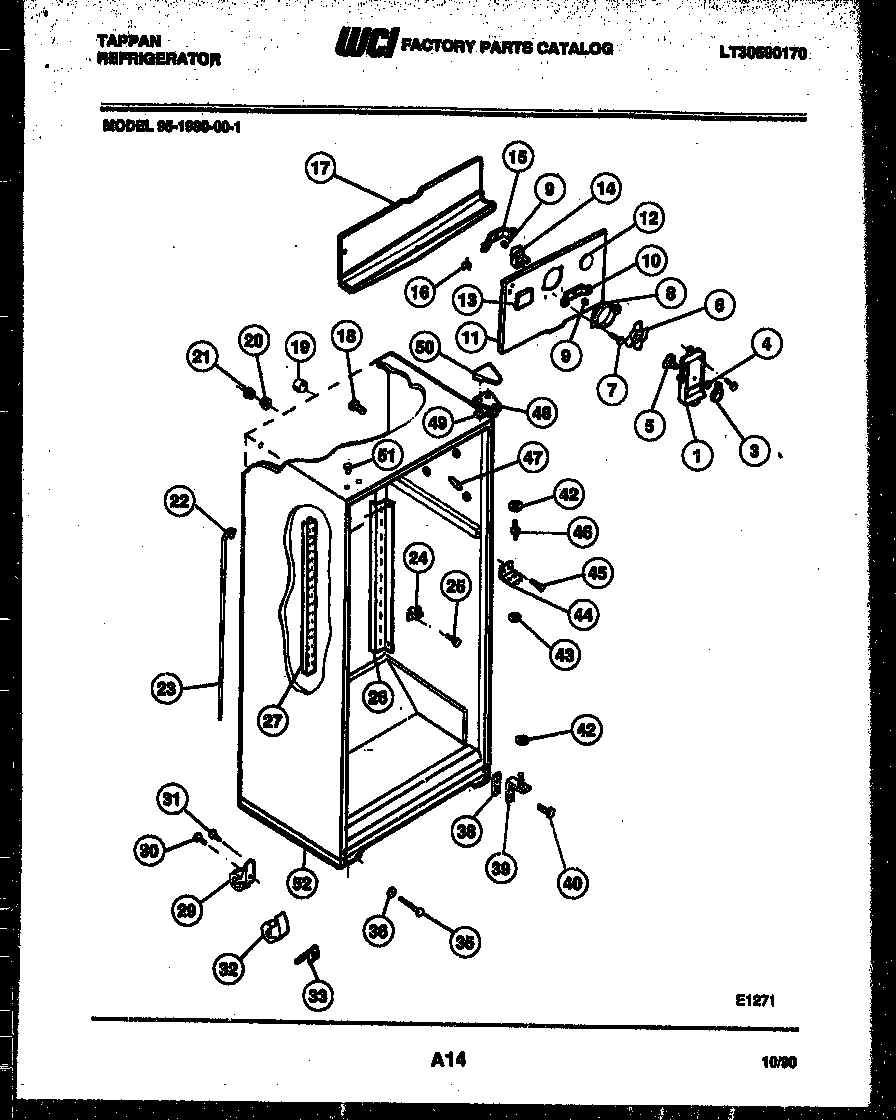

95-1980-00-01 03 – CABINET PARTS

95-1980-00-01 03 – CABINET PARTS

Written by

in

95-1980-00-01 03 – CABINET PARTS

Products

PositionProduct
*41023PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001496
3WCI 5308011762
4Nut,push-on
5DAMPER-FAN COVER
65308000010 Frigidaire Refrigerator Evaporator Fan Blade
7218843801 Frigidaire Refrigerator Screw
8RING-FAN ORIFICE
9G187559 Frigidaire Refrigerator Bushing
10WCI 5303001226
11BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11A5304455650 Frigidaire Refrigerator Screw
11WCI 5308009771
125303208309 Frigidaire Refrigerator Plug Hole
13BUTTON – DECORATIVE PLUG
145300158289 Frigidaire Evaporator Fan Motor
15BRACKET-MOTOR MTG, REAR
16WCI 5308000107
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22WCI 5303207353
23WCI 5303210377
24WCI 5308000056
25WCI 5303001361
26A5304455852 Frigidaire Refrigerator Screw
26CHANNEL, RH & LH
27WCI 5303015409
27AWCI 5308016568
29WCI 5308009773
30BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
315304455651 Frigidaire Refrigerator Screw
32WCI 5303212490
33WCI 5308009790
35WCI 5303212598
36WCI 5308011326
38WCI 5303212488
39BRACKET-LOWER HINGE, W/ HINGE PIN
40241710601 Frigidaire Refrigerator Screw
42BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
42ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
42WASHER, .34 X .62 X .05, NYLON
43WCI 5308000186
44BRACKET-CTR HINGE
45WCI 5308012258
46WCI 5308000184
47TRIM-CABINET CORNER, WHITE
47WCI 5303202338
47TRIM-CABINET CORNER, ALMOND
48BRACKET-UPPER HINGE
48BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
49SHIM – UPPER HINGE
50COVER – HINGE-WHEAT
50COVER-UPPER HINGE, WHITE
50COVER-UPPER HINGE, ALMOND
51BUTTON-HINGE-WHEAT
51PLUG-BUTTON, ALMOND, UPR HINGE HOLES
51PLUG-BUTTON, WHITE
52WCI 5303212487
