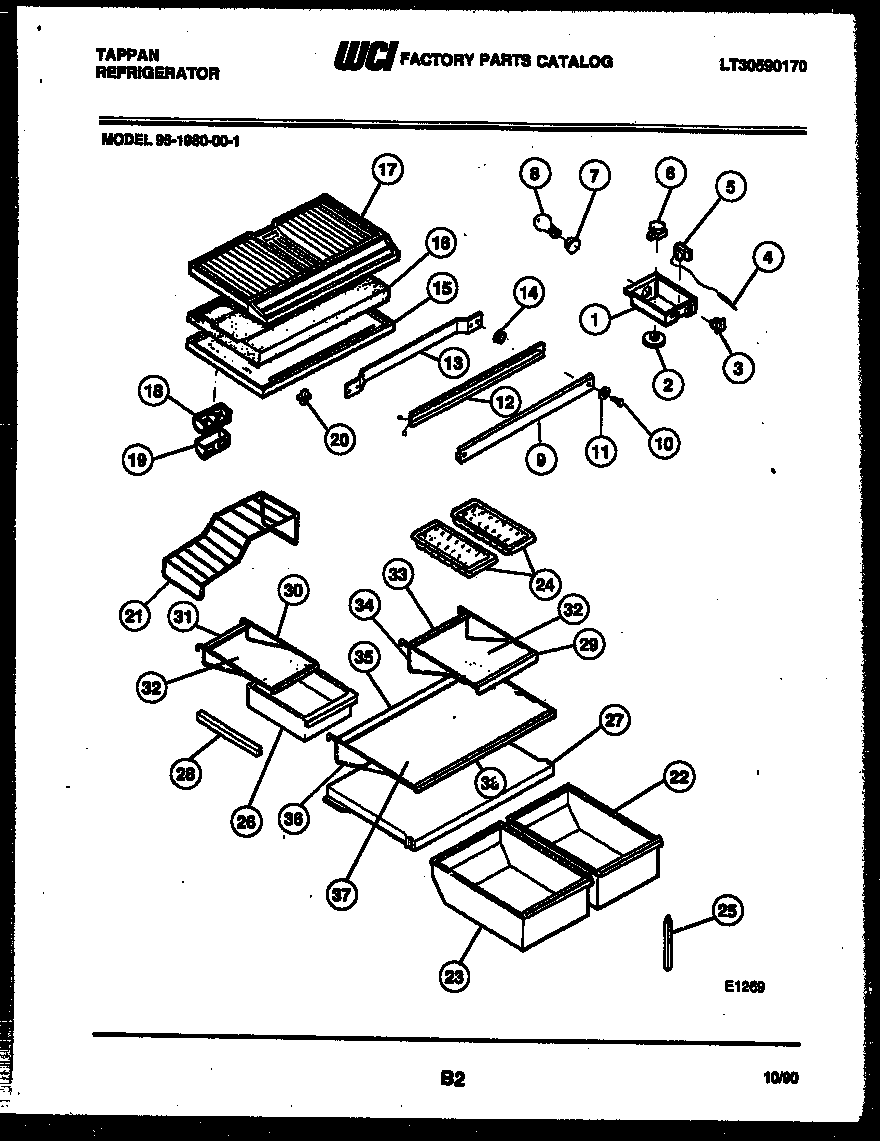

95-1980-23-01 04 – SHELVES AND SUPPORTS

95-1980-23-01 04 – SHELVES AND SUPPORTS

Written by

in

95-1980-23-01 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1B5304455650 Frigidaire Refrigerator Screw
1CONTROL BOX
1ALABEL-CONTROL BOX
2KNOB-CONTROL
3SWITCH-ENERGY SAVER, SLIDE TYPE
4TUBE
5AWCI 5303001260
5WCI 5303200810
6A5304455649 Frigidaire Refrigerator Screw
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7SOCKET-LIGHT/LAMP
8316538904 Frigidaire Oven Lamp Light
9WCI 5303200370
10WCI 5308012258
11WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
12WCI 5303210351
13WCI 5308010008
14SPACER-MULLION MTG, STEEL
15TOP PANEL-REFR, W/SNAP BUSHING
15AWCI 5303001380
16AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
16DIVIDER, STYROFOAM
17WCI 5303211427
18DEFLECTOR-AIR
19COVER – AIR DEFLECTOR
205309918806 Frigidaire Refrigerator Light Switch Door
21SHELF-FREEZER STEP
22PAN-CRISPER, RH
23PAN-CRISPER, LH
24215667501 Frigidaire Refrigerator Ice Tray Primary
25SUPPORT-CRISPER CVR, ADJUSTABLE
26WCI 5303015407
27WCI 5303001493
28BWCI 08014528
28AHANGER-PAN RH (NON-ILLUSTRATED)
28HANGER-PAN LH
29WCI 3015408
30WCI 3015290
31WCI 3201126
32WCI 3015411
33WCI 3201127
34WCI 3015410
35WCI 3201129
36WCI 3015406
37WCI 3001433
38TRIM-REFR SHELF, SNAP-ON, FRONT, (3)
