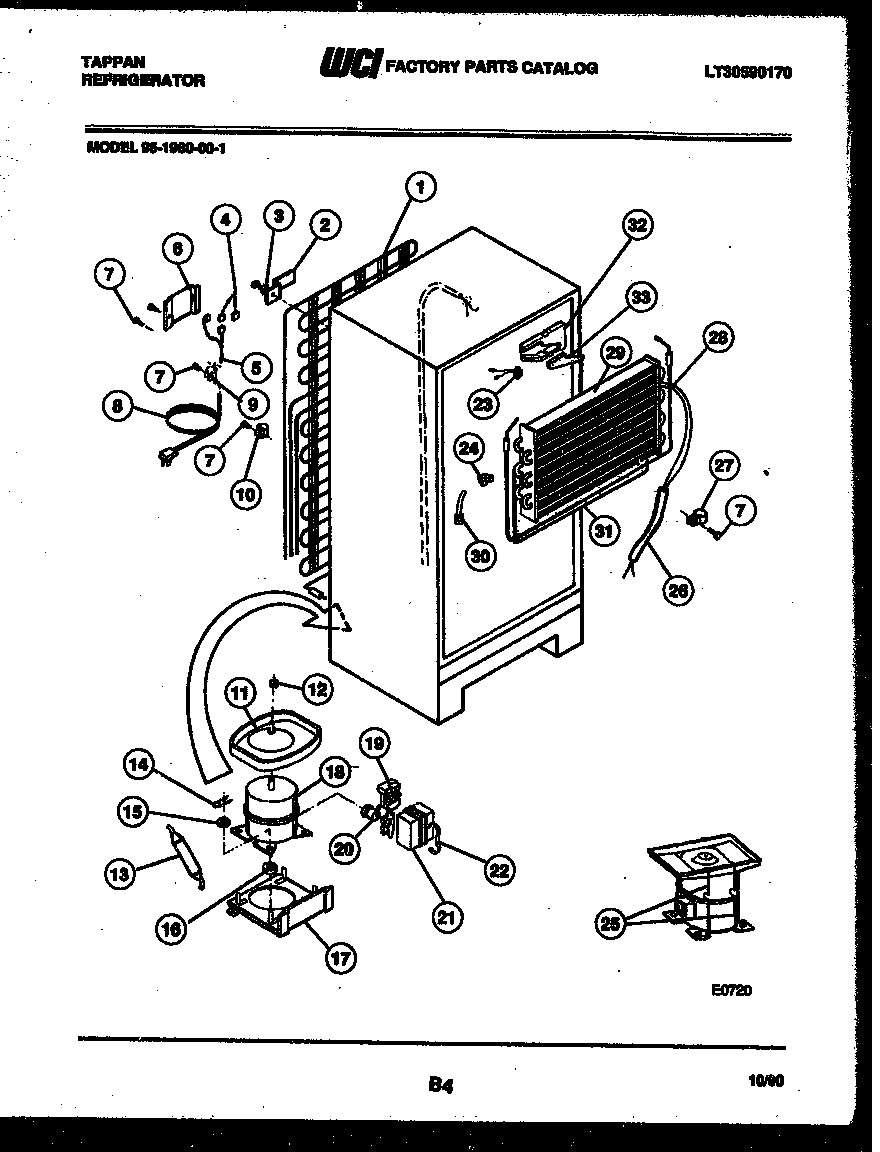

95-1980-23-01 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

95-1980-23-01 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

95-1980-23-01 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*41037CAPACITOR
*41037HOT TUBE REPAIR KIT-SERVICE
1WCI 5300163133
2BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2ASPACER-COND TUBE,BLACK
2BRACKET, MOUNTIN, CONDENSER, (4)
35308000039 Frigidaire Refrigerator Screw
4HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
5WIRING HARNESS, COMPRESSOR,
6WCI 5303001197
75304455651 Frigidaire Refrigerator Screw
8CORD-ELECTRIC POWER
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
11A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
11PAN-DEFROST DRAIN, ORIG/SVCE COMPR
12Nut,lock `1/4-20 ,drain pan mtg
135303305677 Frigidaire Replacement Filter Dryer Filters
14CLIP – COMPRESSOR MTG
15WASHER-COMPR MTG
16218513300 Frigidaire Refrigerator Compressor Mount Grommet
17WCI 5308013663
18COMPRESSOR W/ ELEC
19RELAY-TL
20WCI 5303001713
225303006412 Frigidaire Refrigerator Cover Mounting Strap
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24INSULATION BLOCK, LH
25PAN RETAINER KIT, SERVICE
26WCI 5308000728
275308000133 Frigidaire Refrigerator Clamp
285317842502 Frigidaire Defrost Heater
29WCI 5300162506
305308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
31INSULATOR-EVAP, PLASTIC
32INSULATION BLOCK, RH
33INSULATION PLUG, RH
