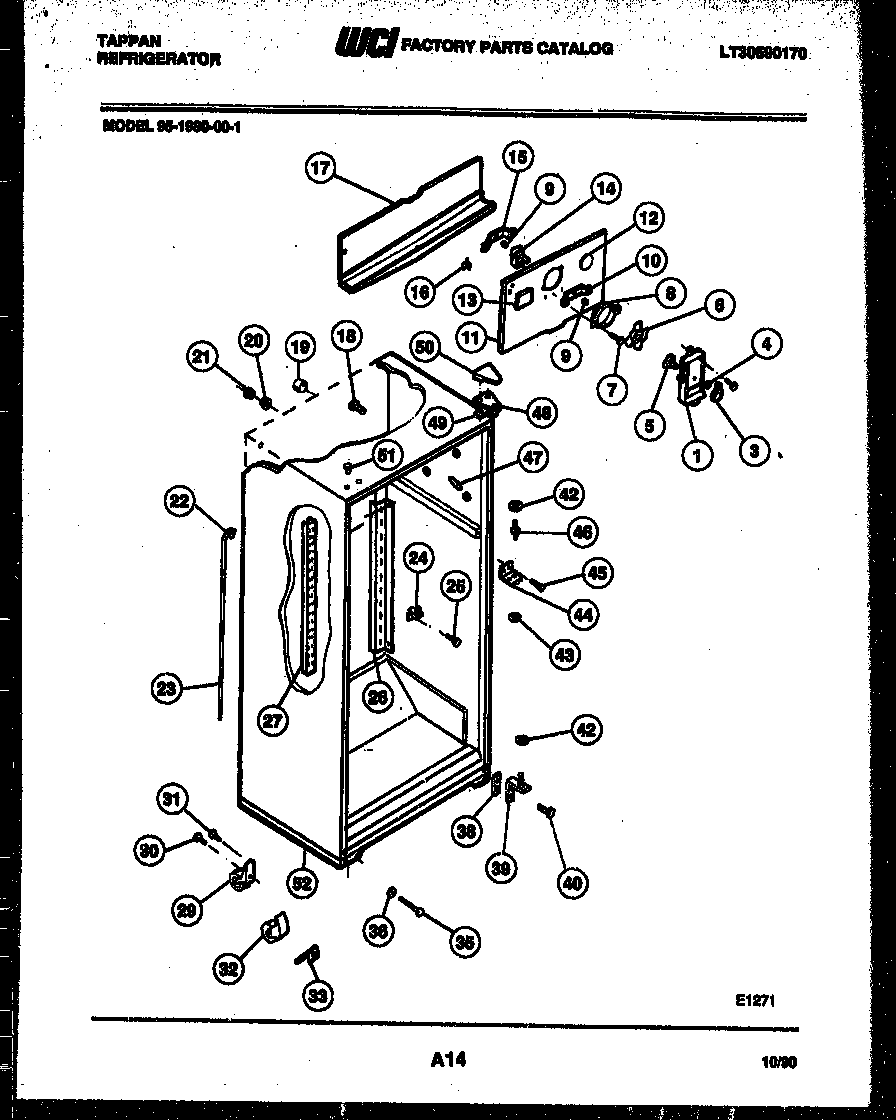

95-1980-66-01 03 – CABINET PARTS

Products

Position	Product
*41023	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001496
3	WCI 5308011762
4	Nut,push-on
5	DAMPER-FAN COVER
6	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	218843801 Frigidaire Refrigerator Screw
8	RING-FAN ORIFICE
9	G187559 Frigidaire Refrigerator Bushing
10	WCI 5303001226
11B	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	WCI 5308009771
11A	5304455650 Frigidaire Refrigerator Screw
12	5303208309 Frigidaire Refrigerator Plug Hole
13	BUTTON – DECORATIVE PLUG
14	5300158289 Frigidaire Evaporator Fan Motor
15	BRACKET-MOTOR MTG, REAR
16	WCI 5308000107
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	WCI 5303207353
23	WCI 5303210377
24	WCI 5308000056
25	WCI 5303001361
26	CHANNEL, RH & LH
26A	5304455852 Frigidaire Refrigerator Screw
27	WCI 5303015409
27A	WCI 5308016568
29	WCI 5308009773
30	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
31	5304455651 Frigidaire Refrigerator Screw
32	WCI 5303212490
33	WCI 5308009790
35	WCI 5303212598
36	WCI 5308011326
38	WCI 5303212488
39	BRACKET-LOWER HINGE, W/ HINGE PIN
40	241710601 Frigidaire Refrigerator Screw
42B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
42A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
42	WASHER, .34 X .62 X .05, NYLON
43	WCI 5308000186
44	BRACKET-CTR HINGE
45	WCI 5308012258
46	WCI 5308000184
47	WCI 5303202338
48	BRACKET-UPPER HINGE
48B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
49	SHIM – UPPER HINGE
50	COVER – HINGE-WHEAT
51	BUTTON-HINGE-WHEAT
52	WCI 5303212487
