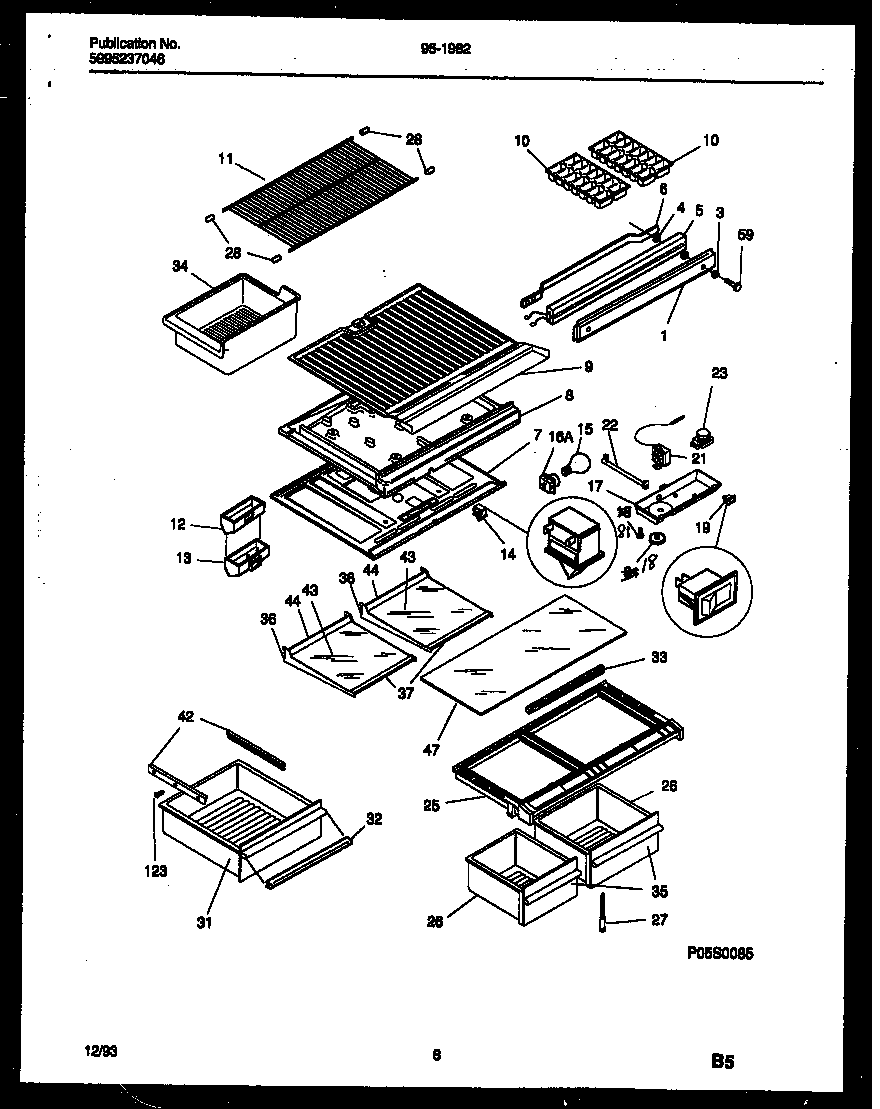

95-1982-00-01 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7AWCI 5303001380
7TOP – REFRIGERATOR
8A3205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
8BHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303211425
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303298339
18WCI 5303206678
19SWITCH-ROCKER
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23WCI 50300187484
23A5304455649 Frigidaire Refrigerator Screw
25BWCI 5303285998
25COVER – CRISPER
25AWCI 5303275621
26WCI 5303284460
26WCI 5303284459
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 5303284466
32WCI 5303285992
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
35WCI 5303285991
35WCI 5303285990
36FRAME-HALF SHELF
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
37TRIM-HALF SHELF, FRONT
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
43GLASS-SHELF, MEAT KPR SHELL
44ALOCK-SHELF TRIM, REAR
44WCI 5303210045
47INSERT-PAN COVER, GLASS
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
123CLIP-CANTILEVER SHLF
