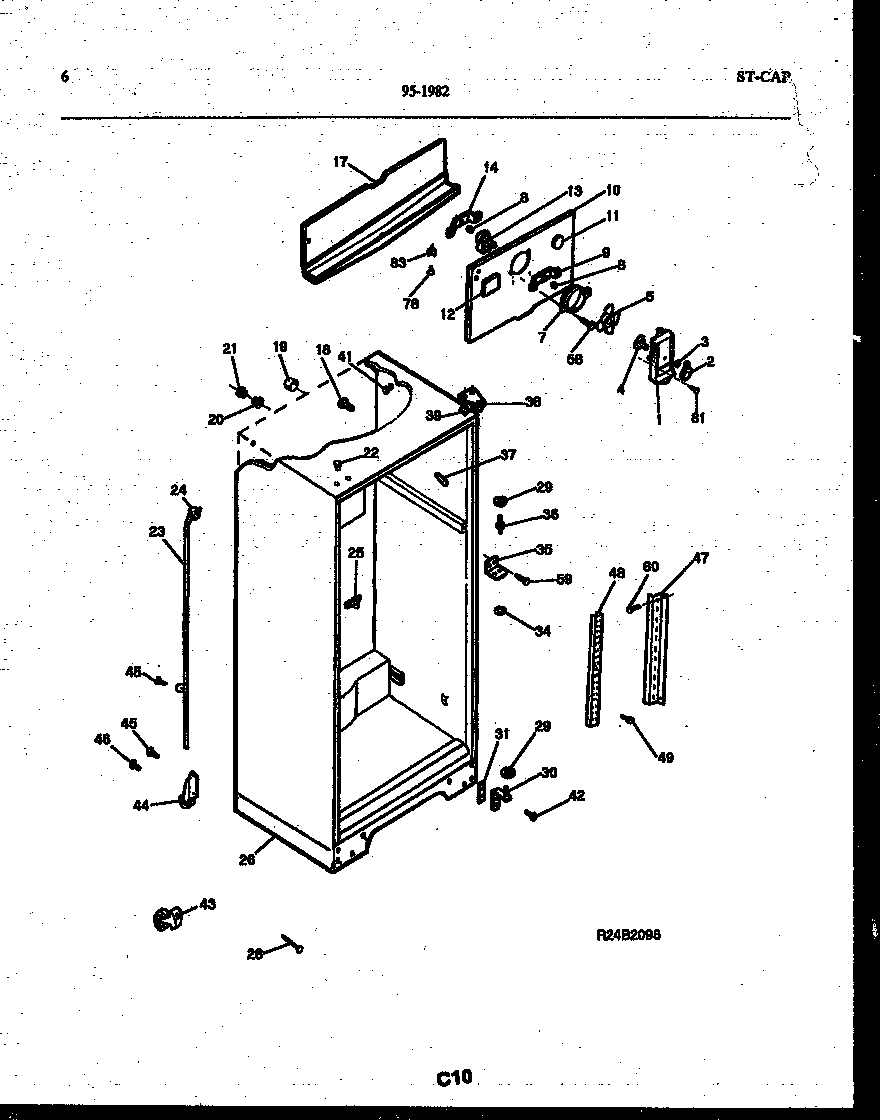

95-1982-23-00 04 – CABINET PARTS

95-1982-23-00 04 – CABINET PARTS

Written by

in

95-1982-23-00 04 – CABINET PARTS

Products

PositionProduct
*70193PLUG, BUTTON, CABINET LINER (NI)
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38BRACKET-UPPER HINGE
39SHIM – UPPER HINGE
415304509705 Frigidaire Refrigerator Grommet
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47CHANNEL, RH & LH
48WCI 3916030
49WCI 5308016568
59WCI 5308012258
605304455852 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
